BM12B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

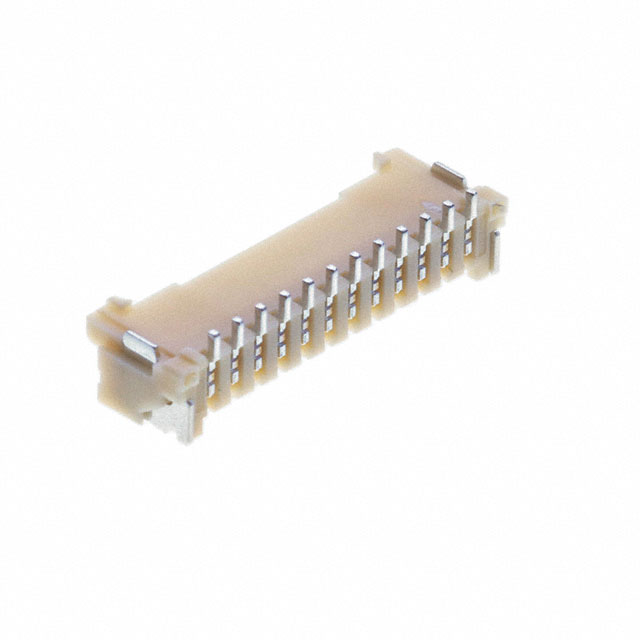

CONN HEADER SMD 12POS 2MM
| Part | Mated Stacking Heights | Contact Material | Shrouding | Mounting Type | Contact Shape | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Connector Type | Fastening Type | Style | Features | Number of Positions Loaded | Contact Type | Insulation Material | Termination | Insulation Color | Number of Rows | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 11.1 mm 16 mm 16.2 mm | Copper Alloy | Shrouded - 4 Wall | Surface Mount | Square | 8.89 mm | 0.35 in | 0.079 " | 2 mm | UL94 V-0 | 12 | 85 °C | -25 °C | Tin | Header | Locking Ramp | Board to Cable/Wire | Board Guide Pick and Place Solder Retention | All | Male Pin | Nylon Polyamide (PA) | Solder | Natural | 1 | 3 A | 250 V |
