M12PFF25 Series

Catalog

PHOTOELECTRIC SENSOR, METAL BARREL, M12 SERIES, 25 MM, FIXED-FIELD, PNP, 10 V TO 30 V

Part	Sensing Distance	Sensing Distance	Ingress Protection	Sensing Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Light Source

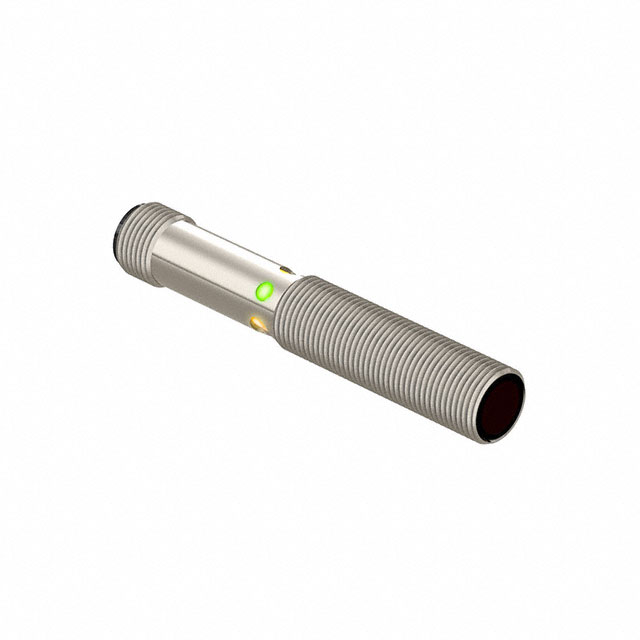

BANNER ENGINEERING M12PFF25Q8	25 mm	0.98 in	IP67 IP68	Background Suppression	500 µs	10 VDC	30 VDC	Connector	PNP - Dark-ON/Light-ON	-20 ░C	60 °C	Red (680nm)

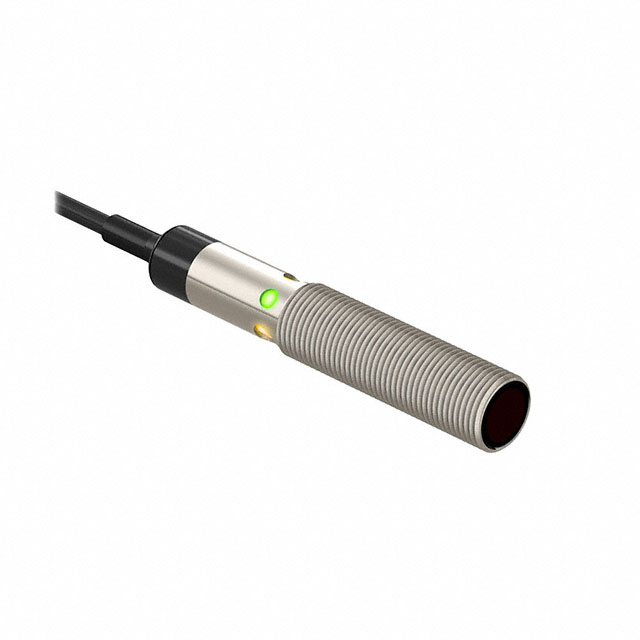

BANNER ENGINEERING M12PFF25Q5	25 mm	0.98 in	IP67 IP68	Background Suppression	500 µs	10 VDC	30 VDC	Connector	PNP - Dark-ON/Light-ON	-20 ░C	60 °C	Red (680nm)
