83P-55 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

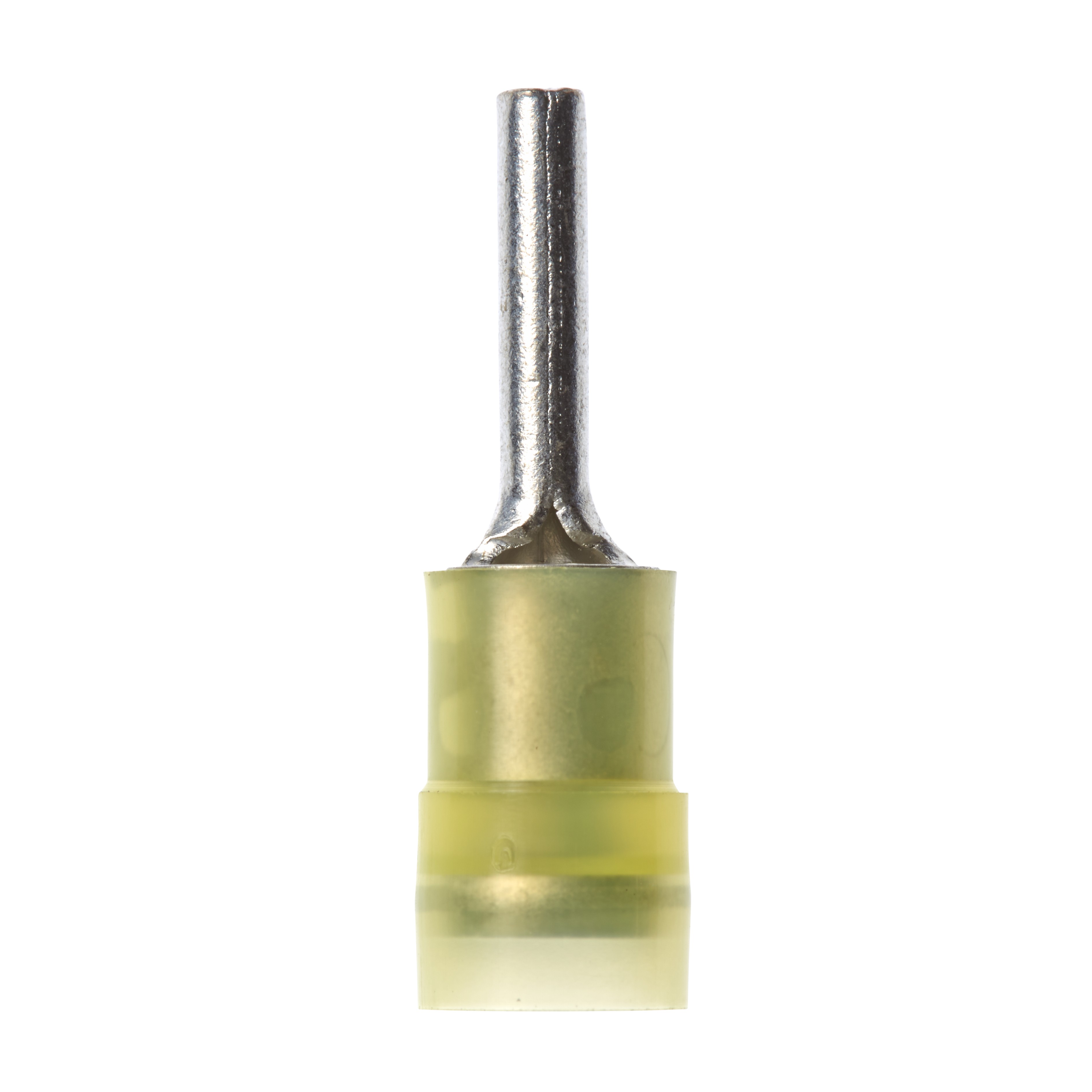

CONN WIRE PIN 10-12AWG SCOTCHLOK
| Part | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Material - Insulation | Length - Termination [x] | Length - Termination [x] | Length - Pin [x] | Length - Pin [x] | Length - Overall | Length - Overall | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Pin Diameter [diameter] | Pin Diameter [diameter] | Insulation | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 0.135 in | 3.43 mm | Nylon Polyamide (PA) | 0.25 in | 6.35 mm | 13.97 mm | 0.55 in | 1.105 " | 28.07 mm | 10 AWG | 12 AWG | 6.35 mm | 0.25 in | 0.11 in | 2.79 mm | Insulated | Yellow | Crimp |
