SMS9PH Series

Catalog

CONN HEADER VERT 9POS 5.08MM

Part	Contact Material	Material Flammability Rating	Number of Positions Loaded	Current Rating	Fastening Type	Termination	Connector Type	Mounting Type	Shrouding	Insulation Material	Contact Type	Style	Insulation Color	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Pitch - Mating	Features	Number of Rows	Number of Positions	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post
Amphenol Aerospace Operations SMS9PH4D28	Copper Alloy	UL94 V-0	All	5 A	Push-Pull	Solder	Header	Through Hole	Shrouded - 4 Wall	Glass Filled Thermoplastic	Male Pin	Board Cable/Wire	Black	Circular	Gold	29.5 Ąin	0.157 in	0.2 in	Mounting Flange	1	9	0.901 in	125 °C	-55 °C

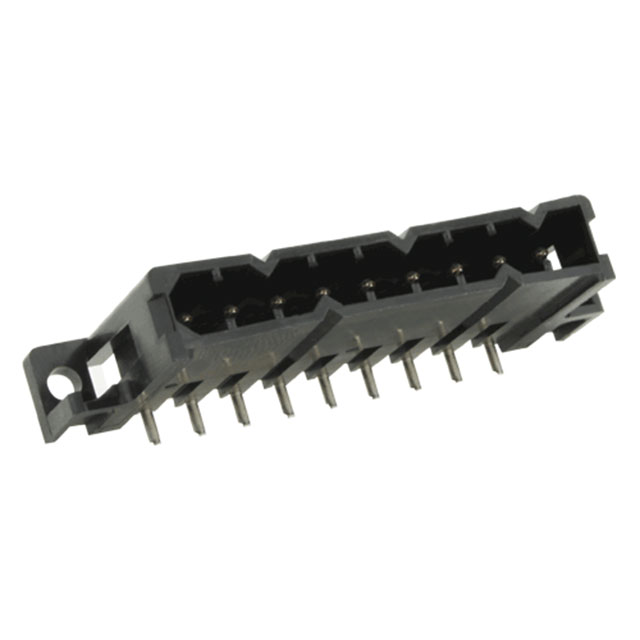

Amphenol Aerospace Operations SMS9PH-3TR29	Copper Alloy	UL94 V-0	All	5 A	Push-Pull	Solder	Header	Right Angle Through Hole	Shrouded - 4 Wall	Glass Filled Thermoplastic	Male Pin	Board Cable/Wire	Black	Circular	Tin	47.2 µin	0.165 in	0.2 in	Mounting Flange	1	9	0.37 in	125 °C	-55 °C	Tin

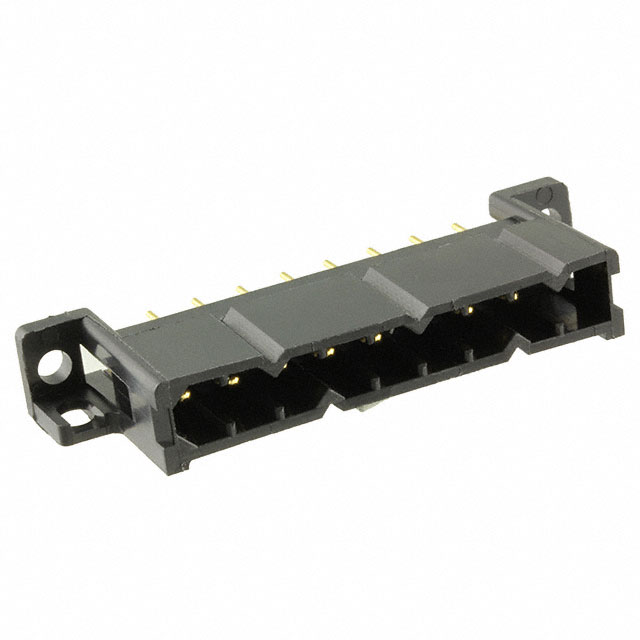

Amphenol Aerospace Operations SMS9PHGE4	Copper Alloy	UL94 V-0	All	7.5 A	Push-Pull	Solder	Header	Through Hole	Shrouded - 4 Wall	Glass Filled Thermoplastic	Male Pin	Board Cable/Wire	Black	Circular	Gold	16 µin	0.165 in	0.2 in	Mounting Flange	1	9	0.37 in	125 °C	-55 °C
