ALCOSWITCH TLS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LS Z SNAP PLUNGER CENTRAL M 4A 1NO + 1NC

Part	Termination Style	Mechanical Life	Current Rating (Amps)	Operating Force	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Mounting Type	Actuator Type	Voltage Rating - AC	Voltage Rating - DC
TE Connectivity AMP Connectors TLSZNS1103SD	Screw Terminal	20000000 Cycles	1A 4A	918 gf	IP65 IP67	80 °C	-30 ░C	Off-Mom On-Mom	DPST-NO/NC	Chassis Mount	Round (Pin Plunger)	240 V	24 V

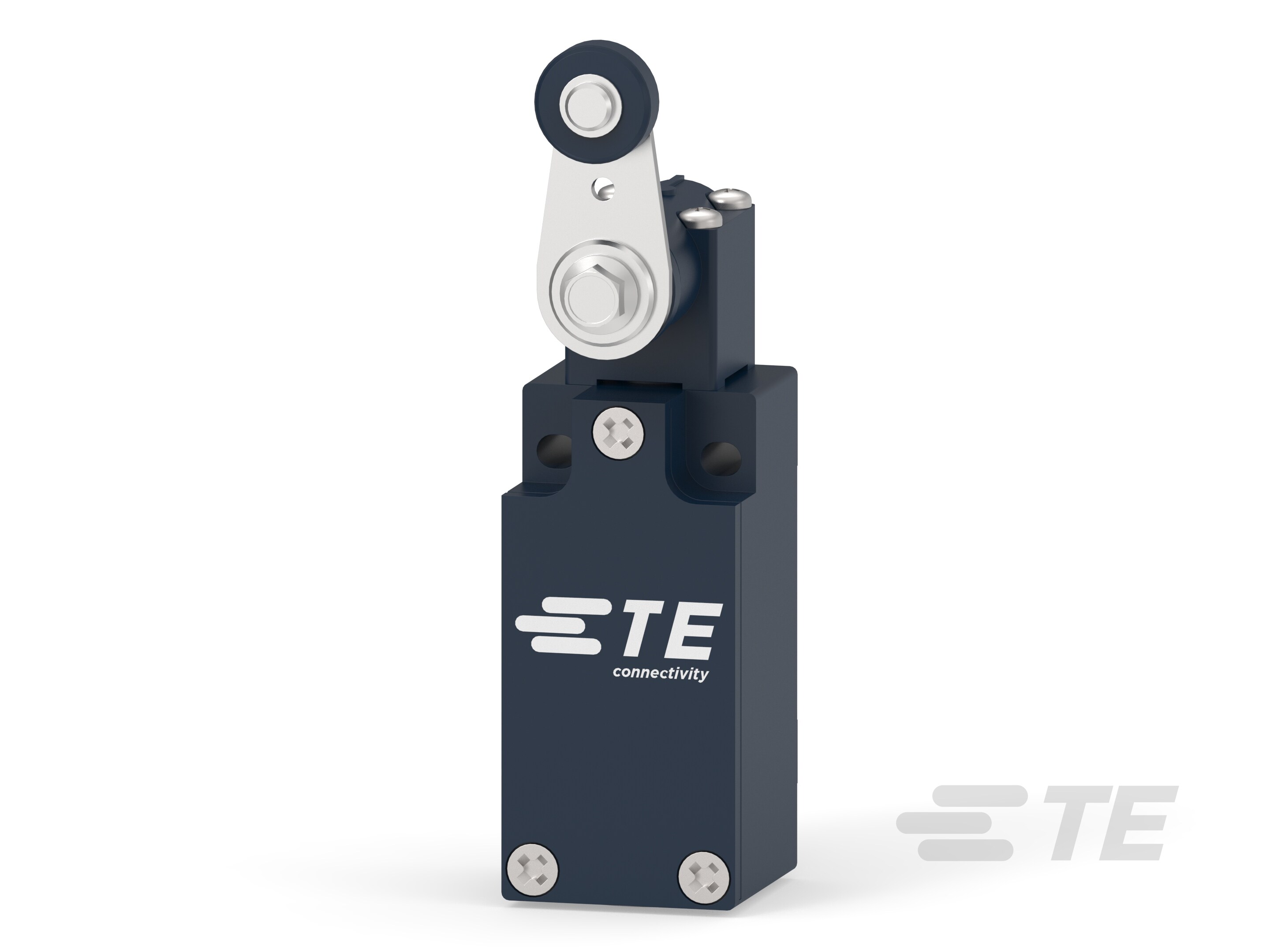

TE Connectivity AMP Connectors TLSZLS0211PB	Screw Terminal	20000000 Cycles	1A 4A	20 gf	IP65 IP67	80 °C	-30 ░C	On-On	DPST-NC	Chassis Mount	Lever Roller	240 V	24 V

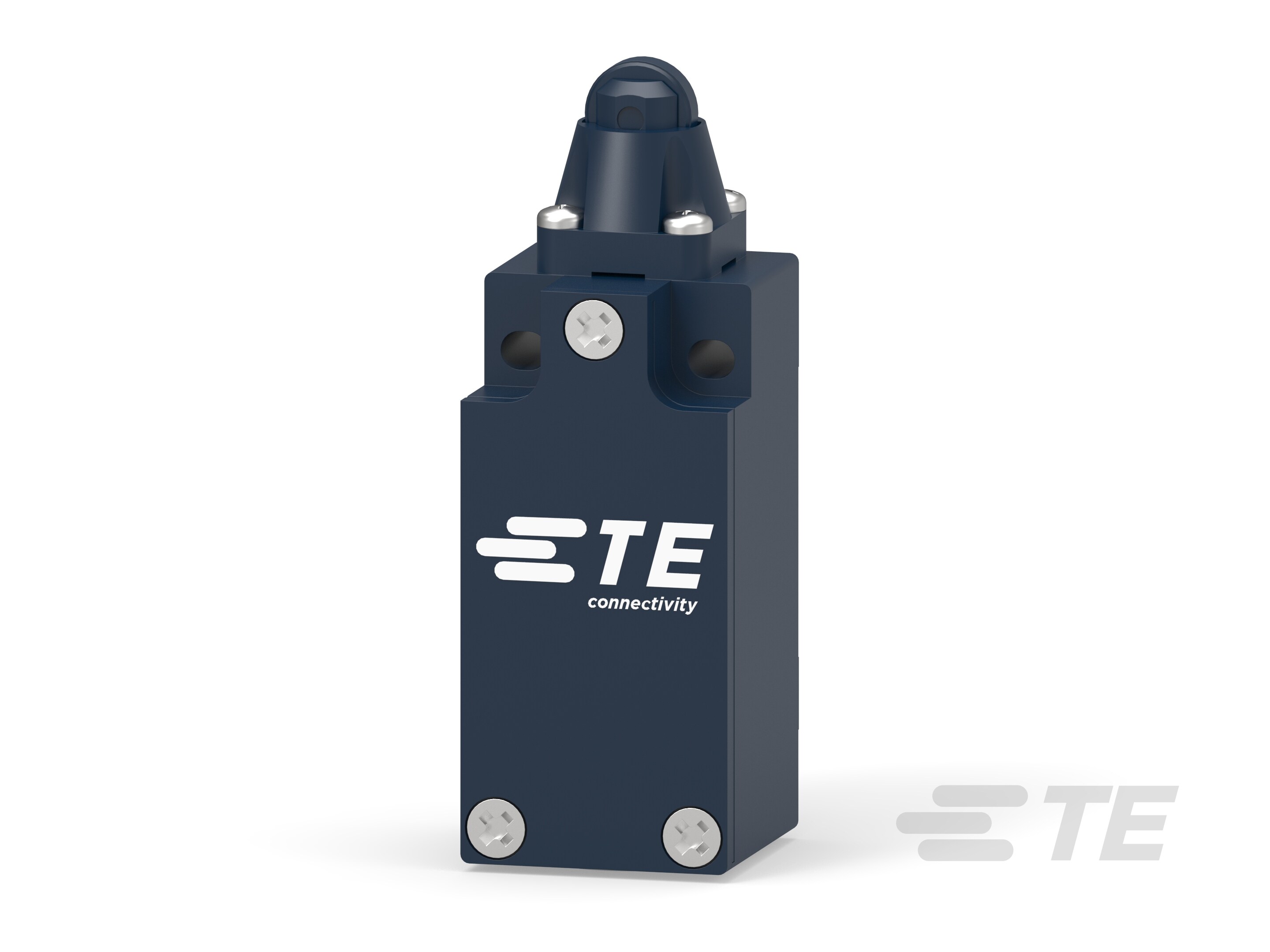

TE Connectivity AMP Connectors TLSZLS1102PD	Screw Terminal	20000000 Cycles	1A 4A	918 gf	IP65 IP67	80 °C	-30 ░C	Off-On On-Off	DPST-NO/NC	Chassis Mount	Roller Plunger	240 V	24 V
TE Connectivity AMP Connectors TLSTNS0214PB	Screw Terminal	20000000 Cycles	1A 4A	20 gf	IP65 IP67	80 °C	-30 ░C	On-Mom	DPST-NC	Chassis Mount	Side Rotary Adjustable Roller	240 V	24 V
TE Connectivity AMP Connectors TLSZNS1113PB	Screw Terminal	20000000 Cycles	1A 4A	20 gf	IP65 IP67	80 °C	-30 ░C	Off-Mom On-Mom	DPST-NO/NC	Chassis Mount	Side Rotary Adjustable Roller	240 V	24 V
TE Connectivity AMP Connectors TLSZLS1103SD	Screw Terminal	20000000 Cycles	1A 4A	918 gf	IP65 IP67	80 °C	-30 ░C	Off-On On-Off	DPST-NO/NC	Chassis Mount	Round (Pin Plunger)	240 V	24 V

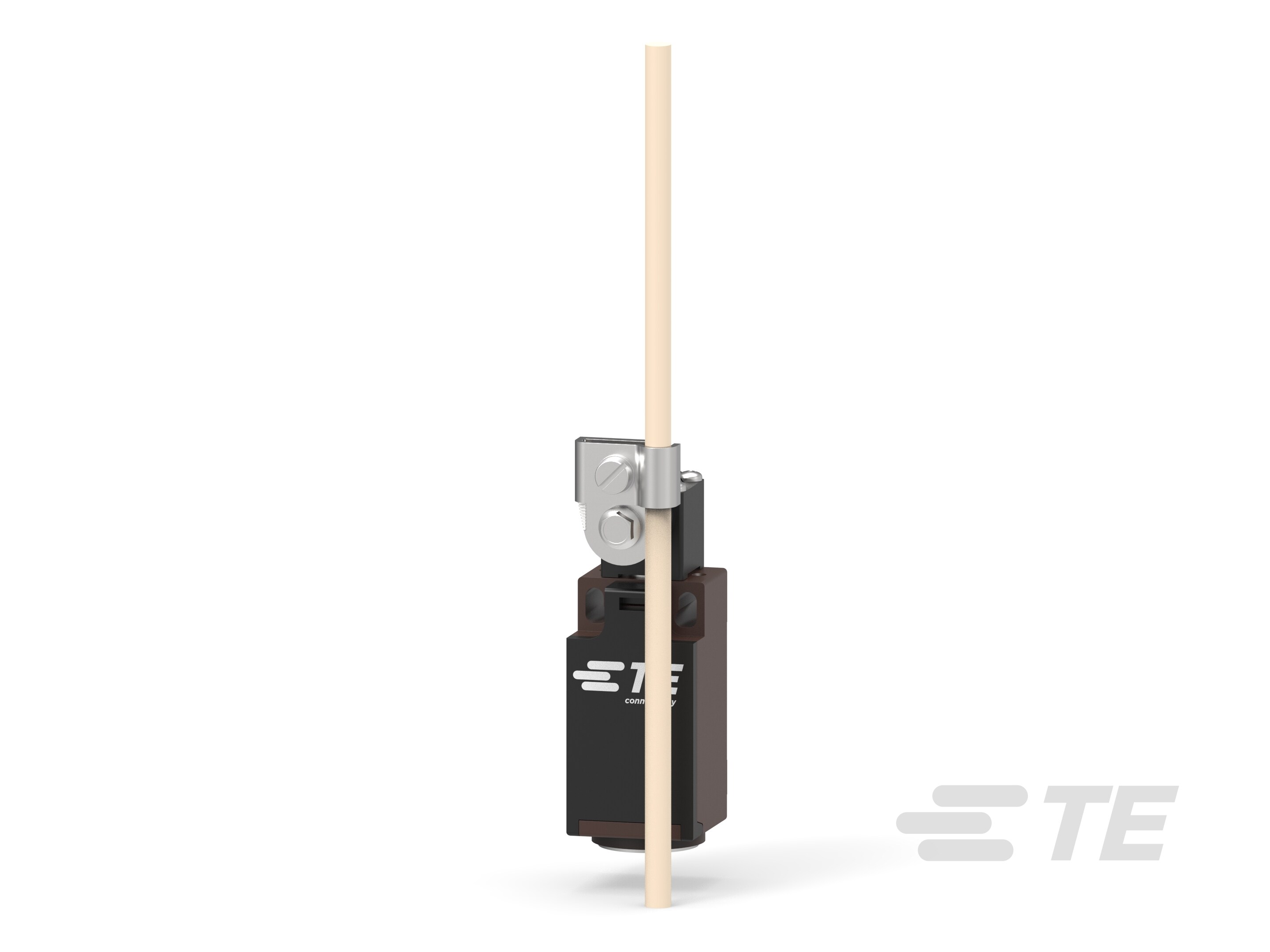

TE Connectivity AMP Connectors TLSTNS0215PB	Screw Terminal	20000000 Cycles	1A 4A	20 gf	IP65 IP67	80 °C	-30 ░C	On-Mom	DPST-NC	Chassis Mount	Side Rotary Adjustable Rod	240 V	24 V

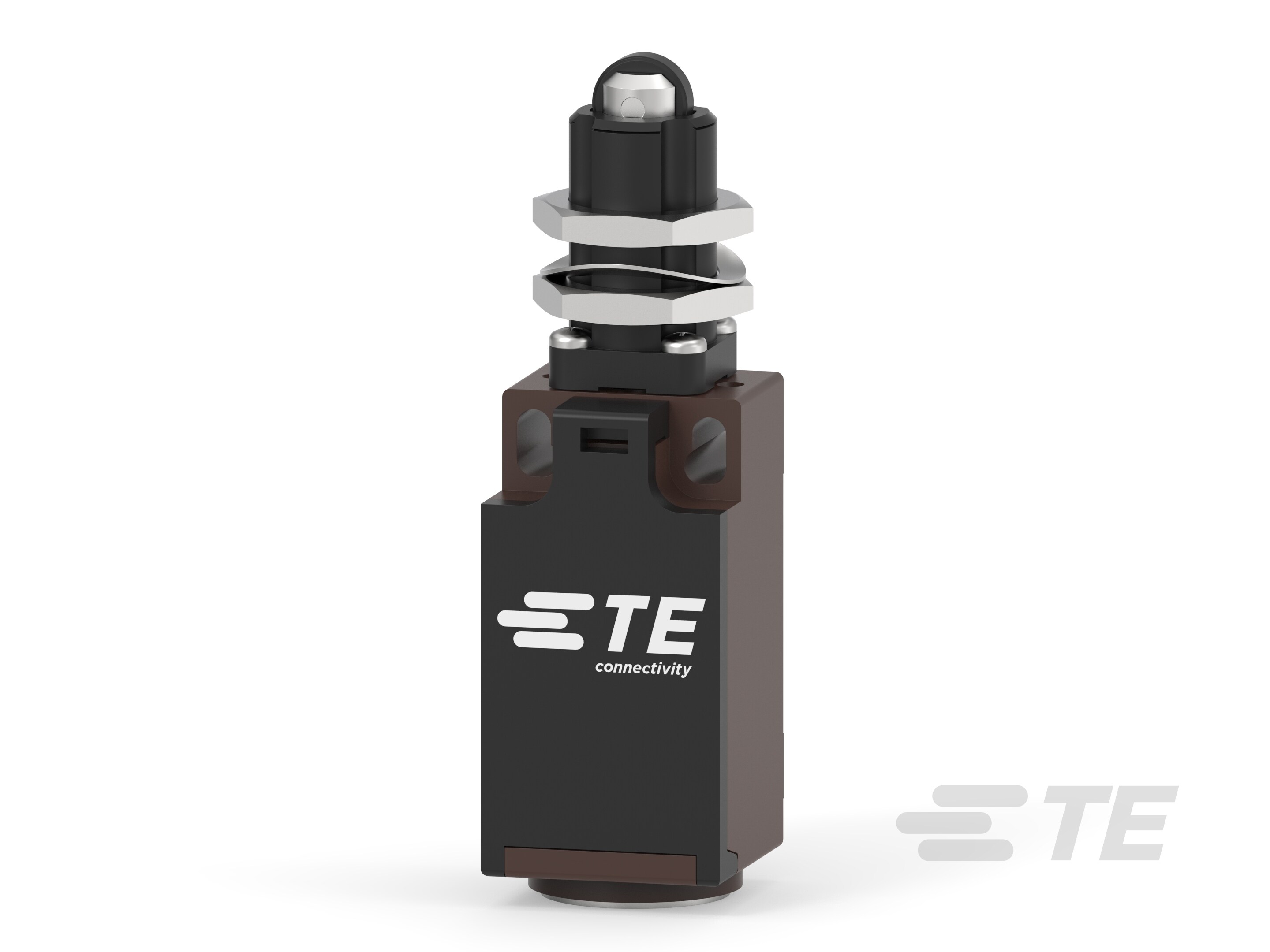

TE Connectivity AMP Connectors TLSTNS0204PD	Screw Terminal	20000000 Cycles	1A 4A	918 gf	IP65 IP67	80 °C	-30 ░C	On-Mom	DPST-NC	Chassis Mount	Roller Plunger	240 V	24 V
TE Connectivity AMP Connectors TLSTLS1115PB	Screw Terminal	20000000 Cycles	1A 4A	20 gf	IP65 IP67	80 °C	-30 ░C	Off-On On-Off	DPST-NO/NC	Chassis Mount	Side Rotary Adjustable Rod	240 V	24 V

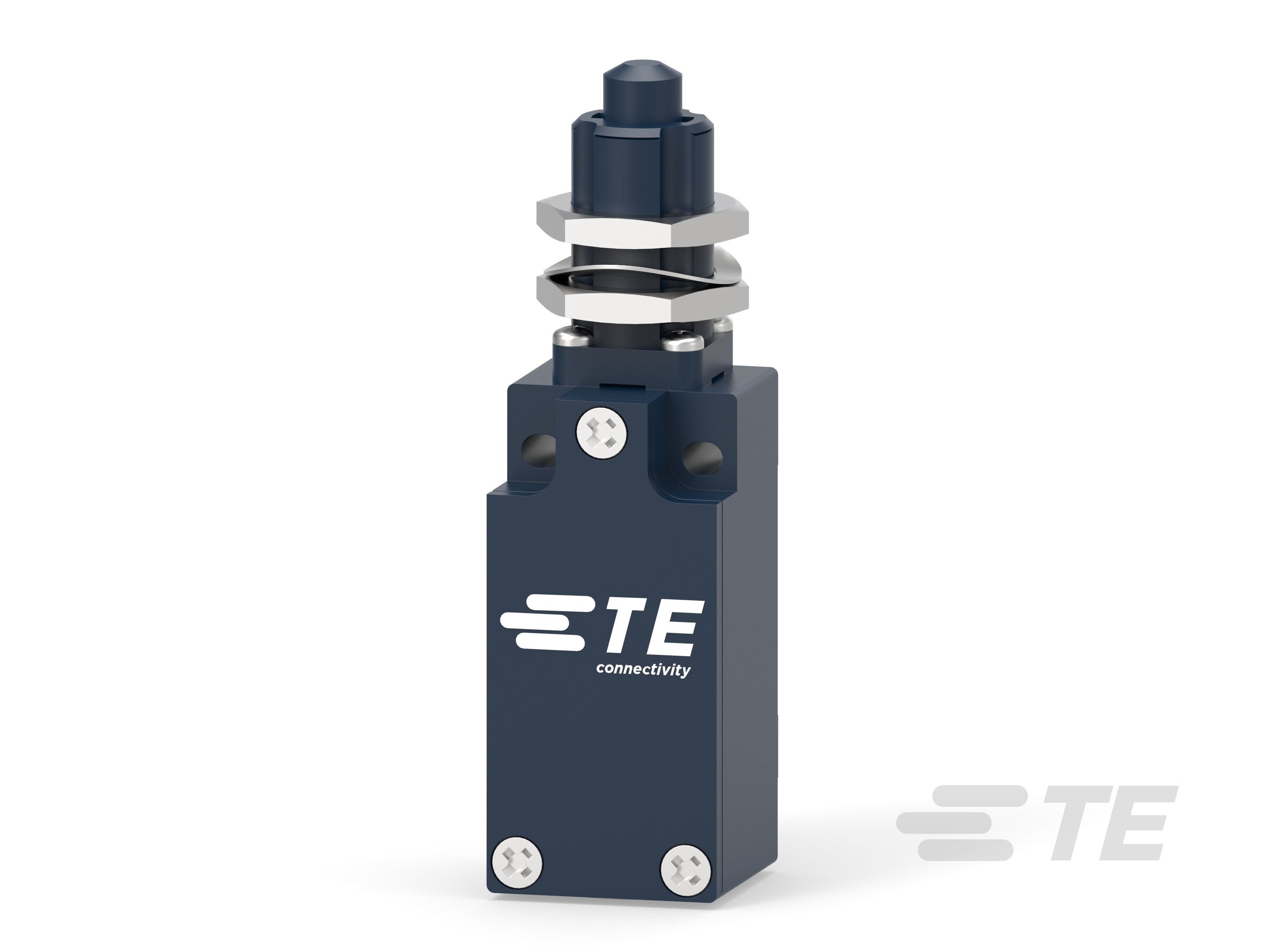

TE Connectivity AMP Connectors TLSZLS0203SD	Screw Terminal	20000000 Cycles	1A 4A	918 gf	IP65 IP67	80 °C	-30 ░C	On-On	DPST-NC	Chassis Mount	Round (Pin Plunger)	240 V	24 V
