90160 Series
Manufacturer: Preci-Dip
Beta
⌘K

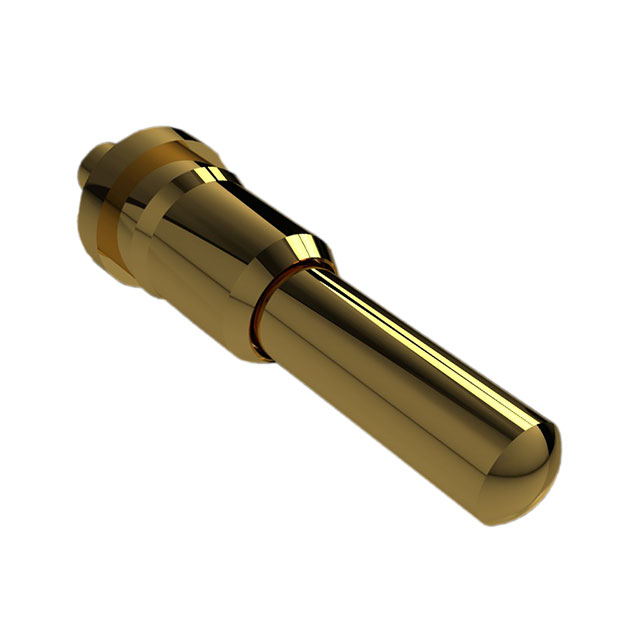

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Minimum Working Height [z] | Minimum Working Height [z] | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Contact Finish | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height | Mounting Type | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 0.181 in | 4.6 mm | 25.49 gf | 0.072 in | 1.83 mm | 40000 | Gold | 61.18 gf | 0.236 in | 6 mm | Through Hole | Brass Alloy | 0.042 in | 1.07 mm | 3 A | 20 µin | 0.51 µm |
