833 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS
| Part | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material | Termination | Applications | LED Color | Contact Material | Number of Rows [custom] | Features | Contact Finish | Orientation | Tab Direction | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Connector Type | Height Above Board [z] | Height Above Board [z] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

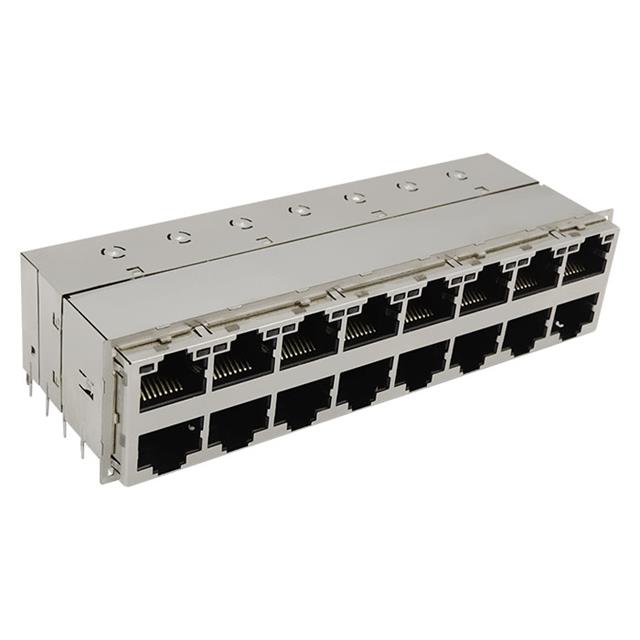

 Bel Fuse Inc. | 50 µin | 1.27 µm | Copper Alloy | Polybutylene Terephthalate (PBT) | Solder | 10/100 Base-T AutoMDIX | Does Not Contain LED | Copper Alloy | 2 | Board Guide Voice over Internet Protocol (VoIP) | Gold | 90 ° | Up and Down | EMI Finger Shielded | 70 °C | 0 °C | Through Hole | RJ45 | 25.5 mm | 1.004 in | 16 |

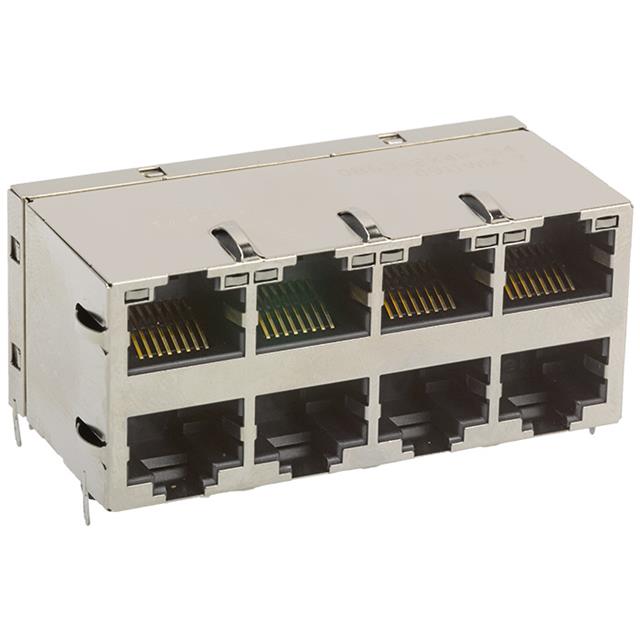

 Bel Fuse Inc. | 50 µin | 1.27 µm | Copper Alloy | Polybutylene Terephthalate (PBT) | Solder | 10/100 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Does Not Contain LED | Copper Alloy | 2 | Board Guide | Gold | 90 ° | Up and Down | EMI Finger Shielded | 70 °C | 0 °C | Through Hole | RJ45 | 25.5 mm | 1.004 in | 8 |
 Bel Fuse Inc. | Solder | 10/100 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Does Not Contain LED | Copper Alloy | 2 | Board Guide | Gold | 90 ° | Up and Down | EMI Finger Shielded | 70 °C | 0 °C | Through Hole | RJ45 | 25.5 mm | 1.004 in | 12 |
