001529 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Material	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Shrouding	Termination	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height [z]	Insulation Height [z]	Fastening Type	Insulation Height	Insulation Height	Type	Current Rating (Amps)	Housing Material	Height	Height	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Color	Pitch	Pitch	Number of Positions [custom]

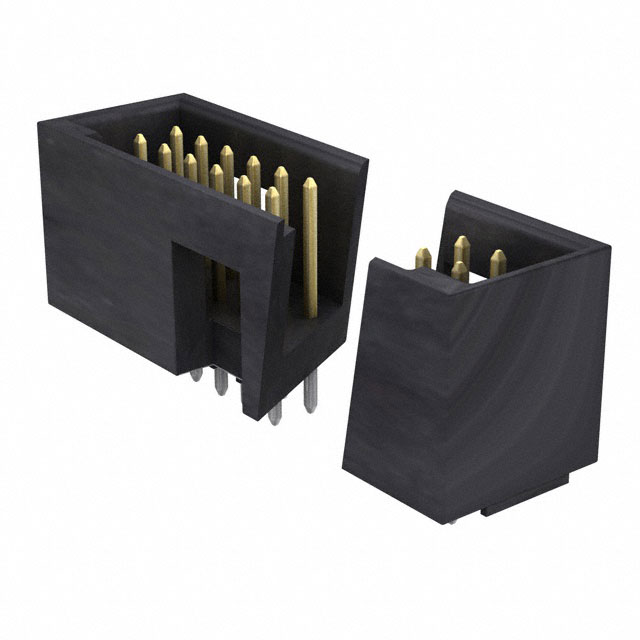

Molex 0015296030	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	30	Square	Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Cable/Wire	0.1 "	2.54 mm	0.13 "	3.3 mm	Polyester Glass Filled	12.07 mm	0.475 in	Detent Lock
Molex 0015297014	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	14	Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in
Molex 0015297024	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	24	Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in

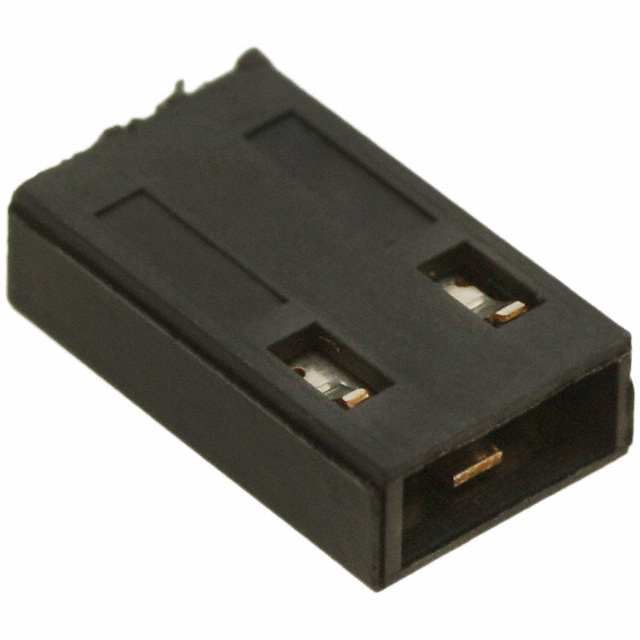

Molex 0015291027																		UL94 V-0																	Closed Top	5 A	Polyester Glass Filled	8.81 mm	0.347 in	Female Sockets	30 Áin	0.76 Ám	Gold	1 x 2	2	Black	0.1 "	2.54 mm
Molex 0015297020	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	20	Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in
Molex 0015297016	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	16	Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in
Molex 0015297034	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin		Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in															34
Molex 0015296060	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	60	Square	Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Cable/Wire	0.1 "	2.54 mm	0.13 "	3.3 mm	Polyester Glass Filled	12.07 mm	0.475 in	Detent Lock
Molex 0015297040	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin	40	Square	Right Angle Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Board Cable	0.1 "	2.54 mm	0.13 "	3.3 mm	Glass Filled Nylon Polyamide (PA)			Detent Lock	10.67 mm	0.42 in
Molex 0015296032	1.9 Ám	74.8 Áin	Automotive General Purpose Lighting Medical Telecommunications	Header	Male Pin	0.38 µm	15 µin		Square	Through Hole	8 mm	0.315 in	Black	Phosphor Bronze	2	0.1 in	2.54 mm	UL94 V-0	Gold	Tin	Shrouded - 4 Wall	Solder	All	Board to Cable/Wire	0.1 "	2.54 mm	0.13 "	3.3 mm	Polyester Glass Filled	12.07 mm	0.475 in	Detent Lock
