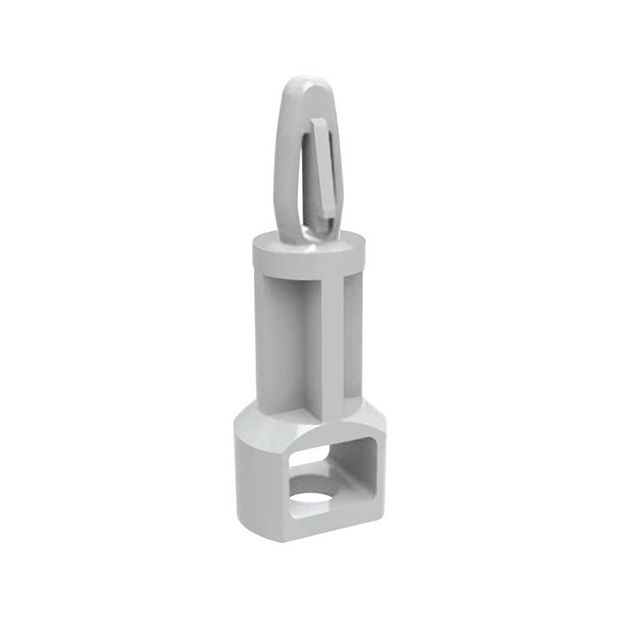

SRLCBS Series

Catalog

BRD SPT SNAP LOCK/RIVET NYL 1/2"

Part	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Holding Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Essentra Components SRLCBS-8-01	12.7 mm	0.5 in	0.5 in	4 mm 4.1 mm	0.157 in	0.161 in	1.6 mm	0.063 in	Nylon	Snap Rivet	0.902 in	22.9 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components SRLCBS-16-01	25.4 mm		1 in	4 mm 4.1 mm	0.157 in	0.161 in	1.6 mm	0.063 in	Nylon	Snap Rivet	1.402 in	35.6 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components SRLCBS-12-01	19.05 mm	0.75 "	0.75 "	4 mm 4.1 mm	0.157 in	0.161 in	1.6 mm	0.063 in	Nylon	Snap Rivet	1.154 in	29.3 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components SRLCBS-6-01	9.53 mm	0.375 "	0.375 in	4 mm 4.1 mm	0.157 in	0.161 in	1.6 mm	0.063 in	Nylon	Snap Rivet	0.776 in	19.7 mm	Snap Lock	3.99 mm	0.157 "
