3119A Series
Manufacturer: Belden Inc.
Beta
⌘K

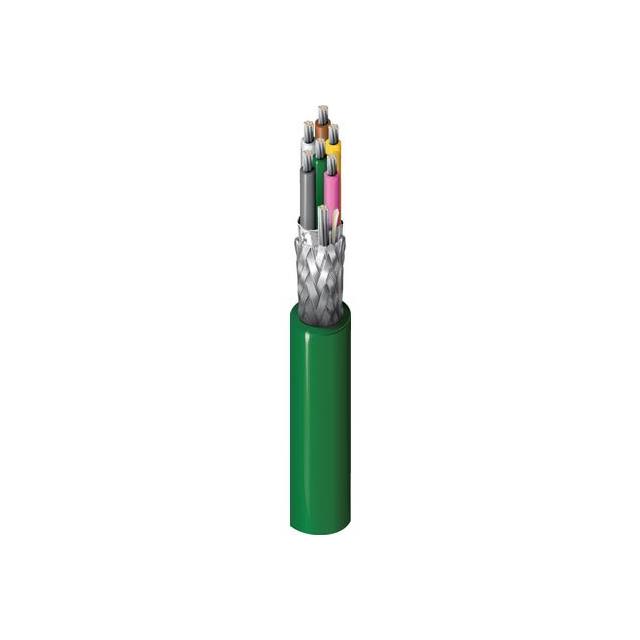

MULTI-PAIR 9COND 18/24AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Material | Length | Length | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Ratings | Number of Conductors | Conductor Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 26 32 | 7 | Green | 0.897 mm | 0.0353 in | Braid Foil | 80 °C | -40 C | 18 AWG 24 AWG | Copper Tinned | 304.8 m | 1000 ft | 300 VDC | Multi-Pair | 8.46 mm | 0.333 in | Polyurethane (PU) | UL Style 20233 | 9 | Poly-Vinyl Chloride (PVC) Polyethylene (PE) | Drain Wire UV Resistant |
