076460 Series

Manufacturer: Molex

Catalog

CONN RCPT IMPACT 60POS EDGE MNT

Part	Voltage Rating	Number of Rows	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Color	Contact Layout, Typical	Termination	Mounting Type	Number of Positions	Number of Columns
Molex 0764601020	30 VDC	6	Impact	85 °C	-55 °C	Gold	Receptacle Female Sockets	UL94 V-0	0.76 Ám	30 Áin	All	Black	20	Press-Fit	Board Edge Right Angle Through Hole	60	10
Molex 0764603010	30 VDC	6	Guide Left Impact	85 °C	-55 °C	Gold	Receptacle Female Sockets	UL94 V-0	0.76 Ám	30 Áin	All	Black	20	Press-Fit	Board Edge Right Angle Through Hole	60	10
Molex 0764605020	30 VDC	6		85 °C	-55 °C	Gold	Receptacle Female Sockets	UL94 V-0	0.76 Ám	30 Áin	All	Black	20	Press-Fit	Board Edge Right Angle Through Hole	60	10

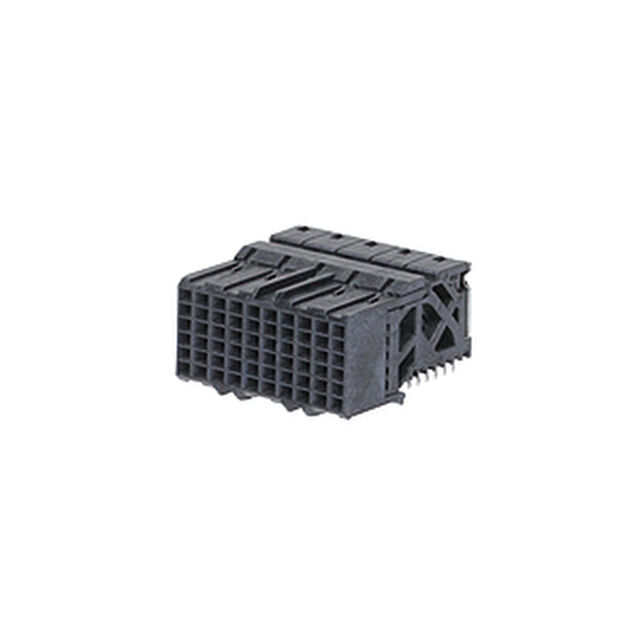

Molex 0764601010	30 VDC	6	Impact	85 °C	-55 °C	Gold	Receptacle Female Sockets	UL94 V-0	0.76 Ám	30 Áin	All	Black	20	Press-Fit	Board Edge Right Angle Through Hole	60	10
Molex 0764605010	30 VDC	6		85 °C	-55 °C	Gold	Receptacle Female Sockets	UL94 V-0	0.76 Ám	30 Áin	All	Black	20	Press-Fit	Board Edge Right Angle Through Hole	60	10
