PD-SF1210 Series
Manufacturer: Power Dynamics, Inc.
Beta
⌘K

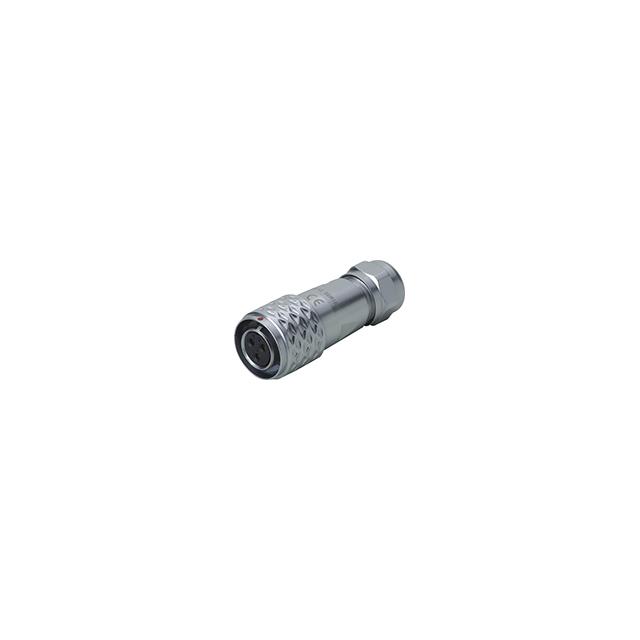

CONN PLUG FMALE 7P GOLD SLDR CUP
| Part | Material Flammability Rating | Backshell Material, Plating | Shell Material | Primary Material | Orientation | Shielding | Ingress Protection | Insert Material | Contact Material | Fastening Type | Current Rating (Amps) | Contact Finish - Mating | Color | Shell Finish | Connector Type | Number of Positions | Voltage Rating | Features | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Power Dynamics, Inc. | UL94 V-0 | Brass Chrome | Brass | Metal | Keyed | Unshielded | IP67 - Dust Tight Waterproof | Polyphenylene Sulfide (PPS) | Brass | Push-Pull | 5 A | Gold | Silver | Chrome | Plug Female Sockets | 7 | 125 VAC | Backshell Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | Free Hanging (In-Line) | 85 °C | -40 C |
