68786 Series

Catalog

CONN SHUNT 2POS .100 LOPRO TIN

Part	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Current Rating (Amps)	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Height [z]	Height [z]	Contact Finish	Type	Gender

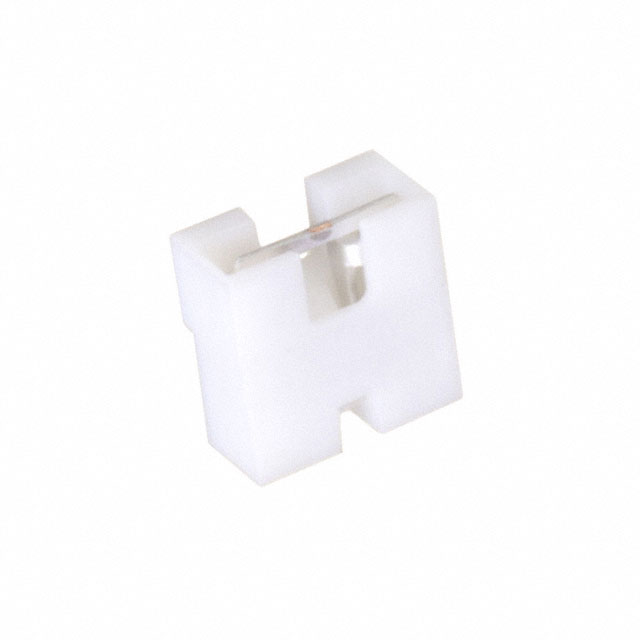

Amphenol ICC (FCI) 68786-302LF	1 x 2	2	White	3 A	2.54 mm	0.1 in	UL94 V-0	2.54 µm	100 µin	Polyester	5.08 mm	0.2 in	Tin	Open Top	Female Sockets

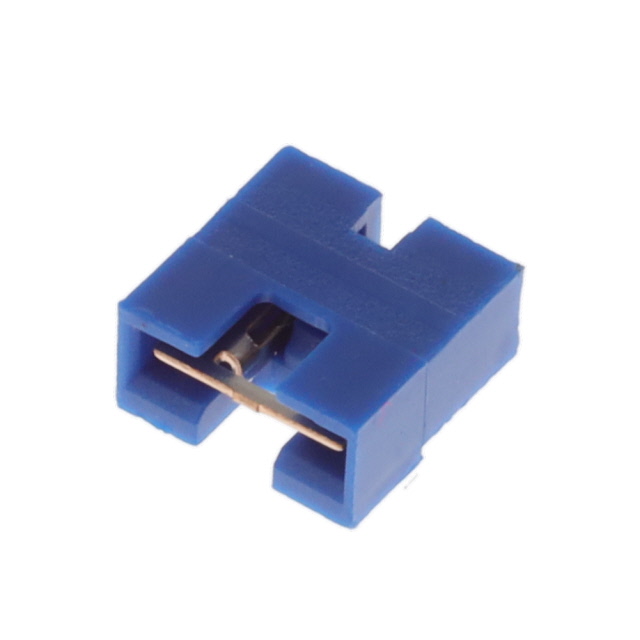

Amphenol ICC (FCI) 68786-203LF	1 x 2	2	Blue	3 A	2.54 mm	0.1 in	UL94 V-0	0.76 Ám	30 Áin	Polyester	5.08 mm	0.2 in	Gold or Gold GXT™	Open Top	Female Sockets

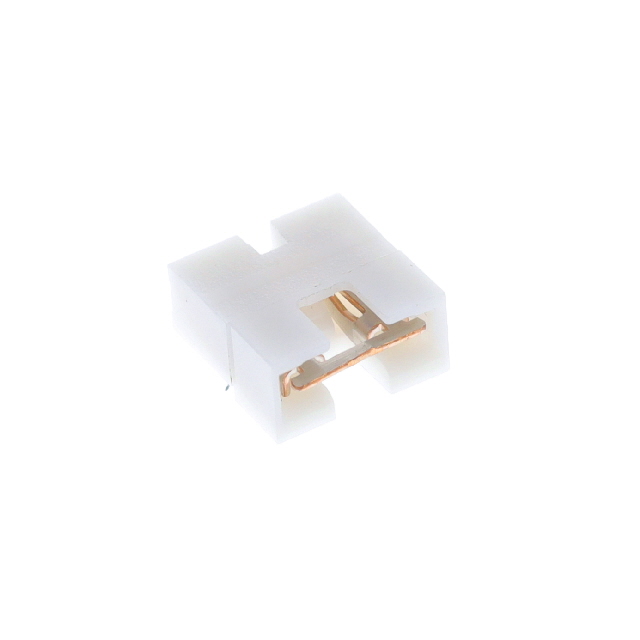

Amphenol ICC (FCI) 68786-102	1 x 2	2	White	3 A	2.54 mm	0.1 in	UL94 V-0	0.38 µm	15 µin	Polyester	5.08 mm	0.2 in	Gold or Gold GXT™	Open Top	Female Sockets
Amphenol ICC (FCI) 68786-303	1 x 2	2	Blue		2.54 mm	0.1 in	UL94 V-0	2.54 µm	100 µin	Polyester	5.08 mm	0.2 in	Tin	Open Top	Female Sockets

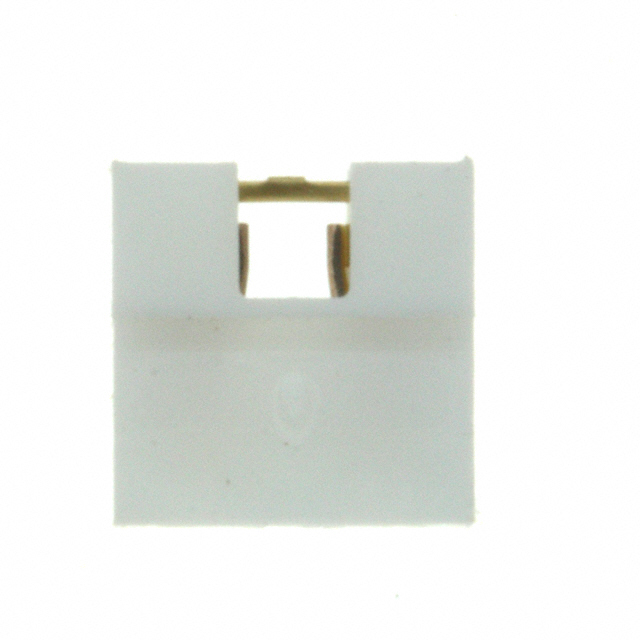

Amphenol ICC (FCI) 68786-202LF	1 x 2	2	White	3 A	2.54 mm	0.1 in	UL94 V-0	0.76 Ám	30 Áin	Polyester	5.08 mm	0.2 in	Gold or Gold GXT™	Open Top	Female Sockets
Amphenol ICC (FCI) 68786-202	1 x 2	2	White	3 A	2.54 mm	0.1 in	UL94 V-0	0.76 Ám	30 Áin	Polyester	5.08 mm	0.2 in	Gold or Gold GXT™	Open Top	Female Sockets
Amphenol ICC (FCI) 68786-302	1 x 2	2	White	3 A	2.54 mm	0.1 in	UL94 V-0	2.54 µm	100 µin	Polyester	5.08 mm	0.2 in	Tin	Open Top	Female Sockets
Amphenol ICC (FCI) 68786-203	1 x 2	2	Blue	2.5 A	2.54 mm	0.1 in	UL94 V-0	0.76 Ám	30 Áin	Polyester	5.08 mm	0.2 in	Gold	Open Top	Female Sockets
