R69425 Series

Catalog

COAXIPACK 2 / RIGHT ANGLE MALE M

Part	Mating Cycles	Insertion Loss	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Body Material	Voltage Rating	Number of Ports [custom]	Impedance	Mounting Type	Connector Type	Fastening Type	Contact Termination	Shield Termination	Frequency - Max [Max]	Center Contact Material	Connector Style	Housing Color	Cable Group	Number of Ports
Radiall USA, Inc. R694251117	500	0.2 dB	Nickel	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Brass	500 V	6	50 Ohms	Right Angle Through Hole	Plug Male Pin	Push-Pull	Solder	Solder	6000 MHz	Beryllium Copper	MCC2	Silver
Radiall USA, Inc. R694252107W	500	0.2 dB	Nickel	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Brass	500 V	6	50 Ohms	Right Angle Through Hole	Female Socket Jack	Push-Pull	Solder	Solder	6000 MHz	Beryllium Copper	MCC2	Silver

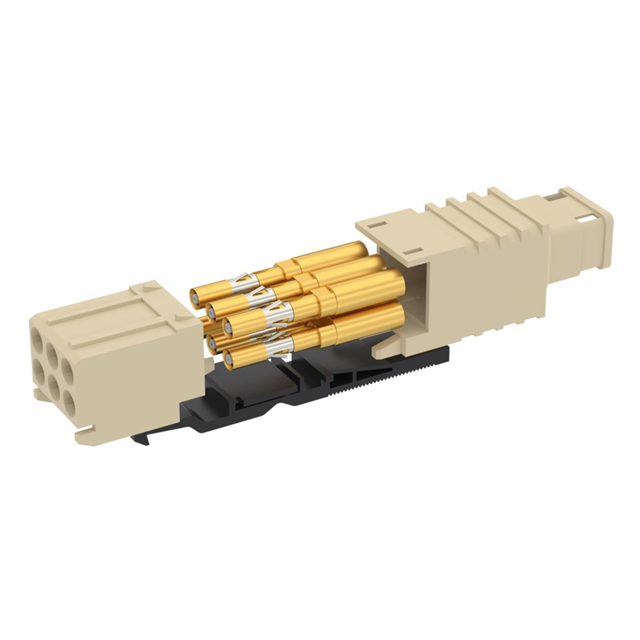

Radiall USA, Inc. R694252537	500	0.2 dB	Gold	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Brass	500 V	6	50 Ohms	Free Hanging (In-Line)	Female Socket Jack	Push-Pull	Crimp	Crimp	6000 MHz	Beryllium Copper	MCC2	Gold	316 RG-188
Radiall USA, Inc. R694252107	500	0.2 dB	Nickel	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Brass	500 V	6	50 Ohms	Right Angle Through Hole	Female Socket Jack	Push-Pull	Solder	Solder	6000 MHz	Beryllium Copper	MCC2	Silver
Radiall USA, Inc. R694252567
Radiall USA, Inc. R694252507	500		Gold	-25 °C	125 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 V	6	50 Ohms	Free Hanging (In-Line)	Female Socket Jack	Push-Pull	Crimp	Crimp	6000 MHz	Beryllium Copper		Gold	RG-178
Radiall USA, Inc. R694252102	500	0.2 dB	Nickel	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Brass	500 V		50 Ohms	Right Angle Through Hole	Female Socket Jack	Push-Pull	Solder	Solder	6000 MHz	Beryllium Copper	MCC2	Silver		2

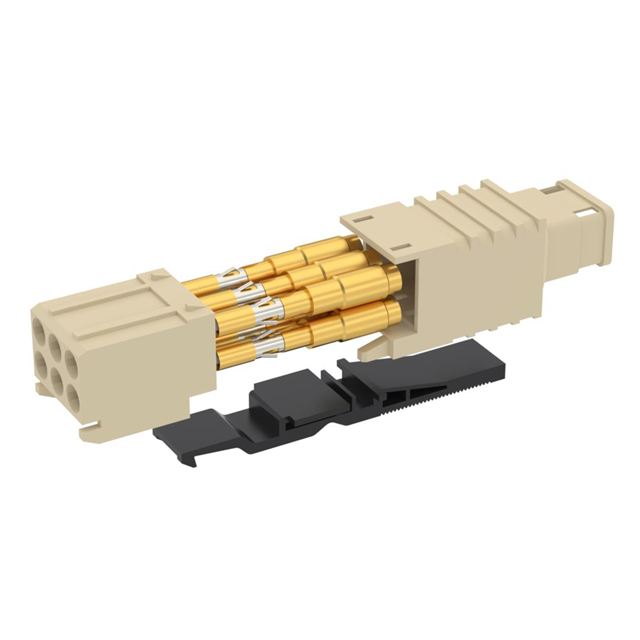

Radiall USA, Inc. R694252557	500	0.2 dB	Gold	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Brass	500 V	6	75 Ohms	Free Hanging (In-Line)	Female Socket Jack	Push-Pull	Crimp	Crimp	6000 MHz	Beryllium Copper	MCC2	Gold
Radiall USA, Inc. R694252106	500	0.2 dB	Nickel	-25 °C	125 °C	Gold	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Brass	500 V		50 Ohms	Right Angle Through Hole	Female Socket Jack	Push-Pull	Solder	Solder	6000 MHz	Beryllium Copper	MCC2	Silver		4
