AIKQ120 Series
Manufacturer: INFINEON
Beta
⌘K

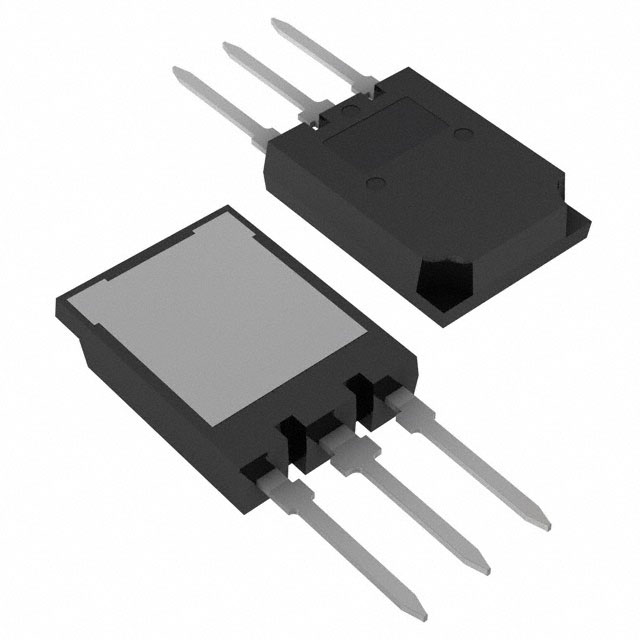

600 V TRENCHSTOP™ IGBT WITH ANTI-PARALLEL DIODE IN TO247 HOUSING. WITH A SWITCHING FREQUENCY UP TO 30 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE AUTOMOTIVE APPLICATIONS.
| Part | Switching Energy | Gate Charge | Current - Collector Pulsed (Icm) | Td (on/off) @ 25°C [Min] | Td (on/off) @ 25°C [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Test Condition | Voltage - Collector Emitter Breakdown (Max) [Max] | Mounting Type | Vce(on) (Max) @ Vge, Ic | Current - Collector (Ic) (Max) [Max] | IGBT Type | Qualification | Grade | Power - Max [Max] | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] | Vce(on) (Max) @ Vge, Ic [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2.8 mJ 4.1 mJ | 772 nC | 480 A | 33 ns | 310 ns | TO-247-3 | 175 °C | -40 °C | PG-TO247-3-46 | 3 Ohm 15 V 120 A 400 V | 600 V | Through Hole | 2 V | 160 A | Trench Field Stop | AEC-Q101 | Automotive | 833 W | |||
INFINEON | 3.8 mJ 6.82 mJ | 731 nC | 360 A | TO-247-3 | 175 °C | -40 °C | PG-TO247-3-46 | 5 Ohm 15 V 120 A 470 V | 750 V | Through Hole | 150 A | AEC-Q101 | Automotive | 682 W | 71 ns | 244 ns | 1.5 V |
