pse-no-30 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

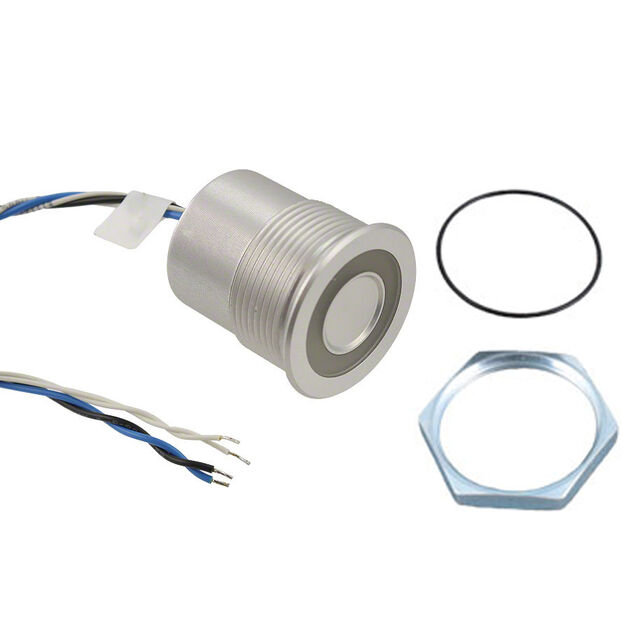

SWITCH: PIEZOELECTRIC; POS: 2; SPST-NO; 0.1A/42VAC; 0.1A/60VDC
| Part | Electrical Life | Switch Function | Illumination Voltage (Nominal) | Mounting Type | Termination Style | Current Rating (Amps) | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Ingress Protection | Actuator Type | Voltage Rating - AC | Illumination Type, Color | Actuator Marking | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 20000000 Cycles | Off-Mom | 24 V | Panel Mount Front | Wire Leads | 100 mA | Silver | 85 °C | -40 C | SPST-NO | IP67 - Dust Tight Waterproof | Button Flush Round | 42 V | Blue LED | No Marking | 60 VDC | 30.3 mm | Piezo |
