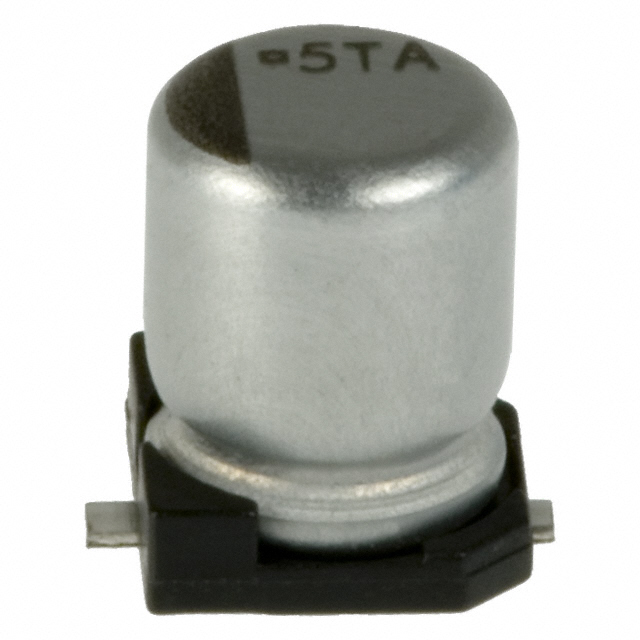

MVA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 10VOLTS 22UF 4X5.2

Part	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Capacitance	Mounting Type	Applications	Polarization	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EMVA100ADA220MD55G	10 V	0.205 in	5.2 mm	4.3 mm	0.169 "	0.169 in	4.3 mm	22 µF	Surface Mount	General Purpose	Polar	28.08 mA	4 mm	0.157 in	20 %	Radial Can - SMD	85 °C	-40 C	26 mA	2000 Hrs
Chemi-Con EMVA6R3ARA332MKG5S	6.3 VDC							3.3 mF	Surface Mount	General Purpose	Polar	1.08 A	12.5 mm	0.492 in	20 %	Radial Can - SMD	85 °C	-40 C	1 A	2000 Hrs	16 mm	0.63 in
Chemi-Con EMVA6R3ADA821MHA0G	6.3 VDC	0.394 in	10 mm	8.3 mm	0.327 in	0.327 in	8.3 mm	820 µF	Surface Mount	General Purpose	Polar	345.6 mA	8 mm	0.315 in	20 %	Radial Can - SMD	85 °C	-40 C	320 mA	2000 Hrs
