M14 Series

Catalog

TERMINALS C-61-202K 13775 SS-32-6-W 52829

Part	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Insulation	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Termination	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Mounting Type	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Number of Wire Entries	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges

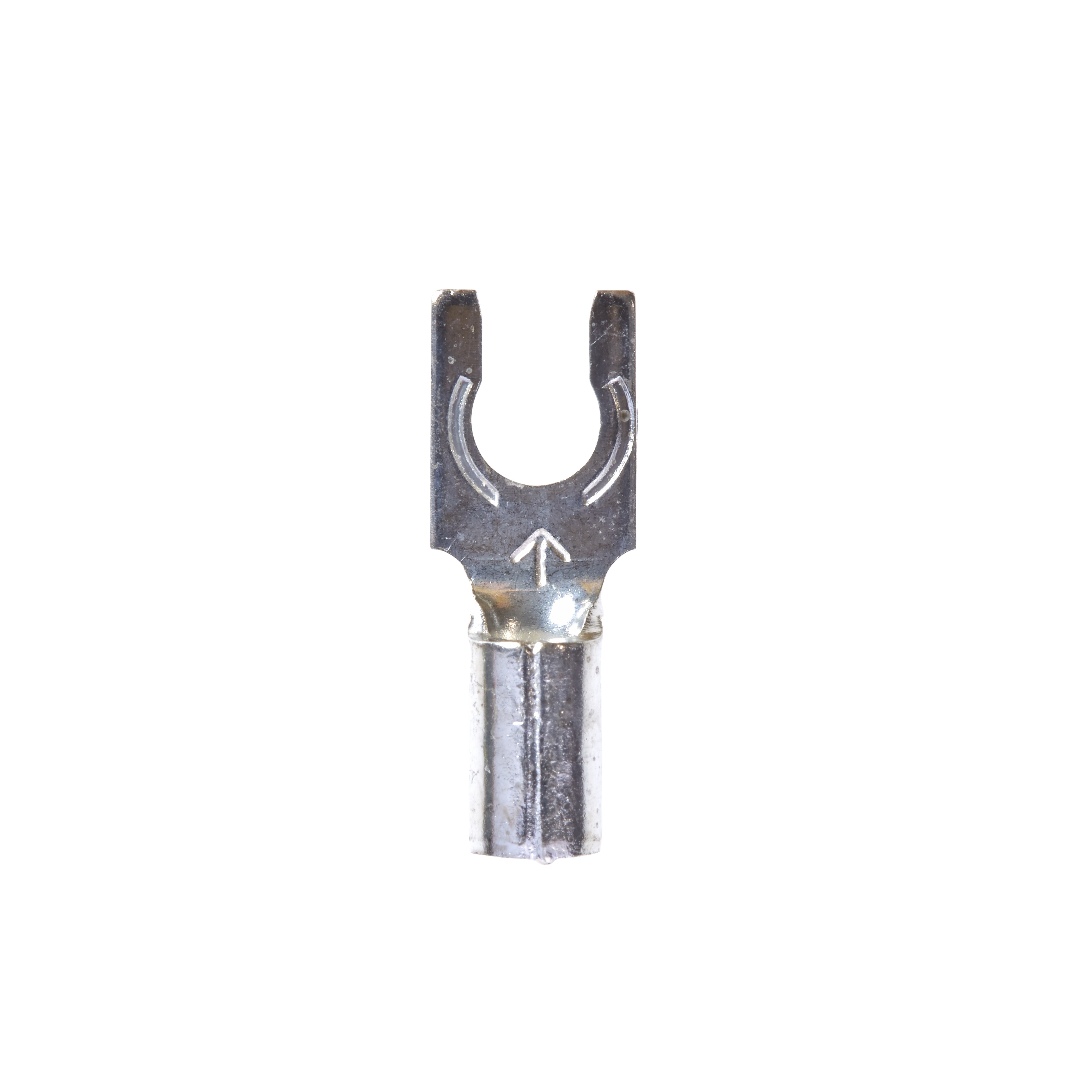

3M Electronic Specialty M14-6FLK	6.35 mm	0.25 "	Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	17.27 mm	0.68 "	6 Stud	Crimp	Snap Spring	6.35 mm	0.25 "	Brazed Seam	Free Hanging (In-Line)

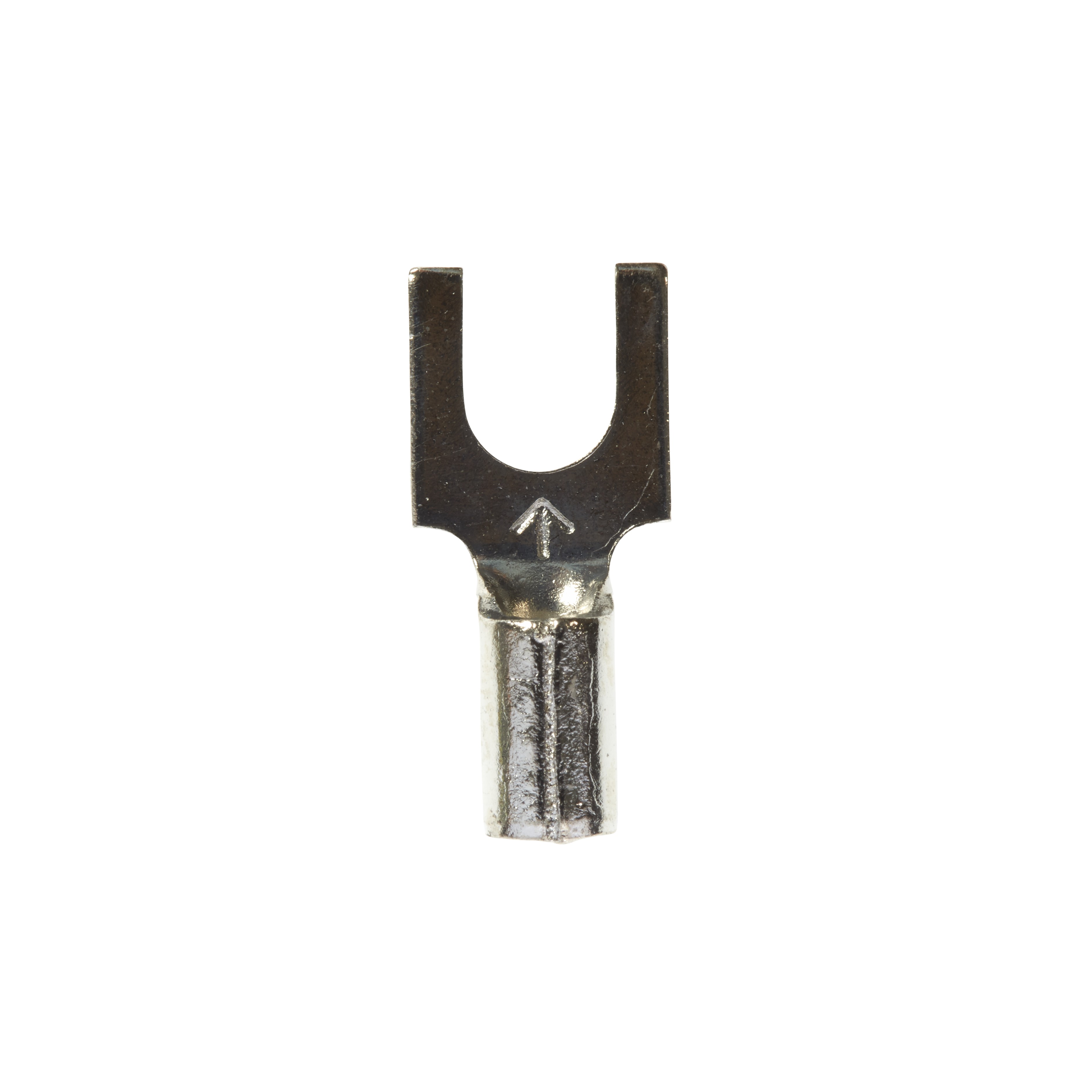

3M Electronic Specialty M14-8FBX-BOTTLE	6.35 mm	0.25 "	Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	16.5 mm	0.65 in	8 Stud	Crimp	Standard			Brazed Seam	Free Hanging (In-Line)
3M Electronic Specialty M14-6FBX-BOTTLE	6.35 mm	0.25 "	Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	16.5 mm	0.65 in	6 Stud	Crimp	Standard			Brazed Seam	Free Hanging (In-Line)

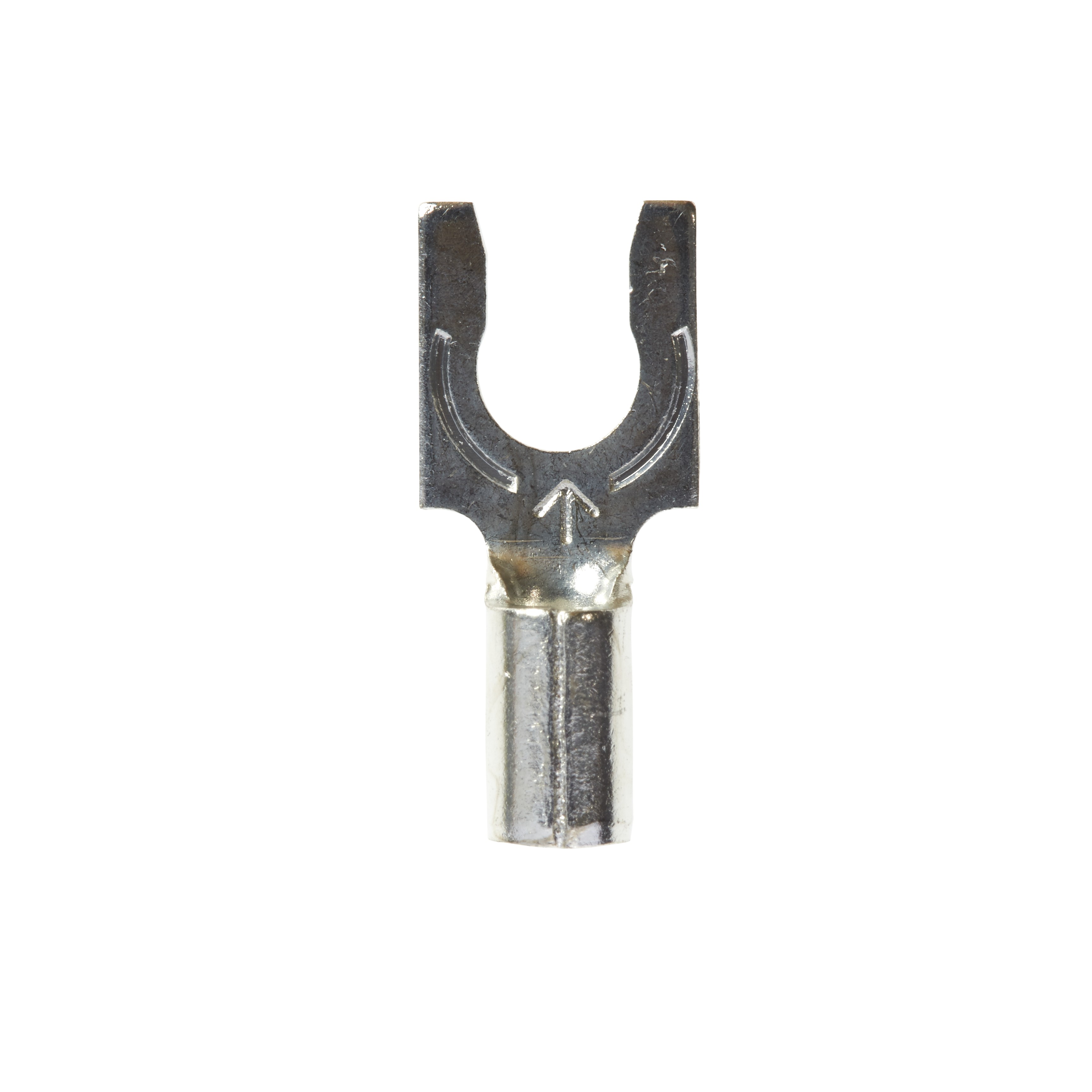

3M Electronic Specialty M14-8FX-BOTTLE			Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	17.78 mm	0.7 in	8 Stud	Crimp	Standard			Brazed Seam	Free Hanging (In-Line)	0.25 in	6.35 mm	7.37 mm	0.29 in	0.34 in	8.64 mm
3M Electronic Specialty M14BCX-BOTTLE				14 AWG	16 AWG		Non-Insulated				Crimp	Butt Splice Individual Openings Inline											2
3M Electronic Specialty M14-6R/SK				14 AWG	16 AWG		Non-Insulated	15.24 mm	0.6 in	6 Stud	Crimp	Circular	6.35 mm	0.25 "	Brazed Seam	Free Hanging (In-Line)								0.76 mm	0.03 in

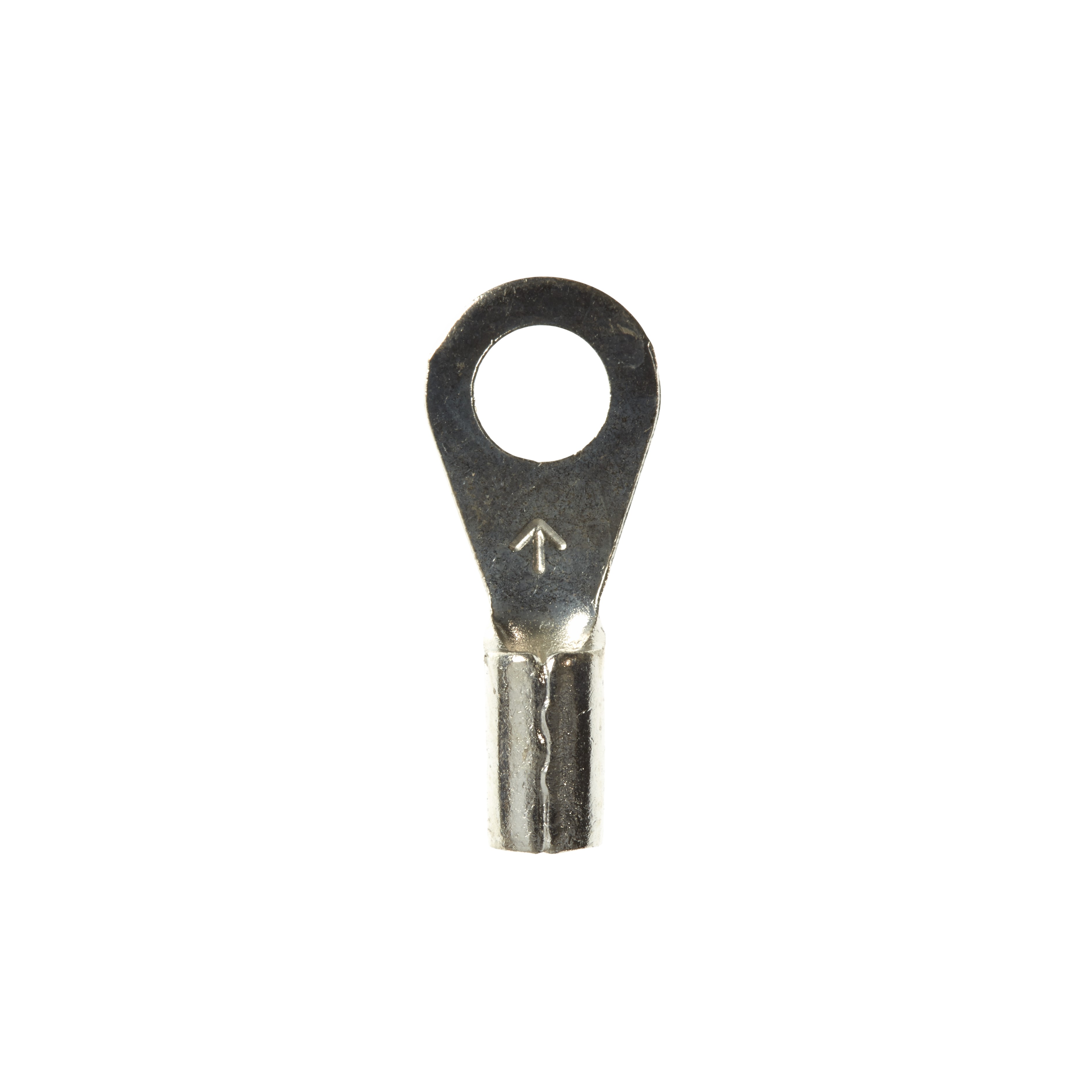

3M Electronic Specialty M14-8R/LX-BOTTLE			Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	18.8 mm	0.74 in	8 Stud	Crimp	Circular			Brazed Seam	Free Hanging (In-Line)								0.76 mm	0.03 in	7.87 mm	0.31 in

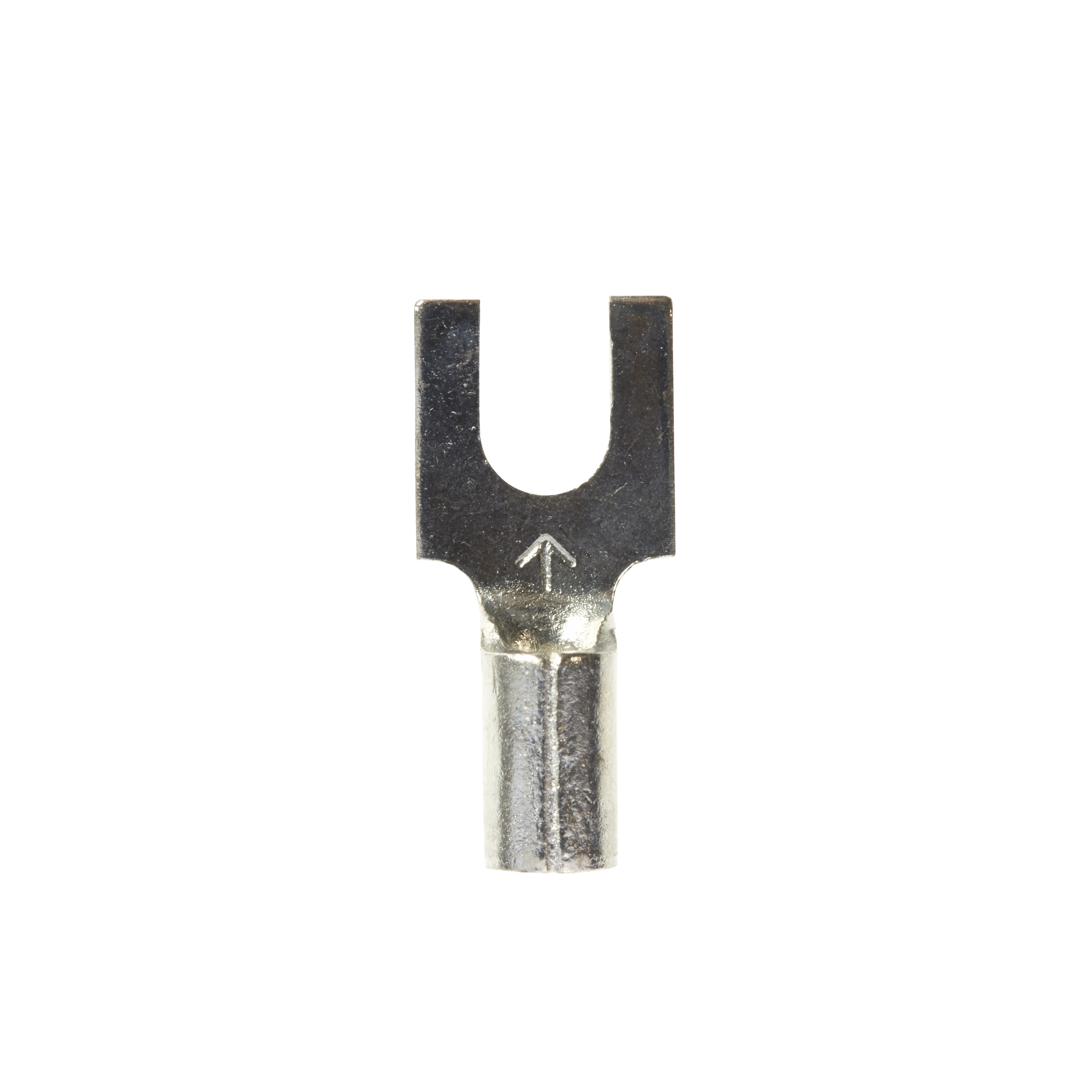

3M Electronic Specialty M14-6FBK	6.35 mm	0.25 "	Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	16.5 mm	0.65 in	6 Stud	Crimp	Standard			Brazed Seam	Free Hanging (In-Line)

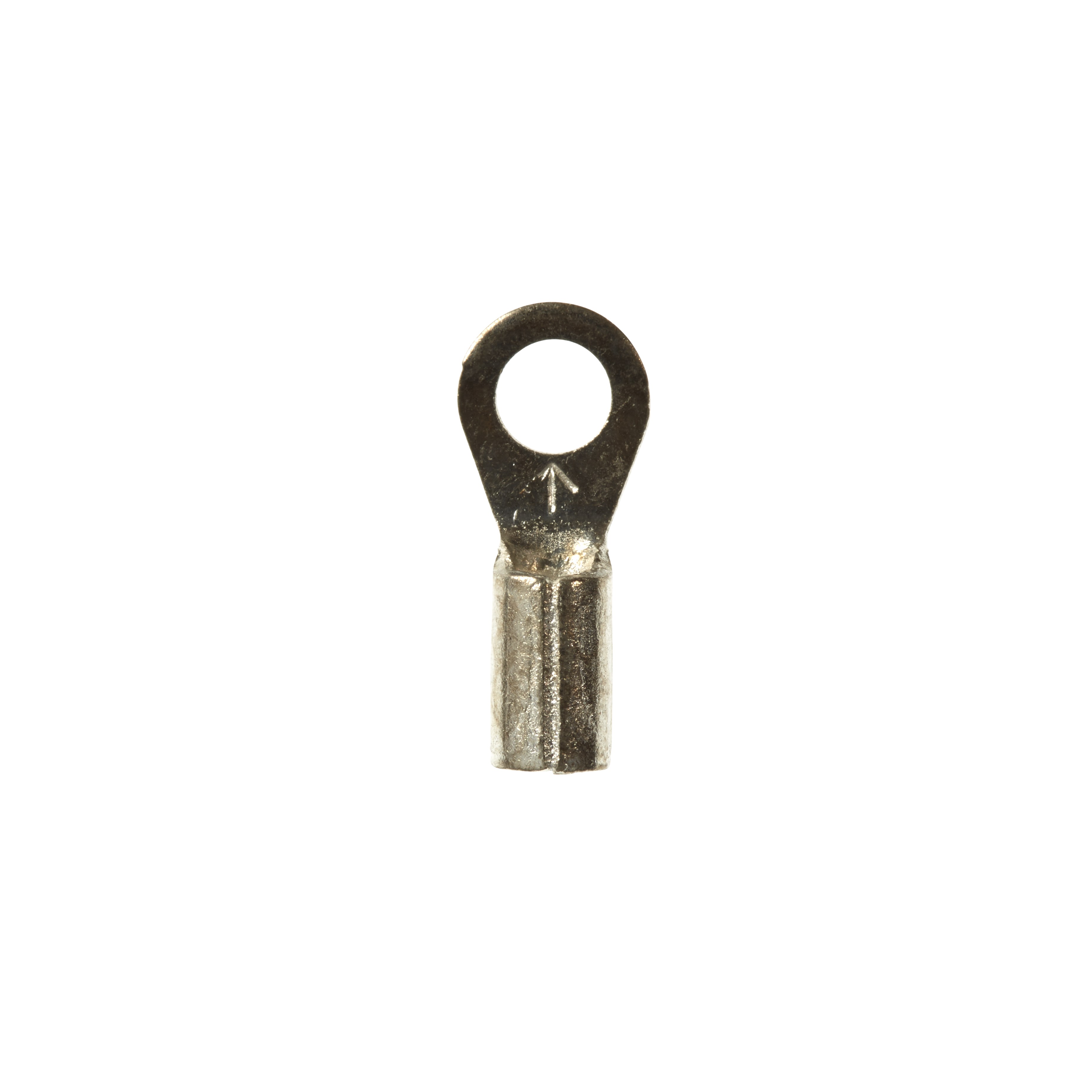

3M Electronic Specialty M14-6R/SX				14 AWG	16 AWG		Non-Insulated	15.24 mm	0.6 in	6 Stud	Crimp	Circular	6.35 mm	0.25 "	Brazed Seam	Free Hanging (In-Line)								0.76 mm	0.03 in
3M Electronic Specialty M14-8FBK	6.35 mm	0.25 "	Copper ETP	14 AWG	16 AWG	Tin	Non-Insulated	16.5 mm	0.65 in	8 Stud	Crimp	Standard			Brazed Seam	Free Hanging (In-Line)
