725-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 56POS 0.100

Part	Material - Insulation	Termination Rows	Contact Type	Color	Pitch	Pitch	Mounting Type	Number of Positions	Read Out	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Contact Material	Gender	Number of Positions/Bay/Row	Termination Rows [custom]	Number of Rows [custom]

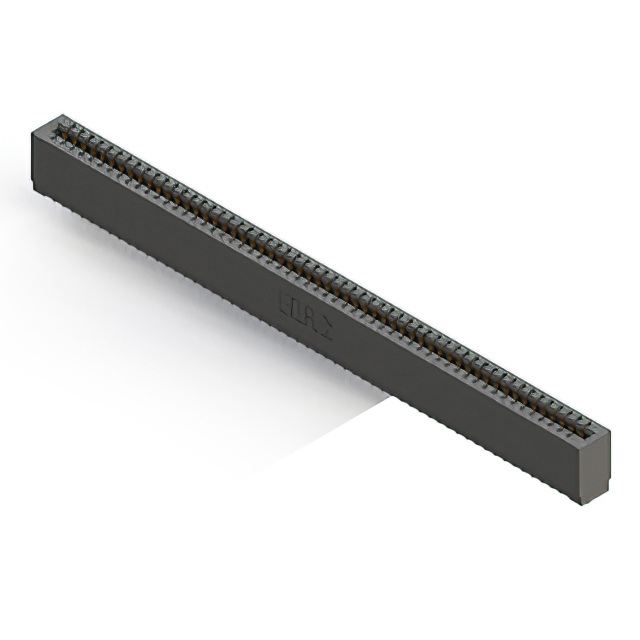

EDAC Inc. 725-056-525-101	Polyester Thermoplastic	1	Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Single	Non Specified - Single Edge	30 Áin	0.76 Ám	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Copper Alloy	Female	56
EDAC Inc. 725-056-541-101	Polyester Thermoplastic	1	Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Single	Non Specified - Single Edge	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Copper Alloy	Female	56
EDAC Inc. 725-056-545-101	Polyester Thermoplastic	1	Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Single	Non Specified - Single Edge	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Copper Alloy	Female	56
EDAC Inc. 725-056-560-201	Polyester Thermoplastic		Cantilever Make Before Break	Black	0.1 "	2.54 mm	Through Hole	56	Dual	Non Specified - Dual Edge	30 Áin	0.76 Ám	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Female	28	2	2

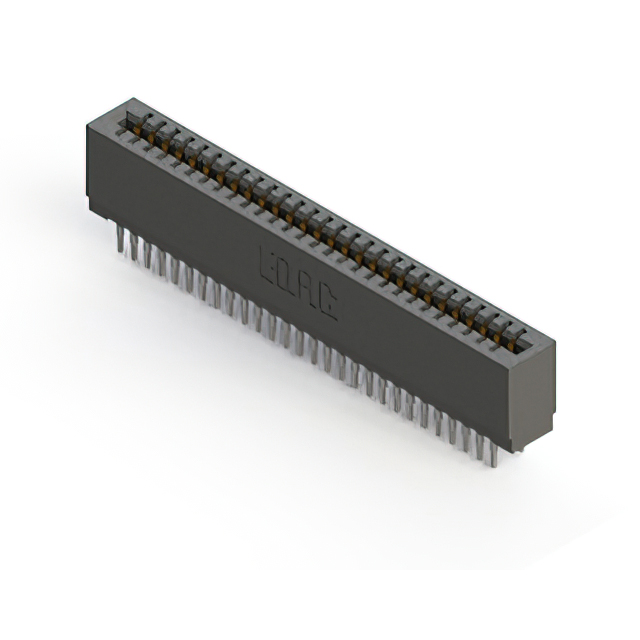

EDAC Inc. 725-056-545-201	Polyester Thermoplastic		Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Dual	Non Specified - Dual Edge	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Female	28	2	2

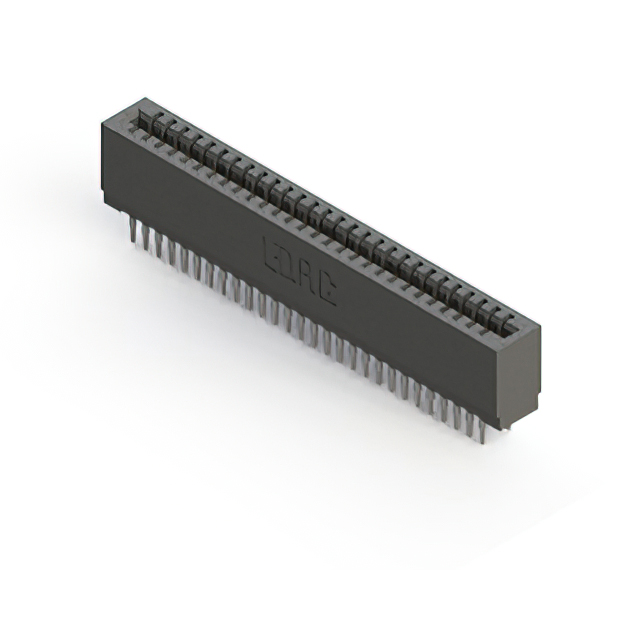

EDAC Inc. 725-056-541-201	Polyester Thermoplastic		Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Dual	Non Specified - Dual Edge	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Female	28	2	2
EDAC Inc. 725-056-520-201	Polyester Thermoplastic		Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Dual	Non Specified - Dual Edge	30 Áin	0.76 Ám	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Female	28	2	2
EDAC Inc. 725-056-520-101	Polyester Thermoplastic	1	Cantilever	Black	0.1 "	2.54 mm	Through Hole	56	Single	Non Specified - Single Edge	30 Áin	0.76 Ám	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Copper Alloy	Female	56
