S11F1C-P Series
Manufacturer: ODU
Beta
⌘K

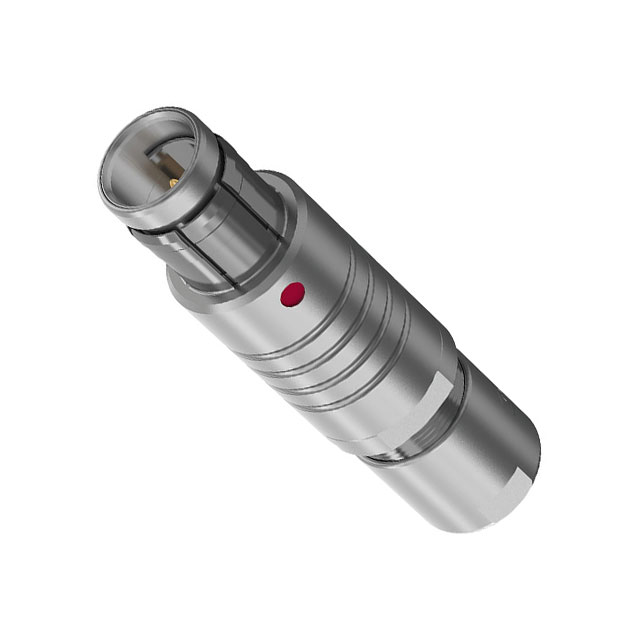

ODU MINI-SNAP STRAIGHT PLUG, SZ1
| Part | Insert Material | Current Rating (Amps) | Features | Contact Finish - Mating | Connector Type | Number of Positions | Shell Finish | Orientation [custom] | Contact Material | Voltage Rating | Backshell Material, Plating | Shell Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Mounting Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Fastening Type | Primary Material | Material Flammability Rating | Applications | Ingress Protection | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 7 | Chrome over Nickel | 1 | Brass | 333 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 12 Amps | Backshell | Gold | Plug Male Pins | Chrome over Nickel | 1 | Brass | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Shielded | Free Hanging (In-Line) | 0.157 in | 0.177 " | 4.5 mm | 4 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |||
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 4 | Chrome over Nickel | 1 | Brass | 500 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.276 " | 0.295 in | 7.5 mm | 7 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 7 | Chrome over Nickel | 1 | Brass | 333 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.177 in | 0.197 in | 5 mm | 4.5 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 5 | Chrome over Nickel | 1 | Brass | 450 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.118 in | 0.138 in | 3.5 mm | 3 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 8 | Chrome over Nickel | 1 | Brass | 300 VDC | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.039 in | 0.059 in | 1.5 mm | 1 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 4 A | Backshell | Gold | Plug Male Pins | 12 | Chrome over Nickel | 1 | Brass | 366 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.118 in | 0.138 in | 3.5 mm | 3 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 6 | Chrome over Nickel | 1 | Brass | 333 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 7.5 A | Backshell | Gold | Plug Male Pins | 5 | Chrome over Nickel | 1 | Brass | 450 V | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.039 in | 0.059 in | 1.5 mm | 1 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 | |
Polyetheretherketone (PEEK) | 12 Amps | Backshell | Gold | Plug Male Pins | 2 | Chrome over Nickel | 1 | Brass | 550 VDC | Brass Chrome over Nickel | Brass | Silver | 120 °C | -40 C | Unshielded | Free Hanging (In-Line) | 0.059 " | 0.079 " | 2 mm | 1.5 mm | Push-Pull | Metal | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 1 |
