ISPLSI 1048E Series

Manufacturer: Lattice Semiconductor Corporation

Catalog

IC CPLD 192MC 15NS 128QFP

Part	Delay Time tpd(1) Max [Max]	Supplier Device Package	Number of Gates	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Programmable Type	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of I/O	Number of Logic Elements/Blocks	Package / Case

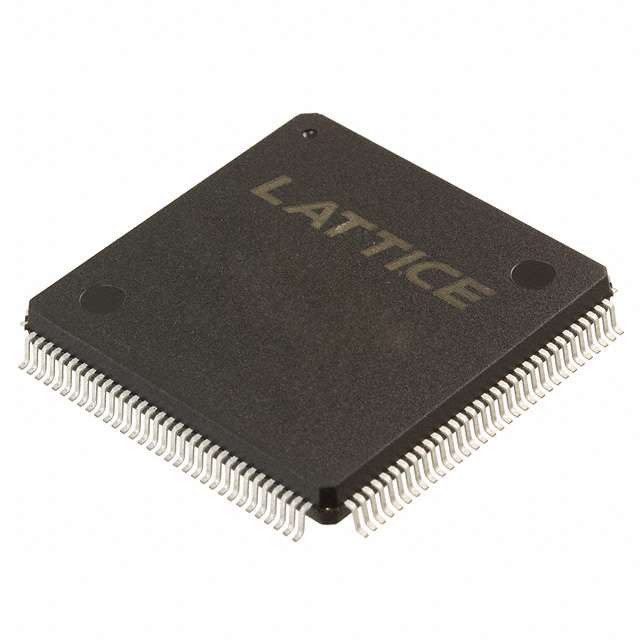

Lattice Semiconductor Corporation ISPLSI 1048E-70LQI	15 ns	128-PQFP (28x28)	8000	Surface Mount	85 C	-40 ¯C	In System Programmable	192	4.5 V	5.5 V	96	48	128-BQFP
Lattice Semiconductor Corporation ISPLSI 1048E-50LQN	20 ns	128-PQFP (28x28)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-BQFP
Lattice Semiconductor Corporation ISPLSI 1048E-50LQI	20 ns	128-PQFP (28x28)	8000	Surface Mount	85 C	-40 ¯C	In System Programmable	192	4.5 V	5.5 V	96	48	128-BQFP
Lattice Semiconductor Corporation ISPLSI 1048E-70LQN	15 ns	128-PQFP (28x28)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-BQFP

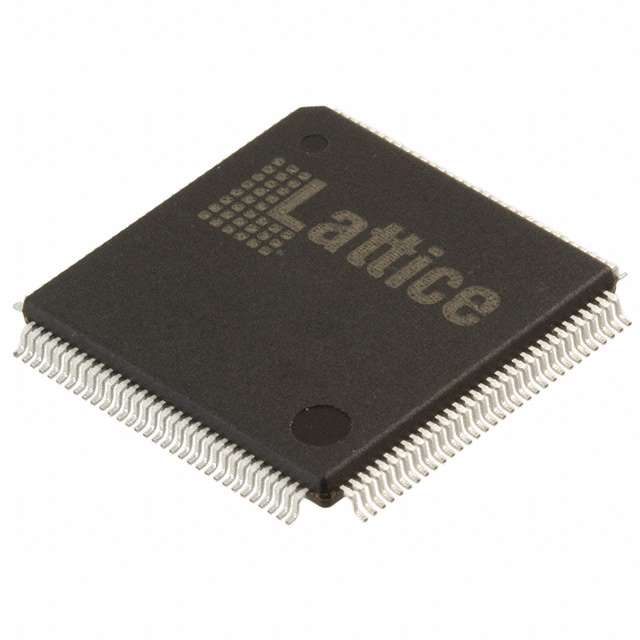

Lattice Semiconductor Corporation ISPLSI 1048E-100LTN	10 ns	128-TQFP (14x14)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-LQFP
Lattice Semiconductor Corporation ISPLSI 1048E-125LT	7.5 ns	128-TQFP (14x14)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-LQFP
Lattice Semiconductor Corporation ISPLSI 1048E-90LQ	10 ns	128-PQFP (28x28)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-BQFP
Lattice Semiconductor Corporation ISPLSI 1048E-50LT	20 ns	128-TQFP (14x14)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-LQFP
Lattice Semiconductor Corporation ISPLSI 1048E-100LT	10 ns	128-TQFP (14x14)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-LQFP
Lattice Semiconductor Corporation ISPLSI 1048E-70LTN	15 ns	128-TQFP (14x14)	8000	Surface Mount	70 °C	0 °C	In System Programmable	192	4.75 V	5.25 V	96	48	128-LQFP
