R4GBLKWH Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Current Rating (Amps) | Actuator Marking | Color - Actuator/Cap | Voltage Rating - AC | Approval Agency | Mounting Type | Termination Style | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

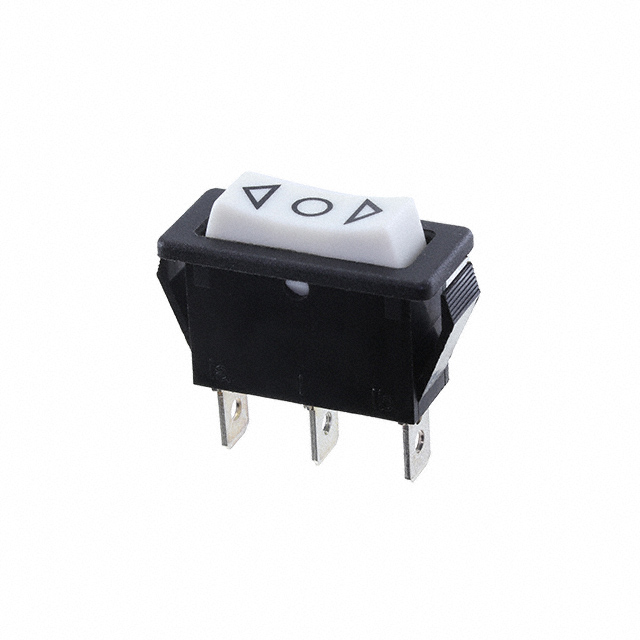

 E-Switch | 6000 Cycles | 30000 Steps | SPDT | 15 A | Triangular Arrows with O | White | 125 V | UL | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | Mom-Off-Mom | 30.1 mm | 11.1 mm | 55 °C | -20 ░C | Concave (Curved) |

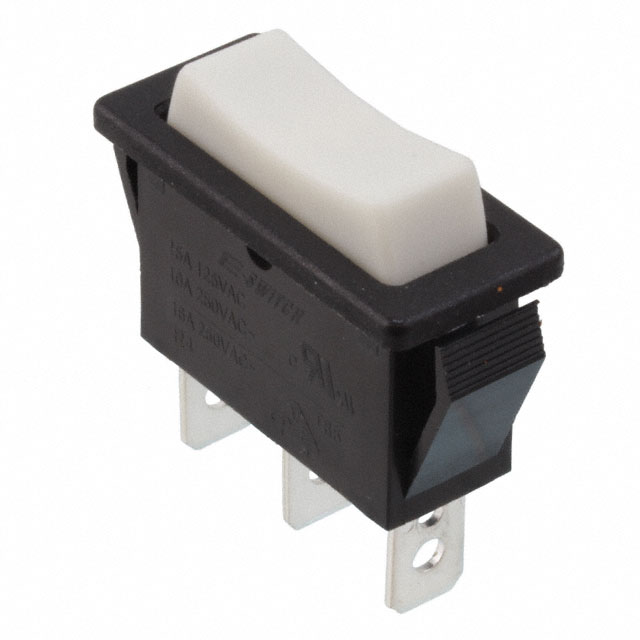

 E-Switch | 6000 Cycles | 30000 Steps | SPDT | 15 A | No Marking | White | 125 V | UL | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | Mom-Off-Mom | 30.1 mm | 11.1 mm | 55 °C | -20 ░C | Concave (Curved) |
