BD71815 Series

System PMIC for i.MX 7Solo/7Dual

Catalog

System PMIC for i.MX 7Solo/7Dual

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Contents	Utilized IC / Part	Mounting Type	Voltage/Current - Output 3	Voltage/Current - Output 3	Voltage/Current - Output 2	Voltage/Current - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	w/Supervisor	Package / Case	w/Sequencer	w/LED Driver	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Topology	Number of Outputs	Frequency - Switching	Voltage/Current - Output 1	Voltage/Current - Output 1

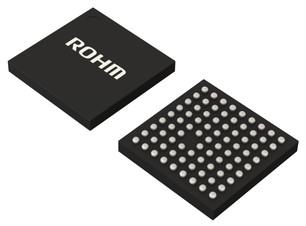

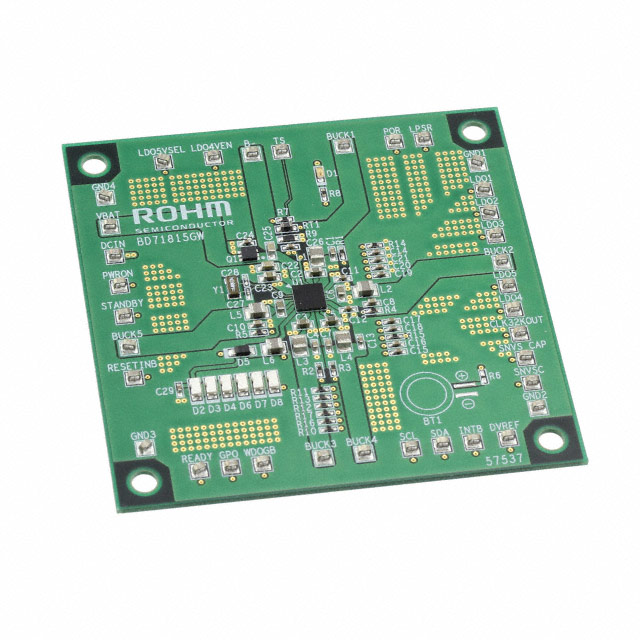

Rohm Semiconductor BD71815AGW-EVK-101	Fully Populated	13 Non-Isolated Outputs Non-Isolated	13	Board(s)	DC/DC Step Down with LDO	3.5 V	28 V	Buck	Board(s)	BD71815A
Rohm Semiconductor BD71815AGW-E2											Surface Mount	Programmable	500 mA	Programmable	800 mA	85 °C	-40 C		55-UFBGA WLCSP			UCSP55M4C	2.9 V	5.5 V	Linear (LDO) (8) Step-Down (Buck) Synchronous (5)	13	6 MHz	Programmable	1 A

Catalog

System PMIC for i.MX 7Solo/7Dual

Description

BD71815AGW is a single-chip power management IC for battery-powered portable devices. The IC integrates 5 buck converters, 8 LDOs, a boost driver for LED, and a 500mA single-cell linear charger. Also included is a Coulomb counter, a real-time clock (RTC), a 32 kHz crystal oscillator and a general-purpose output (GPO).The IC’s buck converters supply power to the application processor as well as system peripherals such as DDR memory, wireless modules, and touch controllers. These regulators maintain high efficiency over a wide range of current loads by supporting both PFM and PWM modes. They also operate at a high switching frequency of 6MHz, which allows the use of smaller and cheaper inductors and capacitors. The regulator supplying the processor core also supports Dynamic Voltage Scaling (DVS).
