PAV69278 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

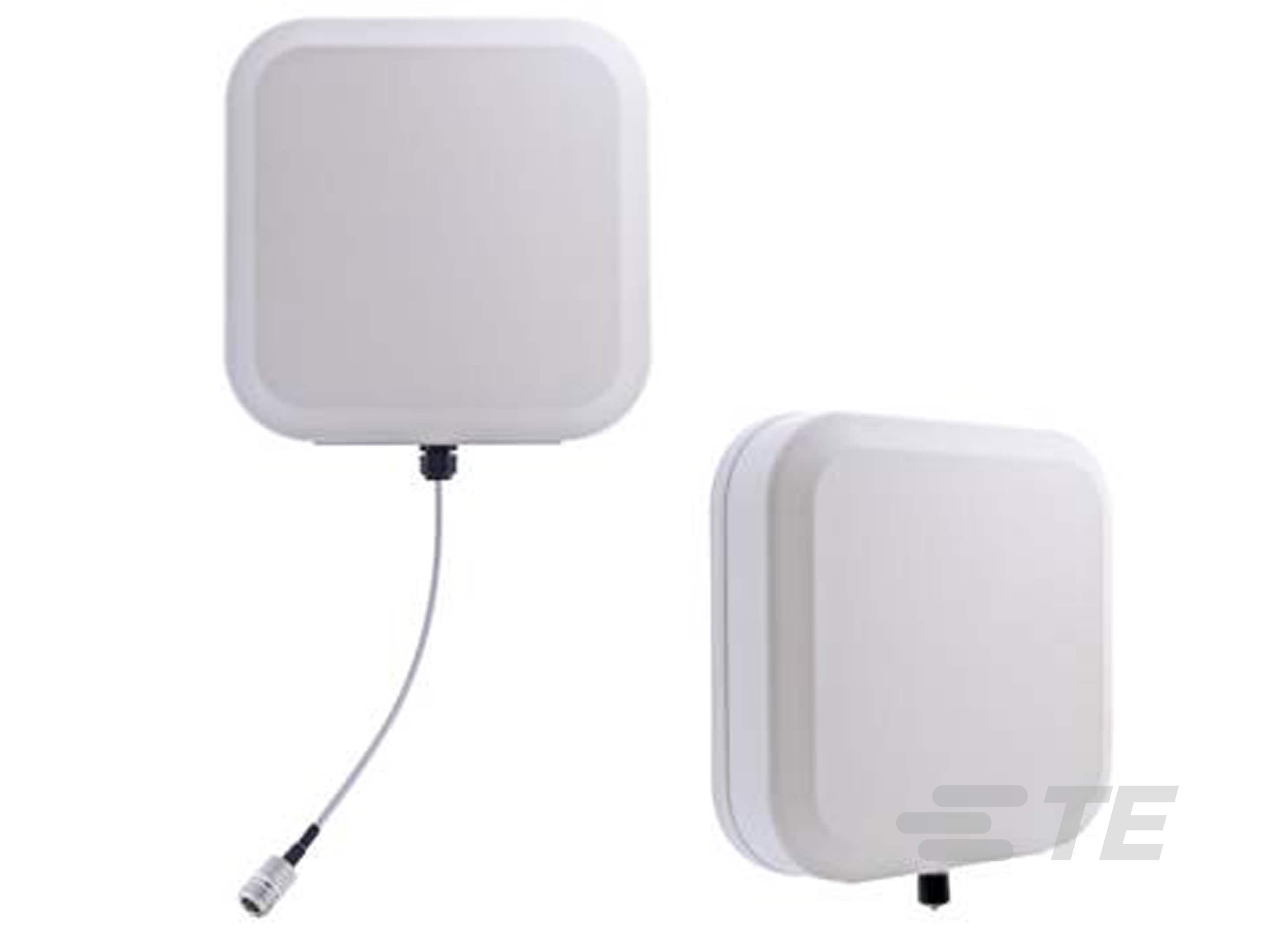

ANT,MOUNT,V-POL,1-PORT 30CM,698-960,1710

Part	Gain	RF Family/Standard	Antenna Type	Mounting Type	VSWR	Number of Bands	Ingress Protection	Termination	Applications	Features	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Power - Max [Max]	Height (Max) [z]	Height (Max) [z]	Frequency Group
TE Connectivity AMP Connectors PAV69278PO-30NF	7.6 dBi 7.8 dBi 8.7 dBi 8.8 dBi	Cellular	Panel	Bracket Mount	1.5 1.7 1.8 1.9	8	IP67	N Type Female	AWS GSM LTE PCS UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.7 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278PI-FNF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	AWS GSM LTE PCS UMTS		2.7 GHz 960 MHz	1.71 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278O-30NF	7.6 dBi 8.1 dB	Cellular	Panel	Bracket Mount	1.8	2	IP67	N Type Female	AWS GSM LTE PCS UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278I-FNF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	GSM LTE UMTS		2.7 GHz 960 MHz	1.71 GHz 698 MHz	829 MHz 2200 GHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278O-30NF	7.6 dBi 8.1 dB	Cellular	Panel	Bracket Mount	1.8	2	IP67	N Type Female	AWS GSM LTE PCS UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278I-FNF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	GSM LTE UMTS		2.7 GHz 960 MHz	1.71 GHz 698 MHz	829 MHz 2200 GHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278I-30NF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	GSM LTE UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	829 MHz 2200 GHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278PO-30NF	7.6 dBi 7.8 dBi 8.7 dBi 8.8 dBi	Cellular	Panel	Bracket Mount	1.5 1.7 1.8 1.9	8	IP67	N Type Female	AWS GSM LTE PCS UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.7 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278I-30NF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	GSM LTE UMTS	Cable - 300mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	829 MHz 2200 GHz	50 W	2.413 in	61.3 mm	Wide Band
TE Connectivity AMP Connectors PAV69278PI-FNF	8 dBi	Cellular	Panel	Chassis Mount	2	2		N Type Female	AWS GSM LTE PCS UMTS		2.7 GHz 960 MHz	1.71 GHz 698 MHz	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	50 W	2.413 in	61.3 mm	Wide Band
