M3CKK Series

Catalog

IDC CABLE - MKC24K/MC24G/MPK24K

Part	Length	Length	Length	Pitch - Connector	Pitch - Connector	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Cable Termination	Connector Type	Contact Finish	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Length [x]	Length [x]	Number of Positions [custom]	Color

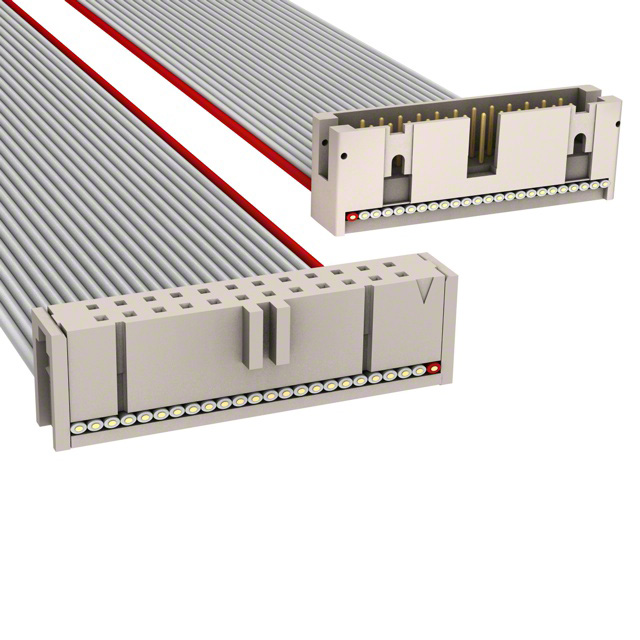

3M Electronic Specialty M3CKK-2406J	152.4 mm	0.5 '	6 "	0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	24	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2
3M Electronic Specialty M3CKK-2418J				0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	24	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2	457.2 mm	1.5 ft
3M Electronic Specialty M3CKK-3460K	1.52 m	60 in		0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám		Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2			34	Multiple Twisted Pair (Flat)

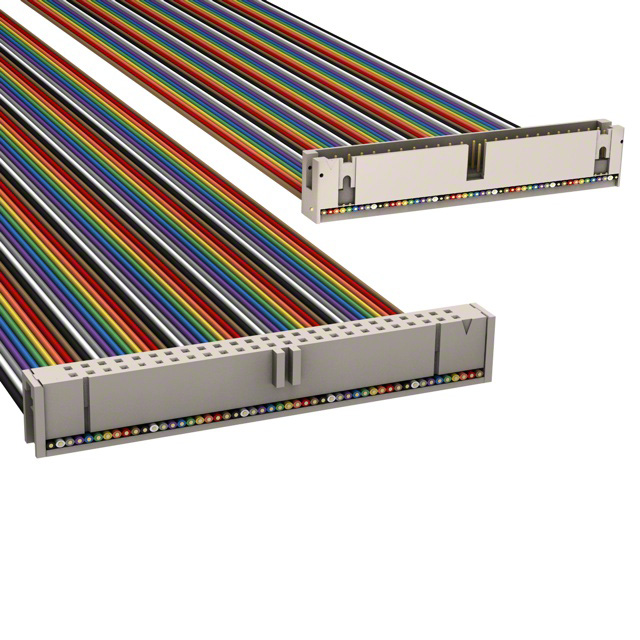

3M Electronic Specialty M3CKK-5036R	91.44 cm	3 ft		0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	50	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2				Multiple Ribbon
3M Electronic Specialty M3CKK-3406R	152.4 mm	0.5 '	6 "	0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám		Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2			34	Multiple Ribbon
3M Electronic Specialty M3CKK-5020K	508 mm	1.67 ft		0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	50	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2				Multiple Twisted Pair (Flat)

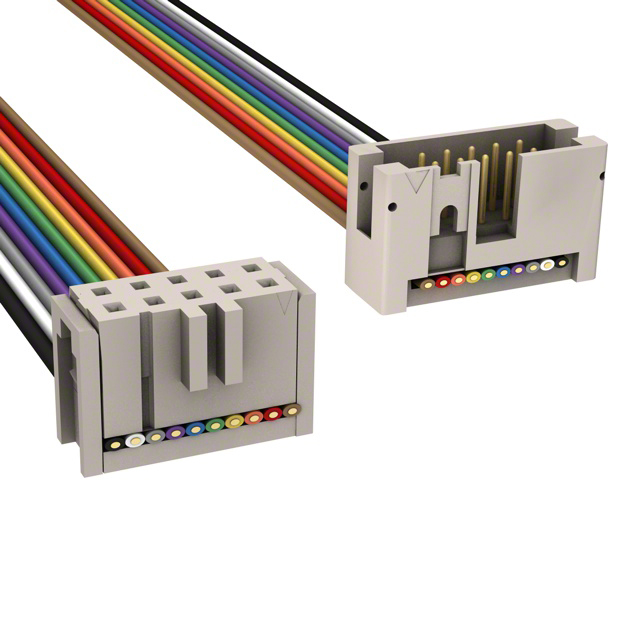

3M Electronic Specialty M3CKK-1006R	152.4 mm	0.5 '	6 "	0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	10	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2				Multiple Ribbon

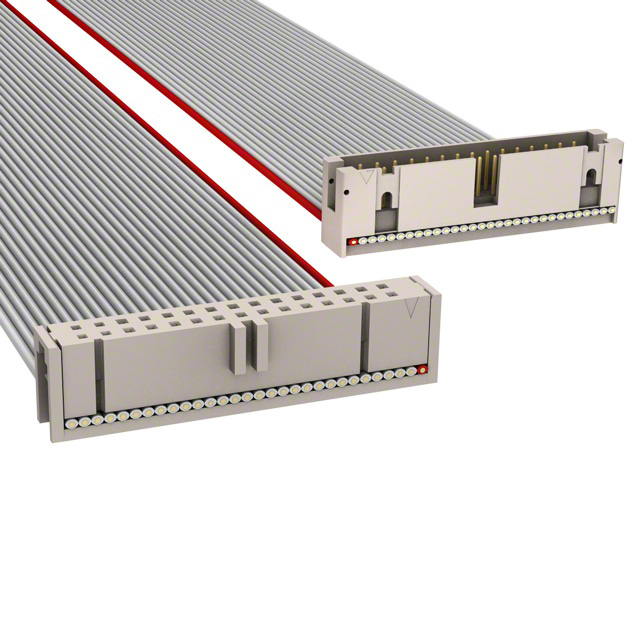

3M Electronic Specialty M3CKK-3006J	152.4 mm	0.5 '	6 "	0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	30	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2
3M Electronic Specialty M3CKK-2060K	1.52 m	60 in		0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	20	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2				Multiple Twisted Pair (Flat)
3M Electronic Specialty M3CKK-1618J				0.1 in	2.54 mm	Unshielded	30 Áin	0.76 Ám	16	Polarizing Key	IDC	Socket to Plug	Gold	0.05 in	1.27 mm	2	457.2 mm	1.5 ft
