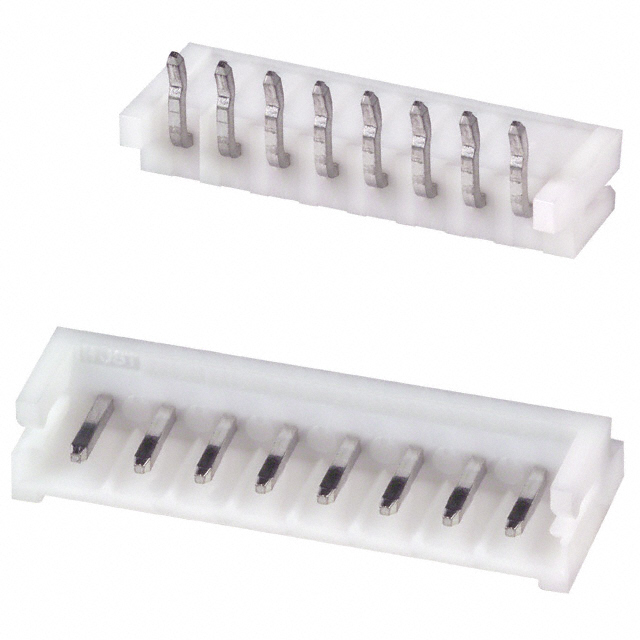

S8B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 8POS 2.5MM
| Part | Number of Rows | Voltage Rating | Fastening Type | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Style | Insulation Material | Insulation Color | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Mounting Type | Number of Positions Loaded | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Contact Finish - Post | Material Flammability Rating | Shrouding | Connector Type | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 1 | 250 V | Latch Lock | 0.165 in | 4.2 mm | 85 °C | -25 °C | 8 | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | Natural | 4 mm | 0.157 in | 3 A | Right Angle Through Hole | All | Press-Fit Solder | 0.126 " | 3.2 mm | Brass | Tin | UL94 V-0 | Shrouded - 3 Wall | Header | Male Pin | 2.5 mm | 0.098 in | Square |
