845-071 Series
Manufacturer: EDAC Inc.
Beta
⌘K

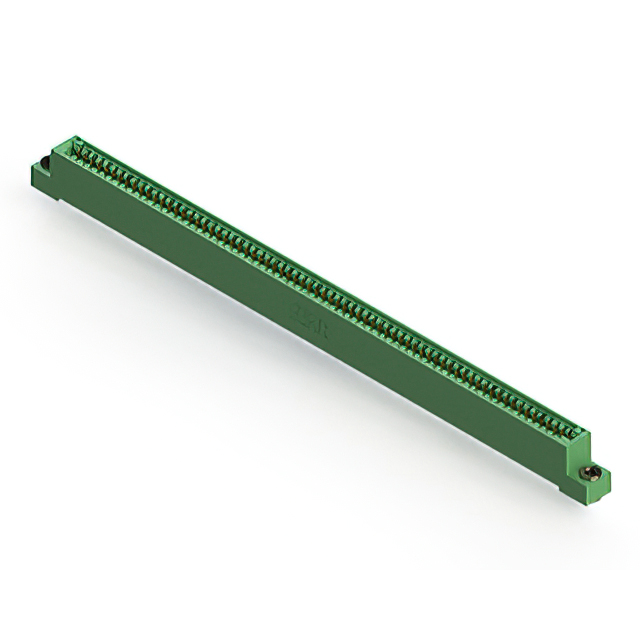

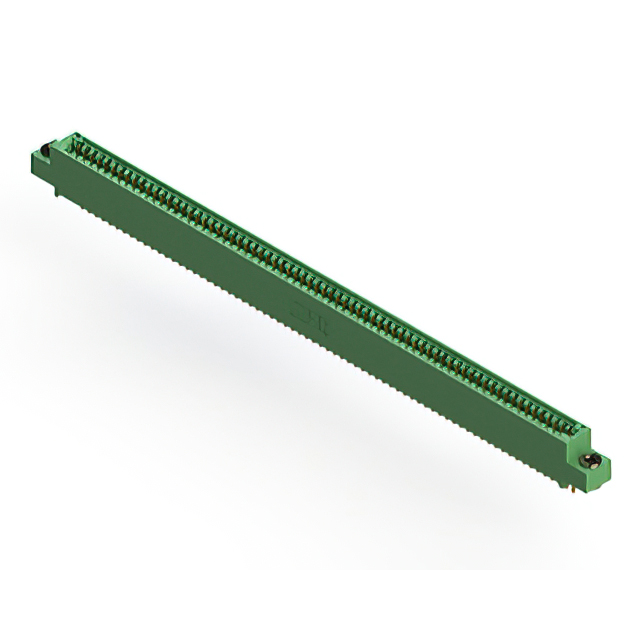

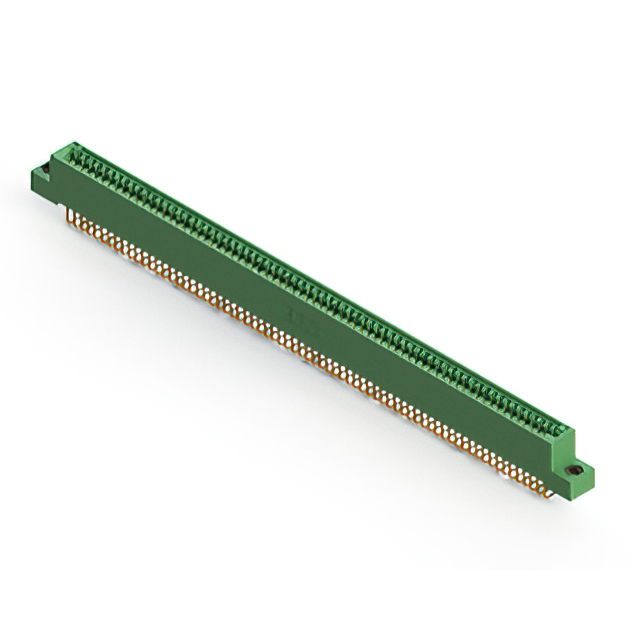

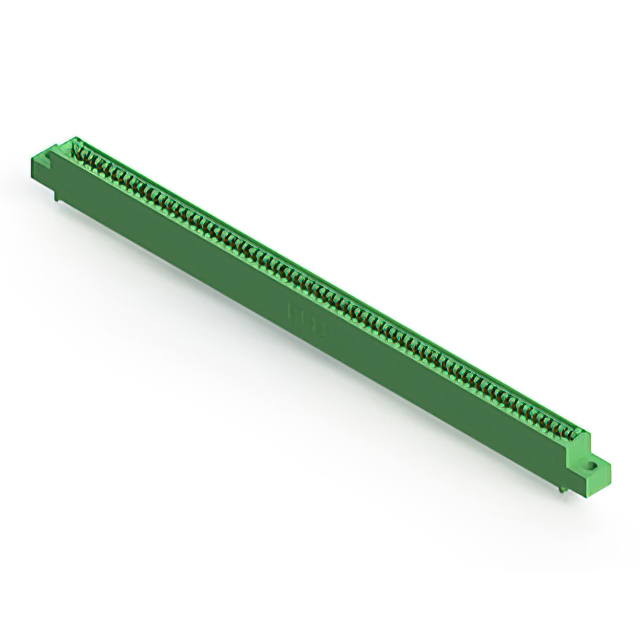

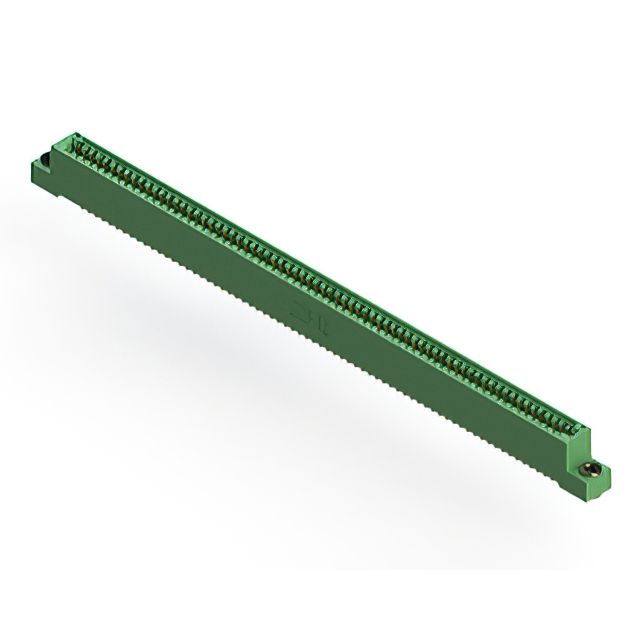

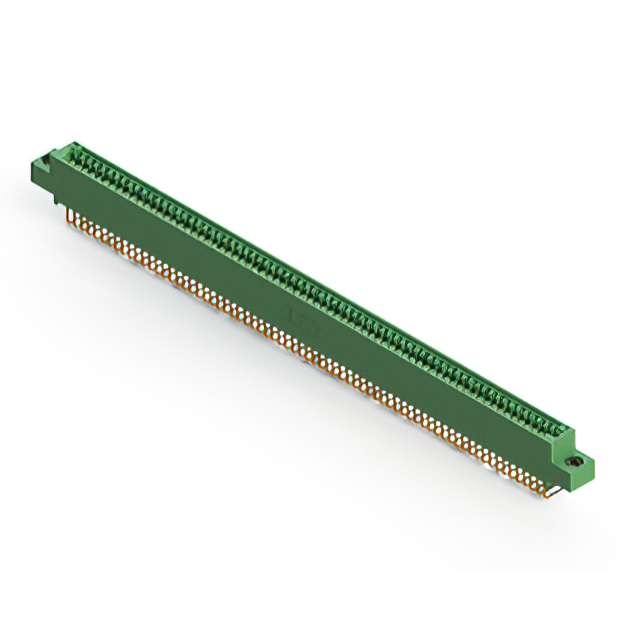

CONN EDGE SINGLE FML 71POS 0.100
| Part | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Material - Insulation | Pitch | Pitch | Termination Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Color | Number of Positions | Contact Material | Mounting Type | Number of Rows | Contact Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Single | 0.156 " | 3.96 mm | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | |
 EDAC Inc. | Single | 0.116 " | 2.95 mm | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | Floating Bobbin Flush Mount |
 EDAC Inc. | Single | 0.116 " | 2.95 mm | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Single | 0.156 " | 3.96 mm | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | |
 EDAC Inc. | Single | Wire Wrap | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Single | 0.156 " | 3.96 mm | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Single | 0.116 " | 2.95 mm | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | Floating Bobbin Flush Mount |
 EDAC Inc. | Single | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Through Hole | 1 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Single | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Right Angle Through Hole | 1 | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Single | 0.116 " | 2.95 mm | Solder | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | 71 | Green | 71 | Copper Alloy | Right Angle Through Hole | 1 | Cantilever | Floating Bobbin Top Mount Opening |
