2029056 Series

Catalog

3P VAL-U-LOK SR HDR SN V0 W/DH

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Features	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Fastening Type	Current Rating (Amps)	Termination	Shrouding	Style	Insulation Material	Contact Shape	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions
TE Connectivity AMP Connectors 2029056-3	General Purpose Industrial Lighting	2.03 µm	80 µin	600 VAC	Board Lock	All	Through Hole	0.138 in	3.5 mm	12.8 mm	0.504 "	Header	Male Pin	0.165 in	4.2 mm	UL94 V-0	1	2.03 µm	80 µin	Tin	Locking Ramp	9 A	Solder	Shrouded - 4 Wall	Board to Cable/Wire	Nylon Polyamide (PA)	Square	Natural	-40 C	105 ░C	Brass Alloy

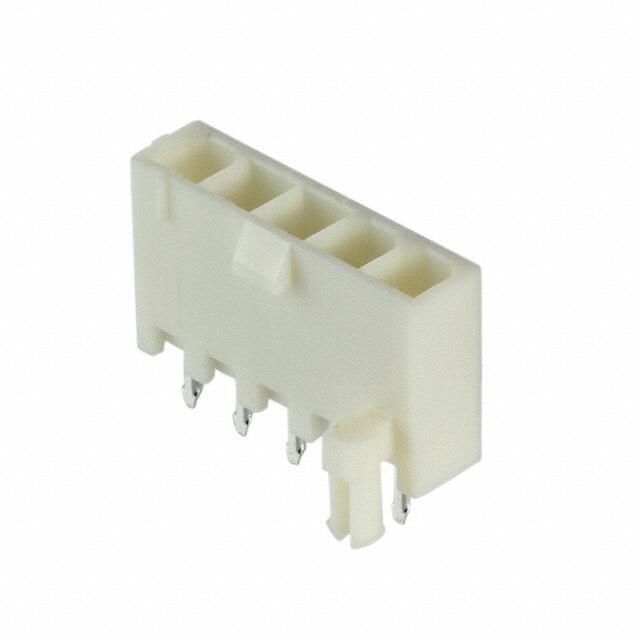

TE Connectivity AMP Connectors 2029056-5	General Purpose Industrial Lighting	2.03 µm	80 µin	600 VAC	Board Lock	All	Through Hole	0.138 in	3.5 mm	12.8 mm	0.504 "	Header	Male Pin	0.165 in	4.2 mm	UL94 V-0	1	2.03 µm	80 µin	Tin	Locking Ramp	9 A	Solder	Shrouded - 4 Wall	Board to Cable/Wire	Nylon Polyamide (PA)	Square	Natural	-40 C	105 ░C	Brass Alloy	5
