TS2L5F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

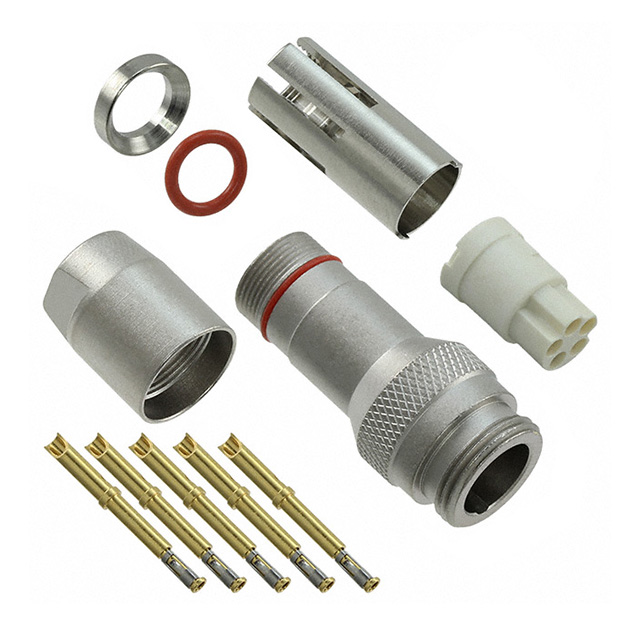

CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Orientation | Shell Material | Primary Material | Insert Material | Color | Number of Positions | Fastening Type | Connector Type | Contact Finish - Mating | Contact Material | Termination | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Mounting Type | Voltage Rating | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Shell Finish | Applications | Features | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Keyed | Copper Alloy | Metal | Liquid Crystal Polymer (LCP) | Silver | 5 | Threaded | Receptacle Female Sockets | Gold | Copper Alloy | Crimp Solder Cup | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | Free Hanging (In-Line) | 125 VAC | IP66 IP67 IP68 | -40 C | 135 °C | Copper Alloy Nickel | Electroless Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Backshell | Shielded |
