H3190 Series

Catalog

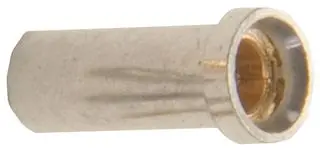

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, BERYLLIUM COPPER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Force [Max]	Insertion Force [Min]	Length - Overall [custom]	Length - Overall [custom]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Tail Type	Contact Material	Contact Finish	Socket Depth	Socket Depth
Harwin Inc. H3190-05	-55 C	125 °C	6 N	2 N	0.118 in	3 mm	1.09 mm	0.043 in	0.99 mm	0.039 in	1.07 mm	0.042 in	0.057 in	1.45 mm	0.46 mm	0.51 mm	0.02 in	0.018 in	Solder	No Tail	Beryllium Copper	Gold	2.3 mm	0.091 in
