S05B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

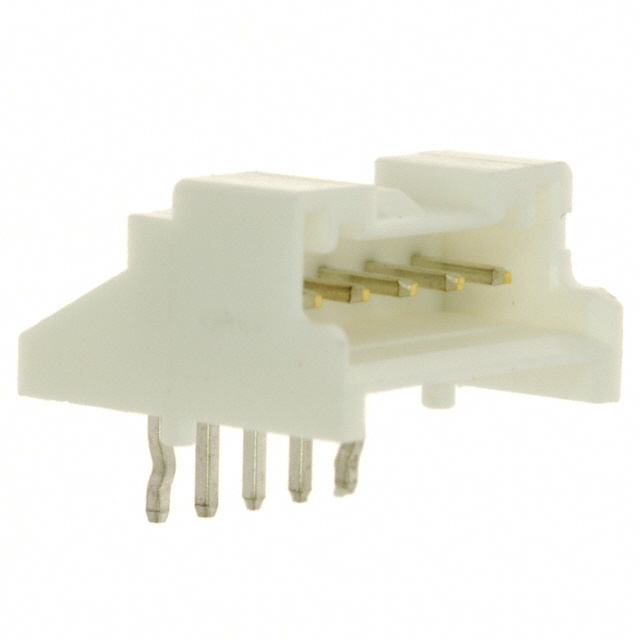

CONN HEADER R/A 5POS 2MM
| Part | Style | Termination | Contact Material | Contact Length - Post [x] | Contact Length - Post | Current Rating (Amps) | Insulation Height | Insulation Height | Material Flammability Rating | Number of Positions | Voltage Rating | Contact Shape | Insulation Material | Number of Positions Loaded | Number of Rows | Mounting Type | Contact Finish - Post | Insulation Color | Fastening Type | Shrouding | Connector Type | Contact Type | Pitch - Mating | Pitch - Mating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Kinked Pin Solder | Copper Alloy | 0.134 " | 3.4 mm | 3 A | 0.256 in | 6.5 mm | UL94 V-0 | 5 | 250 V | Square | Polybutylene Terephthalate (PBT) Glass Filled | All | 1 | Right Angle Through Hole | Tin | Natural | Locking Ramp | Shrouded - 4 Wall | Header | Male Pin | 0.079 " | 2 mm | Board Guide | 85 °C | -25 °C | 0.126 in | 3.2 mm |
