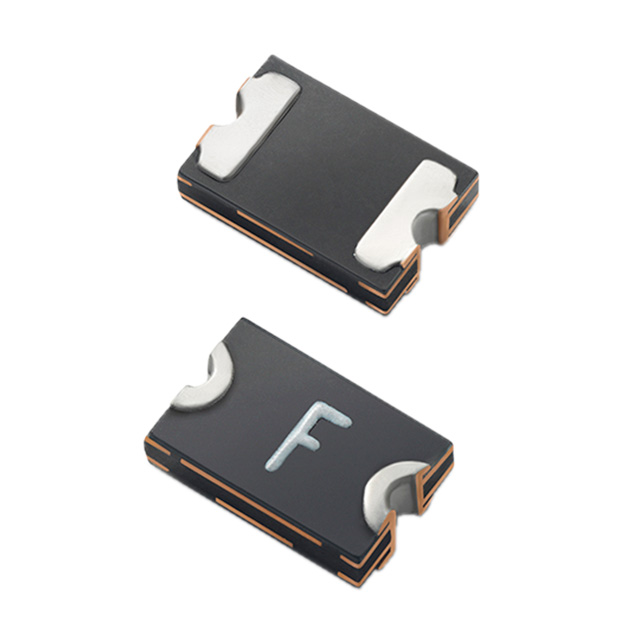

picoASMD Series
Manufacturer: LITTELFUSE
Beta
⌘K
RESETTABLE FUSES - PPTC .1A 15VDC 20A 0805 AEC-Q200
| Part | Current - Trip (It) | Current - Hold (Ih) (Max) [Max] | Time to Trip | Voltage - Max [Max] | Thickness (Max) [Max] | Thickness (Max) [Max] | Package / Case | Resistance - Post Trip (R1) (Max) [Max] | Qualification | Type | Grade | Current - Max [Max] | Size / Dimension [y] | Size / Dimension | Size / Dimension [x] | Resistance - Initial (Ri) (Min) [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 300 mA | 100 mA | 600 ms | 15 V | 0.04 " | 1.02 mm | 0805 | 11 Ohms | AEC-Q200 | Polymeric | Automotive | 20 A | 0.055 in | 1.4 mm 2.1 mm | 0.083 " | 1.5 Ohms | Surface Mount |
