M5154 Series

Catalog

TRANSDUCER 4-20MA 100PSI

Part	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Output Type	Applications	Package / Case	Accuracy	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Port Size	Port Size	Port Size	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]

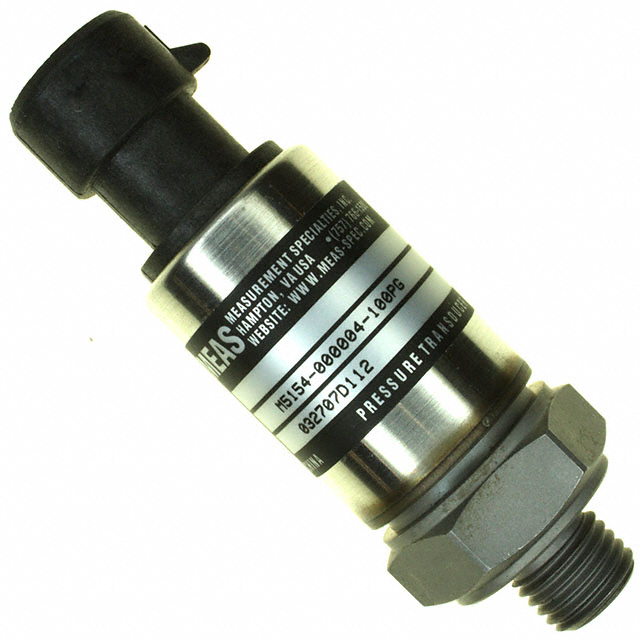

TE Connectivity AMP Connectors M5154-000004-100PG	689.48 kPa	100 PSI	200 PSI	1378.95 kPa	Analog Current	Industrial Automation	Cylinder	1 %	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	9 V	30 VDC	Vented Gauge	0.4375 in	Male	11.11 mm	Threaded
TE Connectivity AMP Connectors M5154-000004-025PG	172.37 kPa	25 PSI	50 PSI	344.74 kPa	Analog Current	Industrial Automation	Cylinder	1 %	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	9 V	30 VDC	Vented Gauge	0.4375 in	Male	11.11 mm	Threaded
TE Connectivity AMP Connectors M5154-000004-250PG	1723.69 kPa	250 PSI	500 PSI	3447.38 kPa	Analog Current	Industrial Automation	Cylinder	1 %	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	9 V	30 VDC	Vented Gauge	0.4375 in	Male	11.11 mm	Threaded
TE Connectivity AMP Connectors M5154-000004-050PG	344.74 kPa	50 PSI	100 PSI	689.48 kPa	Analog Current	Industrial Automation	Cylinder	1 %	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	9 V	30 VDC	Vented Gauge	0.4375 in	Male	11.11 mm	Threaded

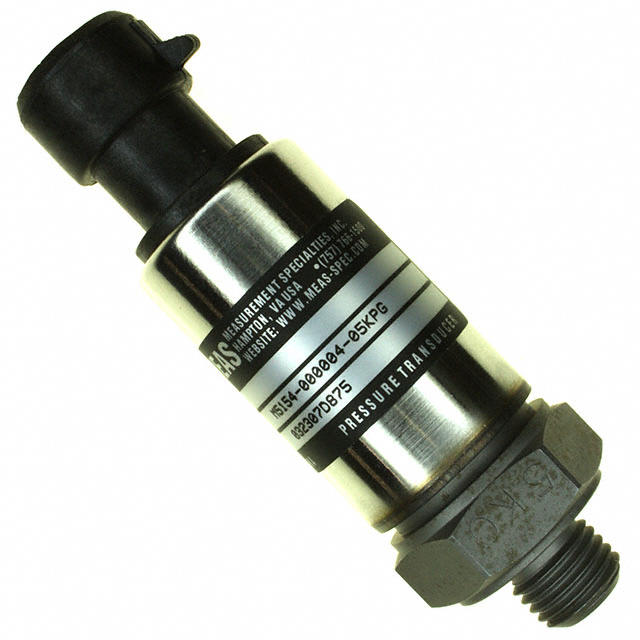

TE Connectivity AMP Connectors M5154-000004-05KPG	34473.79 kPa	5000 PSI			Analog Current	Industrial Automation	Cylinder	1 %	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	9 V	30 VDC	Vented Gauge	0.4375 in	Male	11.11 mm	Threaded	10000 PSI	68947.57 kPa
