SD-60 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN RCPT FMALE DIN 6P SOLDER

Part	Contact Finish - Mating	Features	Shielding	Voltage Rating	Color	Shell Size - Insert	Contact Material	Current Rating (Amps)	Insert Material	Shell Material	Mounting Type	Number of Positions	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Finish	Orientation	Fastening Type	Connector Type	Material Flammability Rating	Insert Material [custom]	Insert Material [custom]	Mounting Feature
Same Sky (Formerly CUI Devices) SD-60J	Silver	Strain Relief	Unshielded	100 VAC	Black	DIN (240 Degree)	Brass	2 A	Polycarbonate (PC)	Steel	Free Hanging (In-Line)	6	Solder	110 °C	-5 °C	Metal	Black Nickel	Keyed	Push-Pull	Receptacle Female Sockets
Same Sky (Formerly CUI Devices) SD-60BV			Shielded	24 VDC	Silver	DIN (240 Degree)	Brass			Iron Sheet	Through Hole	6	Solder	60 °C	-20 ░C	Metal	Nickel	Keyed	Push-Pull	Receptacle Female Sockets	UL94 V-0
Same Sky (Formerly CUI Devices) SD-60BV			Shielded	24 VDC	Silver	DIN (240 Degree)				Iron Sheet	Through Hole	6	Solder	60 °C	-20 ░C	Metal	Nickel	Keyed	Push-Pull	Receptacle Female Sockets	UL94 V-0

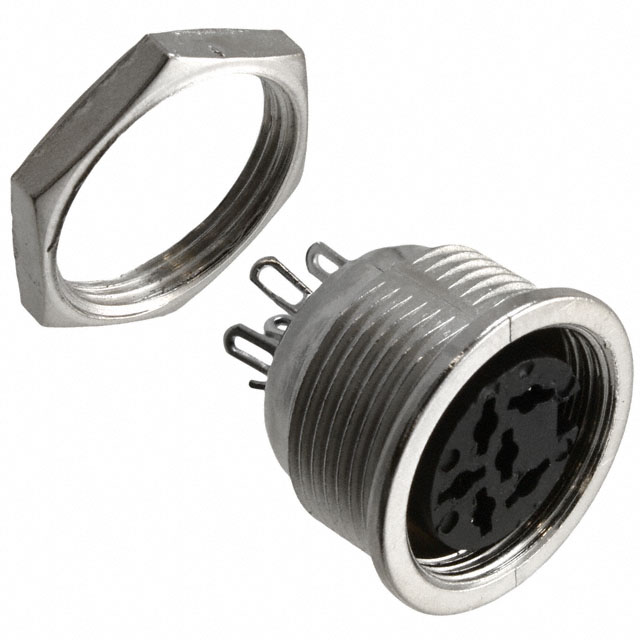

Same Sky (Formerly CUI Devices) SD-60LS			Shielded	100 VAC	Silver	DIN (240 Degree)	Brass	2 A		Zinc	Panel Mount	6	Solder Eyelet(s)	85 °C	-40 C	Metal	Nickel	Keyed	Threaded	Receptacle Female Sockets	UL94 HB	Nylon	Polyamide (PA)	Bulkhead - Rear Side Nut

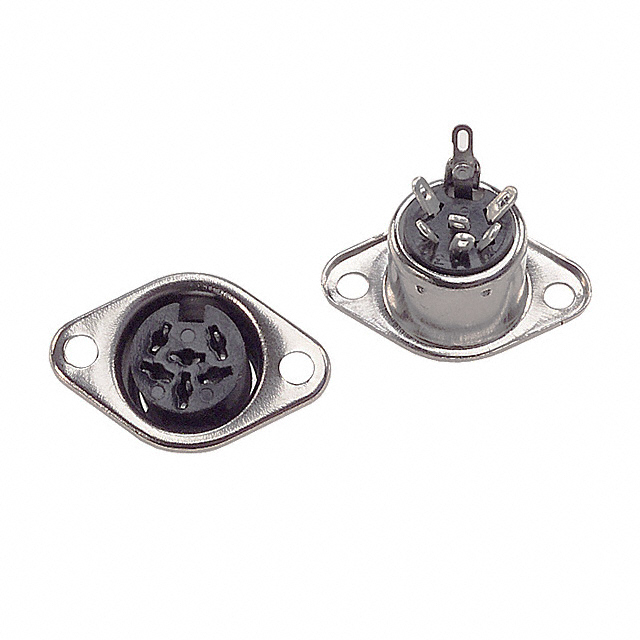

Same Sky (Formerly CUI Devices) SD-60SN	Silver		Shielded	12 VDC 100 VAC	Silver	DIN (240 Degree)	Brass		Polybutylene Terephthalate (PBT)	Steel	Panel Mount	6	Solder Eyelet(s)	70 °C	5 °C	Metal	Nickel	Keyed	Push-Pull	Receptacle Female Sockets	UL94 V-0			Flange
Same Sky (Formerly CUI Devices) SD-60LS			Shielded	100 VAC	Silver	DIN (240 Degree)		2 A		Zinc	Panel Mount	6	Solder Eyelet(s)	85 °C	-40 C	Metal	Nickel	Keyed	Threaded	Receptacle Female Sockets	UL94 HB			Bulkhead - Rear Side Nut
