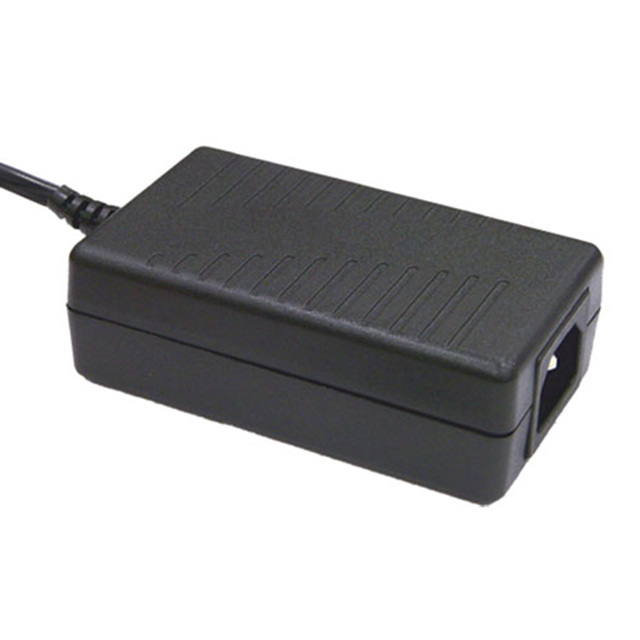

GS15A Series

Catalog

AC/DC DESKTOP ADAPTER 15V 15W

Part	Voltage - Output	No Load Power Consumption	Output Connector [x]	Output Connector [diameter]	Output Connector	Input Type	Approval Agency	Power (Watts)	Efficiency	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Form	Applications	Cord Length	Cord Length	Polarization	Input Connector	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]
MEAN WELL USA Inc. GS15A-4P1J	15 V	75 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	Cord (Sold Separately)	CE cULus GS	15 W	Level VI	International	1.29 in	58.5 mm	3.94 in	100 mm	32.8 mm	2.3 in	1 A	Desktop (Class I)	ITE (Commercial)	1.2 m	47.2 in	Positive Center	IEC 320-C14	50 °C	264 VAC	90 VAC
MEAN WELL USA Inc. GS15A-3P1J	12 V	75 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	Cord (Sold Separately)	CE cULus GS	15 W	Level VI	International	1.29 in	58.5 mm	3.94 in	100 mm	32.8 mm	2.3 in	1.25 A	Desktop (Class I)	ITE (Commercial)	1.2 m	47.2 in	Positive Center	IEC 320-C14	50 °C	264 VAC	90 VAC
MEAN WELL USA Inc. GS15A-1P1J	5 V	75 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	Cord (Sold Separately)	CE cULus GS	12 W	Level VI	International	1.29 in	58.5 mm	3.94 in	100 mm	32.8 mm	2.3 in	2.4 A	Desktop (Class I)	ITE (Commercial)	1.2 m	47.2 in	Positive Center	IEC 320-C14	50 °C	264 VAC	90 VAC
