DRC Series

Catalog

DIN RAIL POWER SUPPLIES 100W 85-264VAC 12VDC 7.1A

Part	Voltage - Output 1	Standard Number	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Power (Watts)	Applications	Approval Agency	Features	Efficiency
Delta Electronics DRC-12V100W1RZ	12 V	60335-1 61010-1 62368-1	264 VAC	85 VAC	7.1 A	4000 V	1	55.1 mm	2.17 "	70.1 mm	3.44 "	2.76 "	87.4 mm	-30 °C	70 °C	AC	85 W	Household Appliances ITE (Commercial) Laboratory	CB CE cURus EAC KC TUV UKCA	Adjustable Output Universal Input

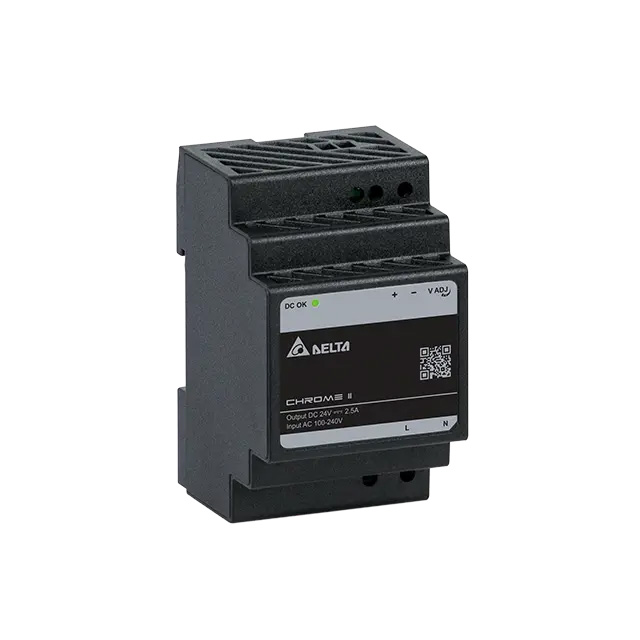

Delta Electronics DRC-24V060W1RZ	24 V	60335-1 61010-1 62368-1	264 VAC	85 VAC	2.5 A	4000 V	1	55.1 mm	2.17 "	52.6 mm	3.44 "	2.07 in	87.4 mm	-30 °C	70 °C	AC	60 W	Household Appliances ITE (Commercial) Laboratory	CB CE cURus EAC KC TUV UKCA	Adjustable Output Universal Input	90.5 %
Delta Electronics DRC-24V100W1AZ	24 V		264 VAC	90 VAC	3.8 A	3000 V	1	91 mm	3.58 in	89.9 mm	2.19 "	3.54 in	55.6 mm	-25 °C	71 °C	AC	100 W	ITE (Commercial)	CB CE cULus cURus TUV	Adjustable Output IP20 Universal Input	80 %
