DEUTSCH DTM Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS HDR,12P, BLK,RA, NI/CU,A

Part	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Current Rating (Amps)	Termination	Features	Contact Shape	Contact Type	Voltage Rating	Insulation Material	Style	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Connector Type	Shrouding	Contact Finish - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating

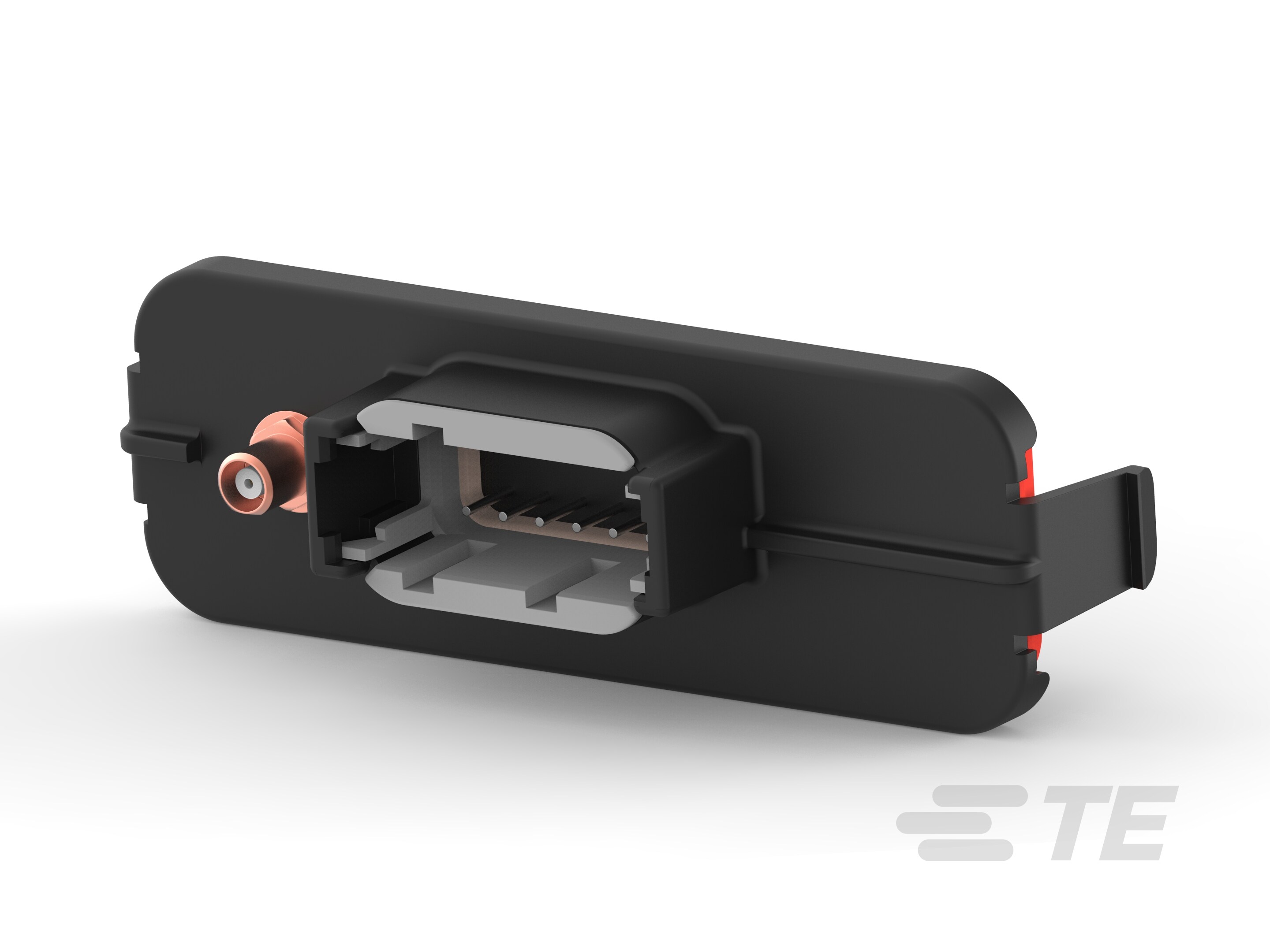

TE Connectivity AMP Connectors DTM13-12PA-R020	2.85 mm	0.112 in	Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder
TE Connectivity AMP Connectors DTM13-12PC-R019			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.346 in	8.8 mm
TE Connectivity AMP Connectors DTM13-12PC-R020			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.346 in	8.8 mm
TE Connectivity AMP Connectors DTM13-12PB-R020			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.346 in	8.8 mm

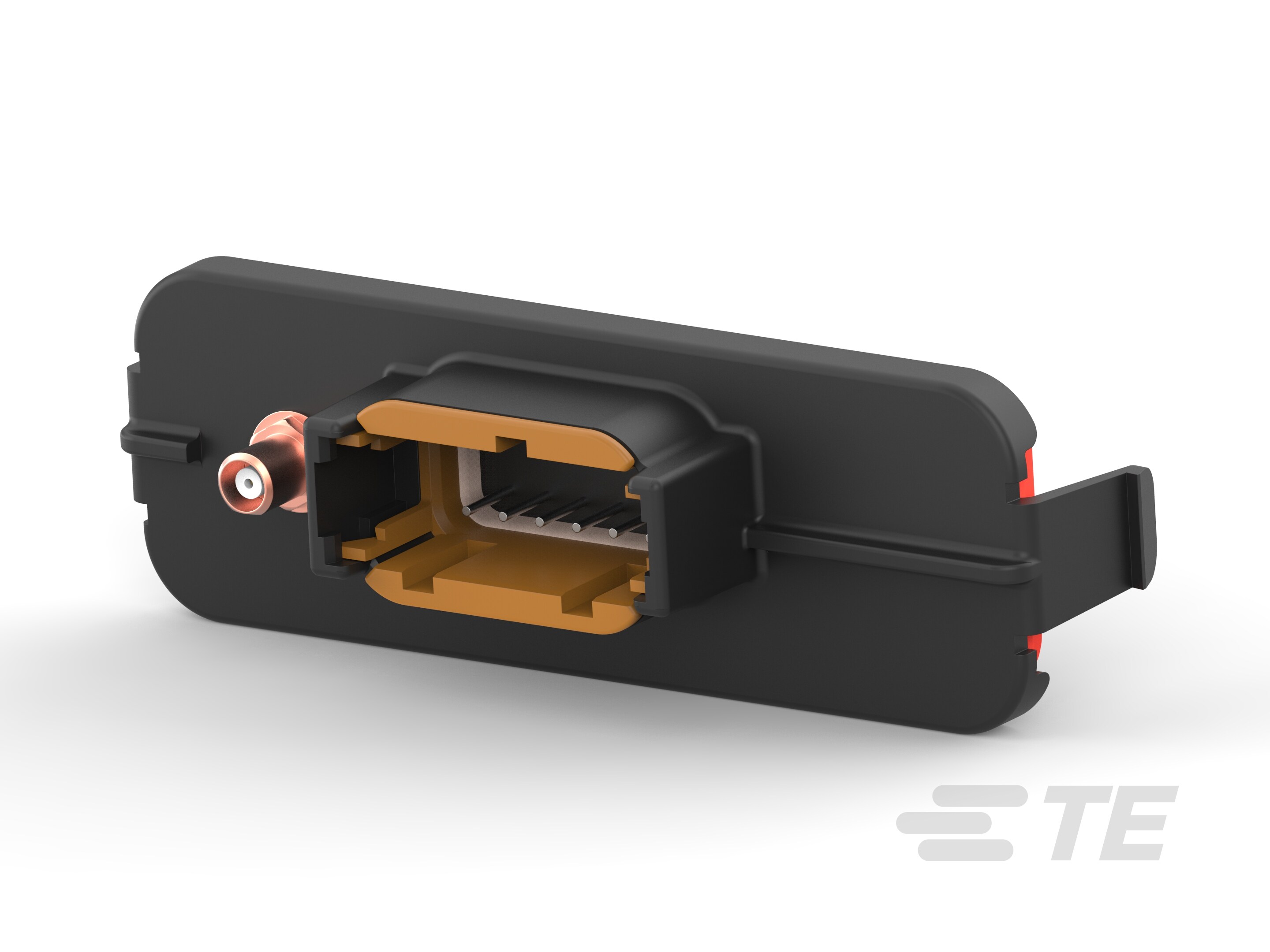

TE Connectivity AMP Connectors DTM13-12PD-R020			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.346 in	8.8 mm
TE Connectivity AMP Connectors DTM13-12PB-R019			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.165 in	4.2 mm

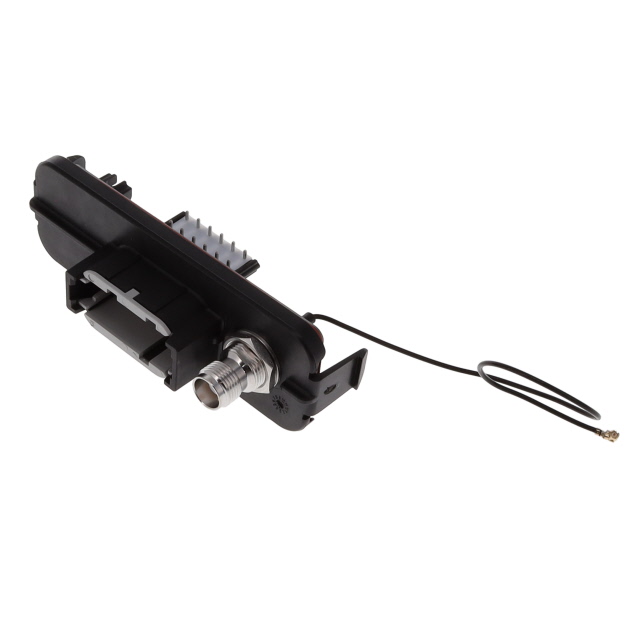

TE Connectivity AMP Connectors DTM13-12PA-R019	2.85 mm	0.112 in	Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder

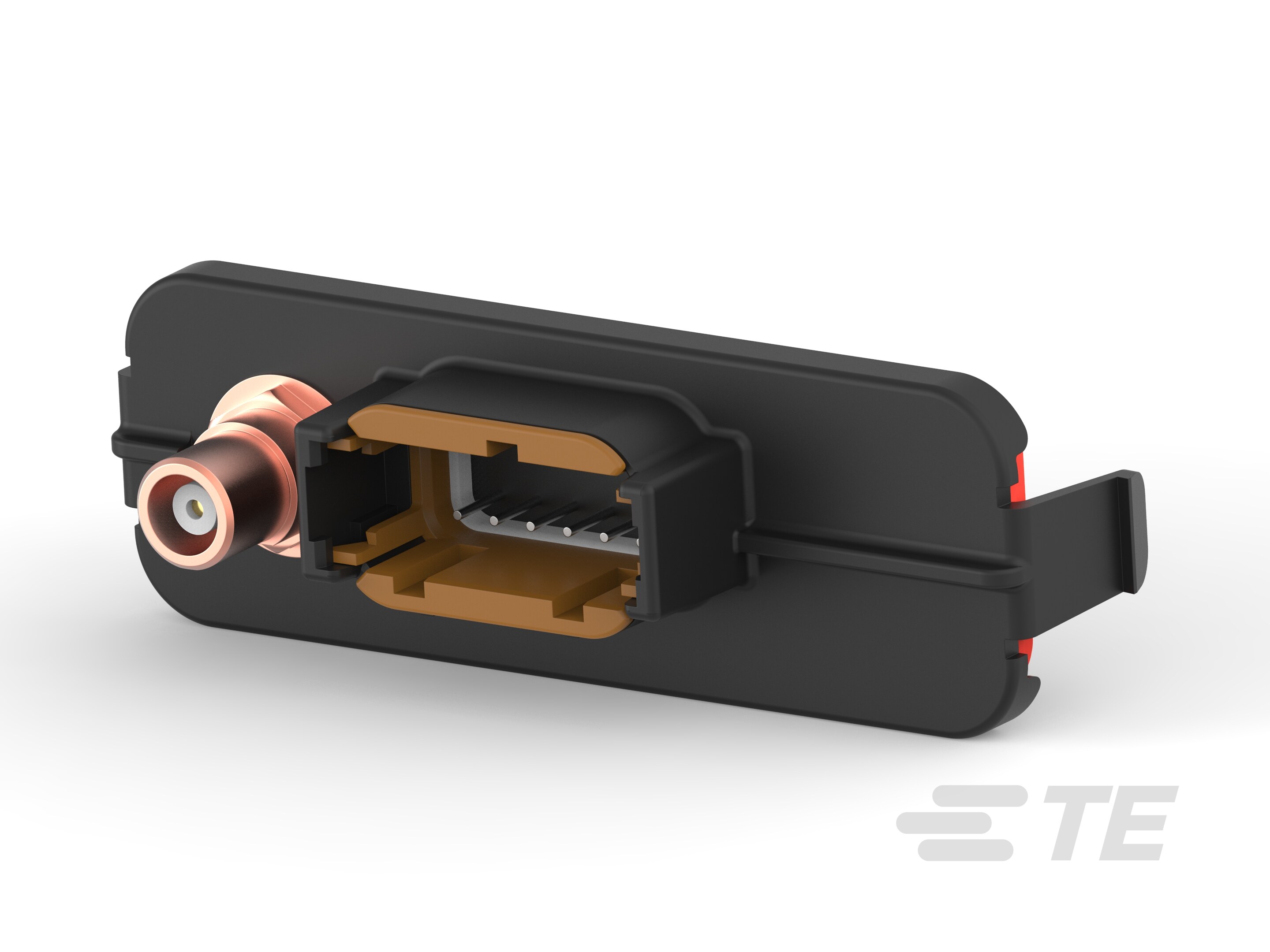

TE Connectivity AMP Connectors DTM13-12PD-R019			Copper Alloy	35 mm	1.378 in	2	7.5 A	Solder	Mounting Flange	Circular	Male Pin	250 VAC	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Tin	All	-55 C	125 °C	12	Panel Mount Right Angle Through Hole	Header	Shrouded - 4 Wall	Nickel	Black	0.165 in	4.2 mm	Latch Holder	UL94 V-0	0.112 in	2.84 mm	0.346 in	8.8 mm
