KMQ-LU Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 18000UF 50 VOLT

Part	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Polarization	Ripple Current @ High Frequency	Voltage - Rated	Ripple Current @ Low Frequency	Applications	Size / Dimension	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKMQ500VSN183MA50S	20 %	0.394 in	10 mm	-40 C	105 ░C	2000 Hrs	1.378 "	35 mm	18000 µF	Through Hole	2.047 in	52 mm	Radial Can - Snap-In	Polar	5.724 A	50 VDC	5.3 A	General Purpose
Chemi-Con EKMQ251VSN182MA50S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1.378 "	35 mm	1800 µF	Through Hole	2.047 in	52 mm	Radial Can - Snap-In	Polar	4.05 A	250 V	2.7 A	General Purpose
Chemi-Con EKMQ201VSN122MQ50S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1 "	25.4 mm	1.2 mF	Through Hole	2.047 in	52 mm	Radial Can - Snap-In	Polar	3.975 A	200 VDC	2.65 A	General Purpose
Chemi-Con EKMQ421VSN471MR45S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1.181 "		470 µF	Through Hole	1.85 in	47 mm	Radial Can - Snap-In	Polar	2.6598 A	420 V	1.86 A	General Purpose	30 mm
Chemi-Con EKMQ251VSN102MR40S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1.181 "		1000 µF	Through Hole			Radial Can - Snap-In	Polar	3.3 A	250 V	2.2 A	General Purpose	30 mm	42 mm	1.654 in
Chemi-Con EKMQ401VSN331MA30S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1.378 "	35 mm	330 µF	Through Hole			Radial Can - Snap-In	Polar	2.0592 A	400 V	1.44 A	General Purpose		32 mm	1.26 in

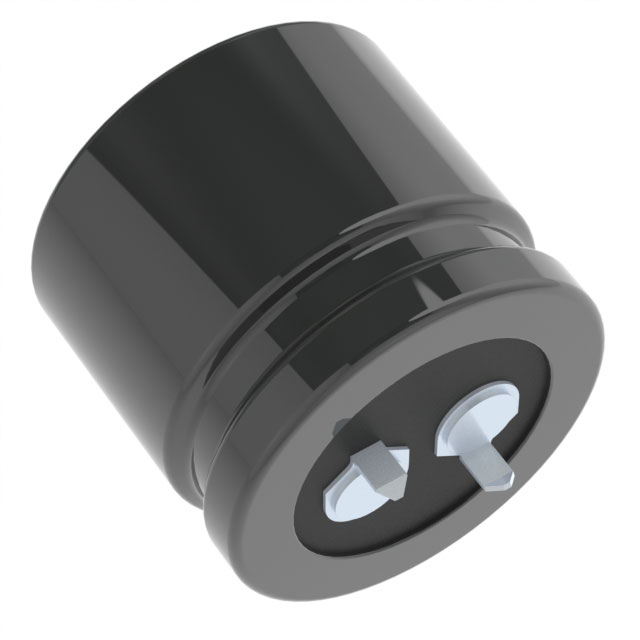

Chemi-Con EKMQ401VSN221MR25S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1.181 "		220 µF	Through Hole	1.063 in	27 mm	Radial Can - Snap-In	Polar	1.573 A	400 V	1.1 A	General Purpose	30 mm
Chemi-Con EKMQ451VSN271MQ50S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1 "	25.4 mm	270 µF	Through Hole	2.047 in	52 mm	Radial Can - Snap-In	Polar	1.7017 A	450 V	1.19 A	General Purpose
Chemi-Con EKMQ251VSN271MP25S	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	0.866 "	22 mm	270 µF	Through Hole	1.063 in	27 mm	Radial Can - Snap-In	Polar	1.65 A	250 V	1.1 A	General Purpose
Chemi-Con EKMQ401VSN271MQ40T	20 %	0.394 in	10 mm	-25 °C	105 ░C	2000 Hrs	1 "	25.4 mm	270 µF	Through Hole			Radial Can - Snap-In	Polar	1.7446 A	400 V	1.22 A	General Purpose		42 mm	1.654 in
