MX5-26 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER R/A 26POS
| Part | Contact Length - Mating | Contact Length - Mating | Contact Material | Shrouding | Number of Rows [custom] | Connector Type | Number of Positions Loaded | Fastening Type | Mounting Type | Number of Positions | Insulation Color | Features | Style | Contact Shape | Termination | Contact Type | Insulation Height | Insulation Height [z] | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post | Insulation Material | Note | Pitch | Pitch | Contact Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 7.21 mm | 0.284 in | Brass | Shrouded - 4 Wall | 2 | Header | All | Locking Ramp | Right Angle Through Hole | 26 | Green | Mounting Flange | Board to Cable/Wire | Square | Solder | Male Pin | 21.89 mm | 0.862 in | Tin | 0.157 in | 4 mm | Polybutylene Terephthalate (PBT) Glass Filled | |||||

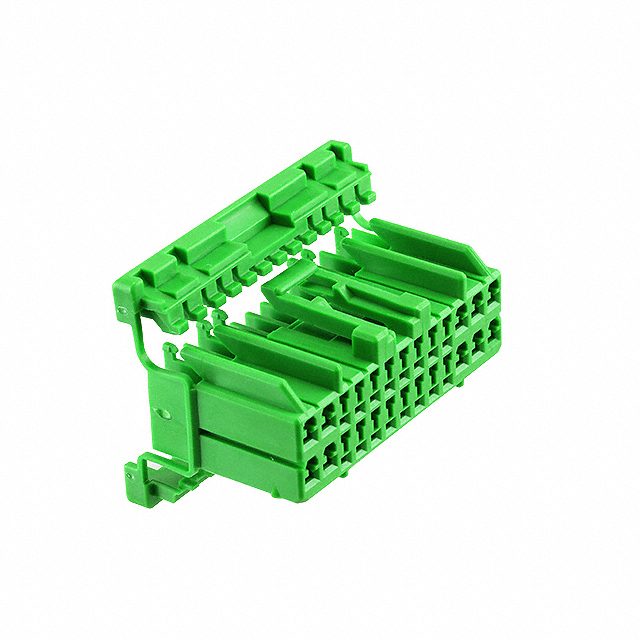

 JAE Electronics | 2 | Receptacle | Free Hanging (In-Line) | 26 | Female Socket | Contacts Not Included | 0.118 in | 3 mm | Crimp | Green |
