21669 Series
Manufacturer: Pflitsch
Beta
⌘K

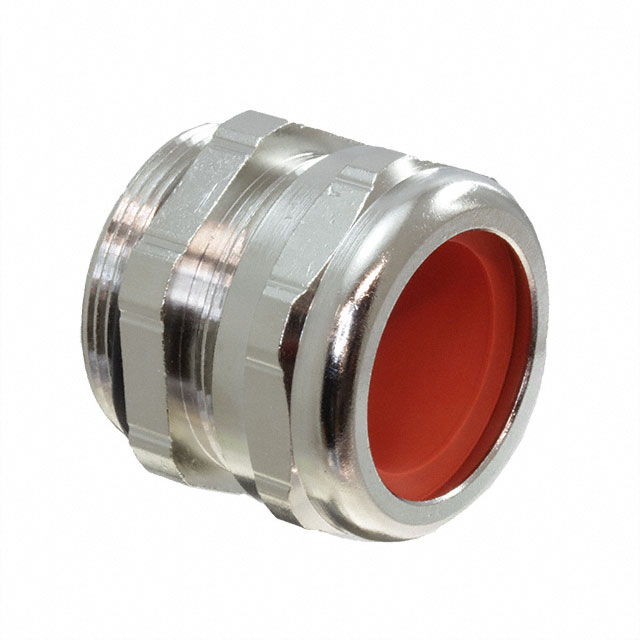

CABLE GLAND 20.07-24.89MM PG29
| Part | Thread Size | Ingress Protection | Outside Cable Diameter (Max) | Outside Cable Diameter (Max) [Max] [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Thread Length | Thread Length | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Panel Hole Size | Panel Hole Size | Color | Type | Includes | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | PG29 | IP68 - Dust Tight Waterproof NEMA 4X | 24.89 mm | 0.98 in | -40 C | 300 °C | 0.31 " | 7.87 mm | 20.07 mm | 0.79 in | 37.1 mm | 1.46 in | Silver | Cable Gland | Sealing Ring | Brass Nickel Plated |
