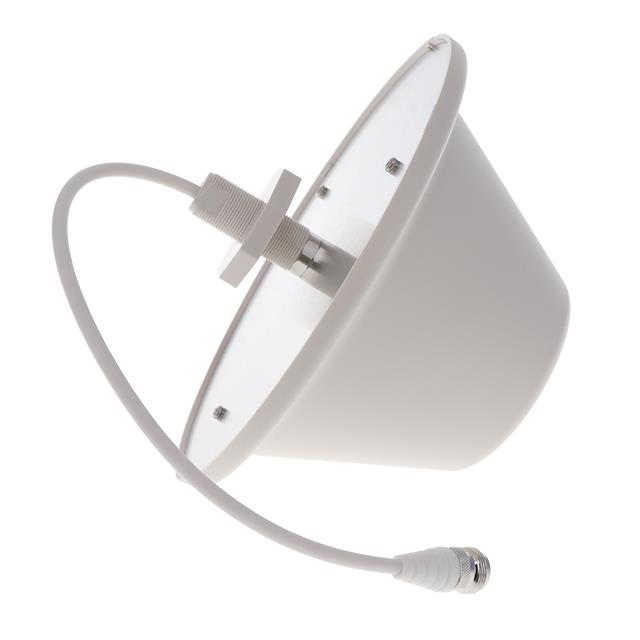

2195771 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
698-960;1710-2700; 3400-3800 MHZ
| Part | Ingress Protection | RF Family/Standard | Mounting Type | Height (Max) | Height (Max) | Applications | Frequency (Center/Band) | Frequency Range [Max] | Frequency Range [Min] | Termination | Power - Max [Max] | VSWR | Number of Bands | Gain | Frequency Group | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | IP65 | 802.15.4 Bluetooth Cellular | Ceiling Mount | 3.622 in | 92 mm | 2G 3G 4G 5G Bluetooth WLAN Zigbee™ | 2.205 GHz 3.6 GHz 829 MHz | 2.7 GHz 3.8 GHz 960 MHz | 1.71 GHz 3.4 GHz 698 MHz | 4.3/10 - Female | 150 W | 1.4 1.5 2.2 | 3 | 3.2 dBi 5.5 dBi 5.9 dBi 7 dBi | Wide Band | Dome |
