JF15AP1E Series
Manufacturer: NKK Switches
Beta
⌘K

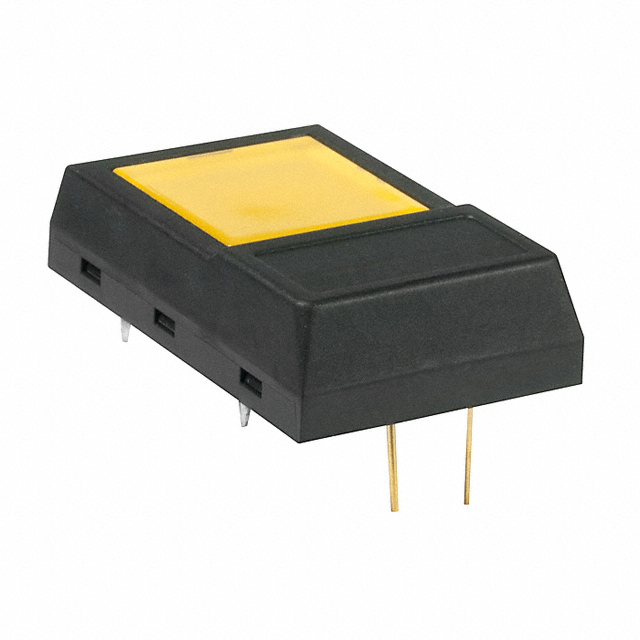

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 300 GF, 50MA AT 24VDC
| Part | Mechanical Life | Actuator Material | Switch Travel | Illumination Type, Color | Circuit | Illumination | Termination Style | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Switch Function | Contact Rating @ Voltage | Operating Force | Outline [x] | Outline [y] | Illumination Voltage (Nominal) | Features | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 500000 Cycles | Polyamide (PA) Nylon | 0.4 mm | LED Yellow | SPST-NO | Illuminated | PC Pin | 6.7 mm | Top Actuated | Off-Mom | 0.05 A 24 VDC | 300 gf | 22.8 mm | 17.7 mm | 2.1 VDC | Process Sealed | Square Button | -25 °C | 70 °C | Through Hole |
