8427-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .015-.025" .133"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish
Mill-Max Manufacturing Corp. 8427-0-15-01-30-02-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	2.54 µm	100 µin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Tin-Lead

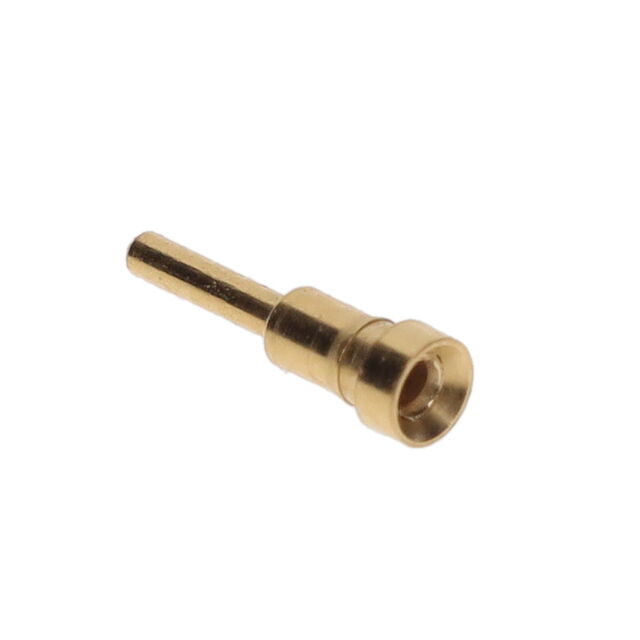

Mill-Max Manufacturing Corp. 8427-0-15-15-30-27-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	0.76 Ám	30 Áin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Gold
Mill-Max Manufacturing Corp. 8427-0-15-80-30-84-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	2.54 µm	100 µin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Tin
Mill-Max Manufacturing Corp. 8427-0-15-80-30-14-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	0.25 Ám	10 Áin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Gold
Mill-Max Manufacturing Corp. 8427-0-15-15-30-14-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	0.25 Ám	10 Áin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Gold
Mill-Max Manufacturing Corp. 8427-0-15-01-30-27-04-0	-55 C	125 °C	Standard Tail	4.45 mm	0.175 "	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	1.45 mm	0.057 in	0.255 in	6.48 mm	0.76 Ám	30 Áin	0.03 in	0.76 mm	Press-Fit	0.072 "	1.83 mm	Gold
