TPA4411 Series

80-mW, stereo, analog input headphone amplifier

Catalog

80-mW, stereo, analog input headphone amplifier

Part	Max Output Power x Channels @ Load	Supplier Device Package	Mounting Type	Features	Package / Case	Type	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]

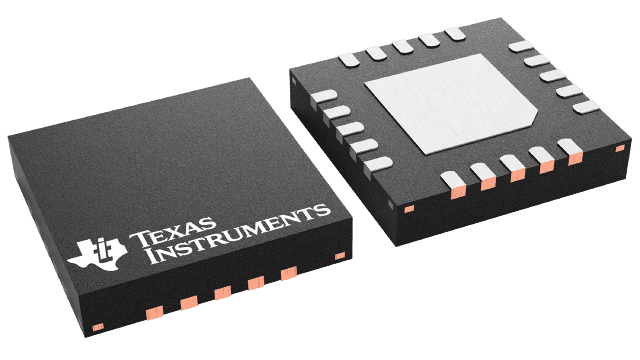

Texas Instruments TPA4411RTJRG4	2 channels 16 Ohm 100 mW	20-QFN (4x4)	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	20-WFQFN Exposed Pad	Class AB	Headphones 2-Channel (Stereo)	4.5 V	1.8 V	85 °C	-40 °C
Texas Instruments TPA4411YZHR	2 channels 16 Ohm 100 mW	16-DSBGA	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	16-UFBGA DSBGA	Class AB	Headphones 2-Channel (Stereo)	4.5 V	1.8 V	85 °C	-40 °C	2.24	2.16
Texas Instruments TPA4411MRTJRG4	2 channels 16 Ohm 100 mW	20-QFN (4x4)	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	20-WFQFN Exposed Pad	Class AB	Headphones 2-Channel (Stereo)	4.5 V	1.8 V	85 °C	-40 °C
Texas Instruments TPA4411MRTJR	2 channels 16 Ohm 100 mW	20-QFN (4x4)	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	20-WFQFN Exposed Pad	Class AB	Headphones 2-Channel (Stereo)	4.5 V	1.8 V	85 °C	-40 °C
Texas Instruments TPA4411MRTJT	2 channels 16 Ohm 100 mW	20-QFN (4x4)	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	20-WFQFN Exposed Pad	Class AB	Headphones 2-Channel (Stereo)	4.5 V	1.8 V	85 °C	-40 °C

Catalog

80-mW, stereo, analog input headphone amplifier

Key Features

• Space Saving Packages20-Pin, 4 mm × 4 mm Thin QFNPA4411 — Thermally Optimized PowerPAD™ PackageTTPA4411M — Thermally Enhanced PowerPAD™ Package16-Ball, 2.18 mm × 2.18 mm WCSPGround-Referenced Outputs EliminateDC-Bias Voltages on Headphone Ground PinNo Output DC-Blocking CapacitorsReduced Board AreaReduced Component CostImproved THD+N PerformanceNo Degradation of Low-Frequency Response Due to Output CapacitorsWide Power Supply Range: 1.8 V to 4.5 V80-mW/Ch Output Power into 16-at 4.5 VIndependent Right and Left ChannelShutdown ControlShort-Circuit and Thermal ProtectionPop Reduction CircuitryAPPLICATIONSNotebook ComputersCD / MP3 PlayersSmart PhonesCellular PhonesPDAsSpace Saving Packages20-Pin, 4 mm × 4 mm Thin QFNPA4411 — Thermally Optimized PowerPAD™ PackageTTPA4411M — Thermally Enhanced PowerPAD™ Package16-Ball, 2.18 mm × 2.18 mm WCSPGround-Referenced Outputs EliminateDC-Bias Voltages on Headphone Ground PinNo Output DC-Blocking CapacitorsReduced Board AreaReduced Component CostImproved THD+N PerformanceNo Degradation of Low-Frequency Response Due to Output CapacitorsWide Power Supply Range: 1.8 V to 4.5 V80-mW/Ch Output Power into 16-at 4.5 VIndependent Right and Left ChannelShutdown ControlShort-Circuit and Thermal ProtectionPop Reduction CircuitryAPPLICATIONSNotebook ComputersCD / MP3 PlayersSmart PhonesCellular PhonesPDAs

Description

The TPA4411 and TPA4411M are stereo headphone drivers designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost. The TPA4411 and TPA4411M are ideal for small portable electronics where size and cost are critical design parameters. The TPA4411 and TPA4411M are capable of driving 80 mW into a 16-load at 4.5 V. Both TPA4411 and TPA4411M have a fixed gain of 1.5 V/V and headphone outputs that have ±8-kV IEC ESD protection. The TPA4411 and TPA4411M have independent shutdown control for the right and left audio channels. The TPA4411 is available in a 2.18 mm × 2.18 mm WCSP and 4 mm × 4 mm Thin QFN packages. The TPA4411M is available in a 4 mm × 4 mm Thin QFN package. The TPA4411RTJ package is a thermally optimized PowerPAD™ package allowing the maximum amount of thermal dissipation and the TPA4411MRTJ is a thermally enhanced PowerPAD package designed to match competitive package footprints. The TPA4411 and TPA4411M are stereo headphone drivers designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost. The TPA4411 and TPA4411M are ideal for small portable electronics where size and cost are critical design parameters. The TPA4411 and TPA4411M are capable of driving 80 mW into a 16-load at 4.5 V. Both TPA4411 and TPA4411M have a fixed gain of 1.5 V/V and headphone outputs that have ±8-kV IEC ESD protection. The TPA4411 and TPA4411M have independent shutdown control for the right and left audio channels. The TPA4411 is available in a 2.18 mm × 2.18 mm WCSP and 4 mm × 4 mm Thin QFN packages. The TPA4411M is available in a 4 mm × 4 mm Thin QFN package. The TPA4411RTJ package is a thermally optimized PowerPAD™ package allowing the maximum amount of thermal dissipation and the TPA4411MRTJ is a thermally enhanced PowerPAD package designed to match competitive package footprints.
