Rte0 Series Series

Low Profile Rotary DIP Coded Rotary Switches 16 FLUSH SCRDRV 0.1A 30VDC LW PRO DIP SW

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Low Profile Rotary DIP Coded Rotary Switches 16 FLUSH SCRDRV 0.1A 30VDC LW PRO DIP SW

Part	Length [x]	Length [x]	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Contact Material	Circuit	Contact Finish	Actuator Type	Mounting Type	Voltage Rating	Actuator Level	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Height Above Board	Height Above Board
Littelfuse/Commercial Vehicle Products RTE1602N44	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm	16	Bronze	Hexadecimal	Gold	Rotary with Shaft	Through Hole	30 VDC	Raised	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	8.15 mm	0.321 in
Littelfuse/Commercial Vehicle Products RTE1000V14	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze	BCD	Gold	Rotary for Tool	Through Hole Right Angle	30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)			10
Littelfuse/Commercial Vehicle Products RTE1002G14	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze	BCD	Gold	Rotary with Shaft	Surface Mount	30 VDC	Raised	100 mA	Gull Wing	-25 °C	85 °C	Polyphenylene Sulfide (PPS)			10	8.18 mm	0.322 in
Littelfuse/Commercial Vehicle Products RTE1010R34	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze		Gold	Rotary for Tool		30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)			10

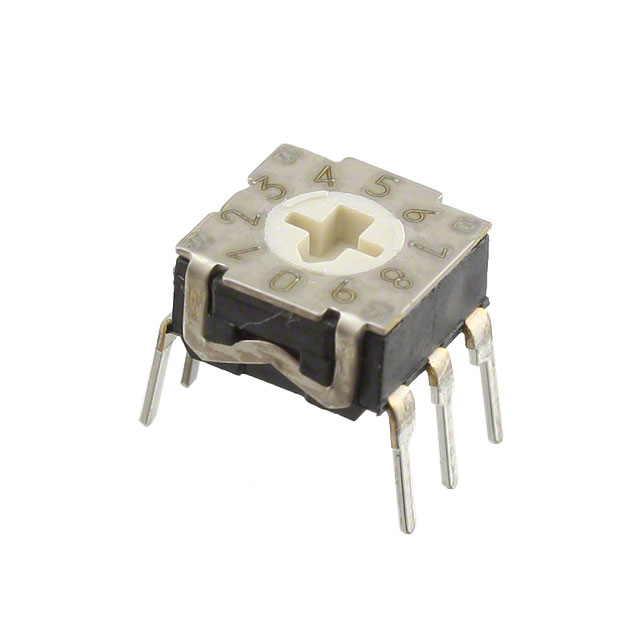

Littelfuse/Commercial Vehicle Products RTE1010N14	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze	BCD	Gold	Rotary for Tool	Through Hole	30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	4.25 mm	0.167 in	10
Littelfuse/Commercial Vehicle Products RTE1010R24	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze	BCD Complement	Gold	Rotary for Tool		30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)			10
Littelfuse/Commercial Vehicle Products RTE1002R14	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm		Bronze	BCD	Gold	Rotary with Shaft		30 VDC	Raised	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)			10

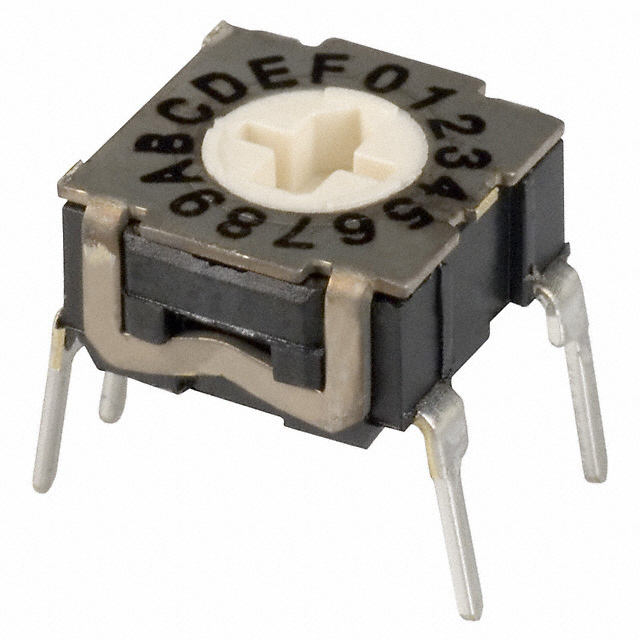

Littelfuse/Commercial Vehicle Products RTE1600N44	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm	16	Bronze	Hexadecimal	Gold	Rotary for Tool	Through Hole	30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	4.25 mm	0.167 in
Littelfuse/Commercial Vehicle Products RTE1611N44	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm	16	Bronze	Hexadecimal	Gold	Rotary with Shaft	Through Hole	30 VDC	Raised	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)				11.75 mm	0.463 in
Littelfuse/Commercial Vehicle Products RTE1610N44	0.291 in	7.4 mm	20000 Cycles	0.1 in	Full	2.54 mm	16	Bronze	Hexadecimal	Gold	Rotary for Tool	Through Hole	30 VDC	Flush Recessed	100 mA	PC Pin	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	4.25 mm	0.167 in

Catalog

Low Profile Rotary DIP Coded Rotary Switches 16 FLUSH SCRDRV 0.1A 30VDC LW PRO DIP SW

Key Features

• Miniature size with robust metal cover in black or silver nickel finish

• Large choice of codings

• Vertical or reverse versions

Description

For designers of timers, automation components, alarms, access controls and smoke detectors, C&K’s RTE series low profile rotary DIP switches are the preferred choice. These miniature switches are available with a robust metal cover (in either black or silver nickel finish), a large choice of codings – and in either a vertical or reverse version.
