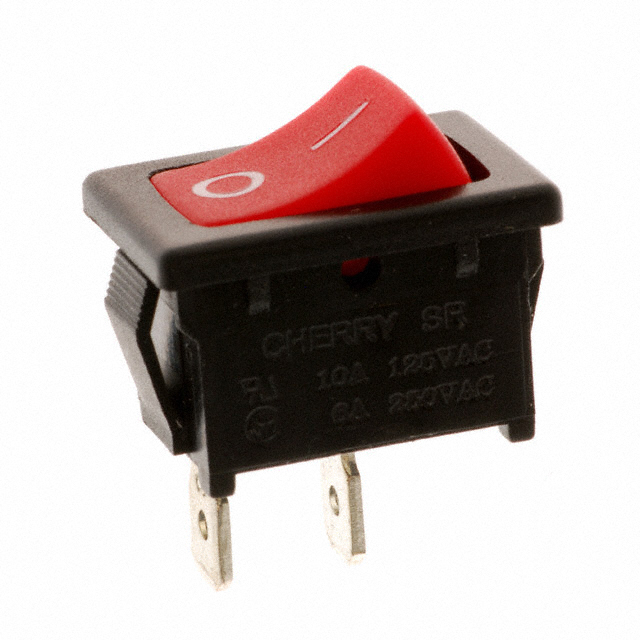

SRB22A2F Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Mechanical Life | Electrical Life | Termination Style | Circuit | Switch Function | Mounting Type | Actuator Marking | Color - Actuator/Cap | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | Quick Connect | SPST | On-Off | Panel Mount Snap-In | O - | Red | Concave (Curved) | 12.9 mm | 19.1 mm | 10 A | 125 V |
 ZF Electronics | 100000 Cycles | 6000 Cycles | Quick Connect | SPST | On-Off | Panel Mount Snap-In | O - | Black | Concave (Curved) | 12.9 mm | 19.1 mm | 10 A | 125 V |
