6EP33337 Series

Manufacturer: Siemens

Catalog

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Standard Number	Features	Input Type	DC Voltage - Input (Min) [Min]	Efficiency	DC Voltage - Input (Max) [Max]	Approval Agency	Applications	Power (Watts)	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]

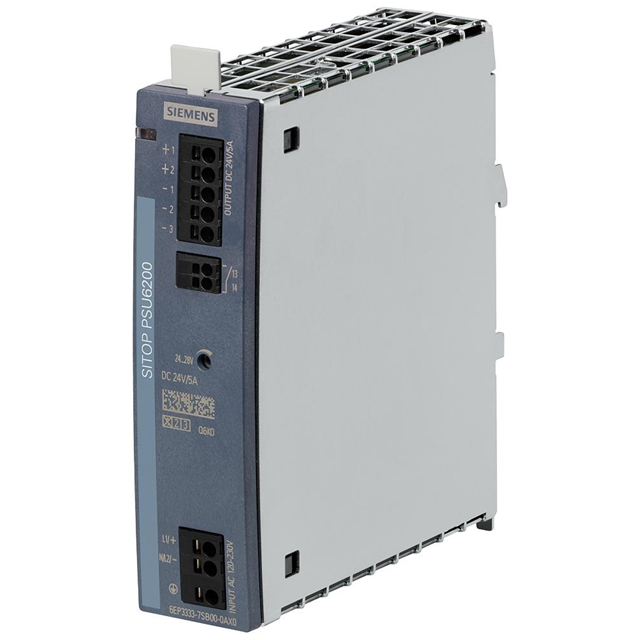

Siemens 6EP33337SB000AX0	60950-1; UL 508	Adjustable Output IP20 Universal Input	AC or DC	99 V	90.2 %	275 V	CB cCSAus CE CSA cUL cULus UL	Hazardous Locations Industrial ITE (Commercial)	120 W	24 V	1	70 °C	-25 °C	5 A	1.38 in	5.31 "	125 mm	4.92 in	35 mm	135 mm	240 VAC 264 VAC	85 VAC 100 VAC

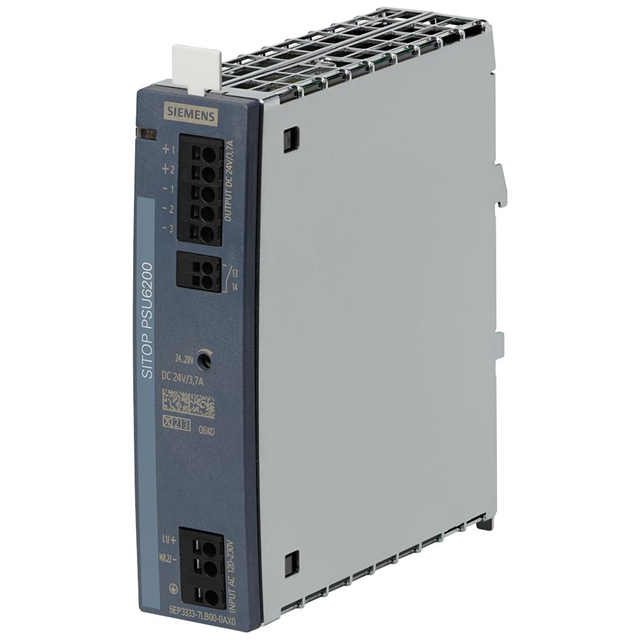

Siemens 6EP33337LB000AX0	60950-1; UL 508	Adjustable Output IP20 Universal Input	AC or DC	99 V	89.3 %	275 V	CB cCSAus CE CSA cUL cULus UL	Hazardous Locations Industrial ITE (Commercial)	89 W	24 V	1	70 °C	-25 °C		1.38 in	5.31 "	125 mm	4.92 in	35 mm	135 mm	240 VAC 264 VAC	85 VAC 100 VAC	3.7 A
