767025 Series

Catalog

MICT,707PLUG,228,ASSY,.025,REC ROHS COMPLIANT: NO

Part	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Mounting Type	Mated Stacking Heights [z]	Connector Type	Features	Contact Finish	Number of Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 767025-6	0.64 mm	0.025 in	17.75 mm	0.699 in	Surface Mount	17.96 mm 27 mm	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)	Gold	2	228	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 767025-1	0.64 mm	0.025 in	17.75 mm	0.699 in	Surface Mount	17.96 mm 27 mm	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)	Gold	2	38	30 Áin	0.76 Ám

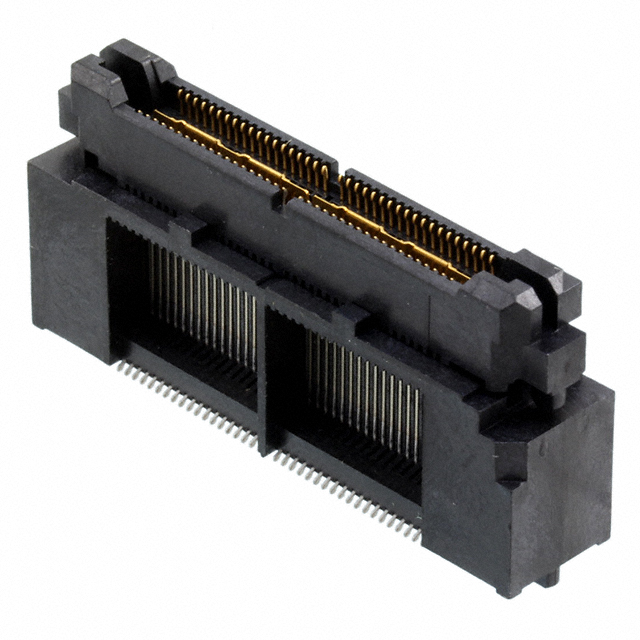

TE Connectivity AMP Connectors 767025-2	0.64 mm	0.025 in	17.75 mm	0.699 in	Surface Mount	17.96 mm 27 mm	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)	Gold	2	76	30 Áin	0.76 Ám
