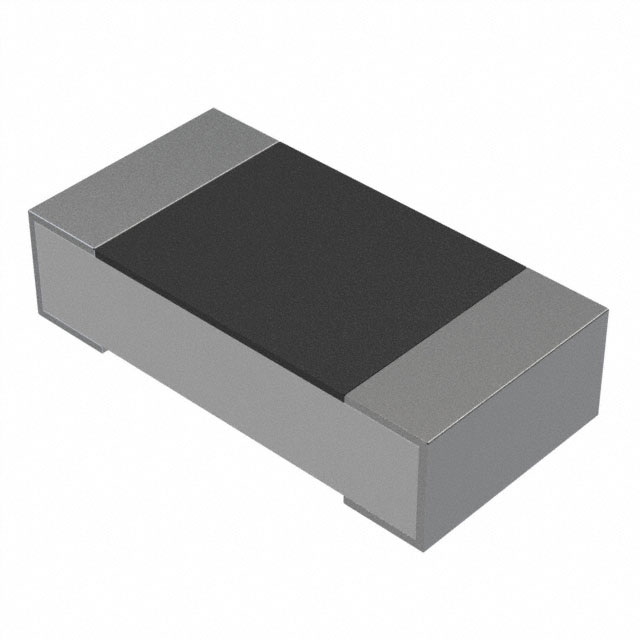

RGT Series

Manufacturer: Susumu

Catalog

THIN FILM RESISTORS - SMD 240K OHM 0.1% 1/16W AEC-Q200

Part	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Resistance	Features	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Size / Dimension [y]	Supplier Device Package	Ratings
Susumu RGT1608P-244-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.031 in	1.6 mm	0.8 mm	0.063 "	0.063 W	0.0625 W	240 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in	1608 Metric	0603

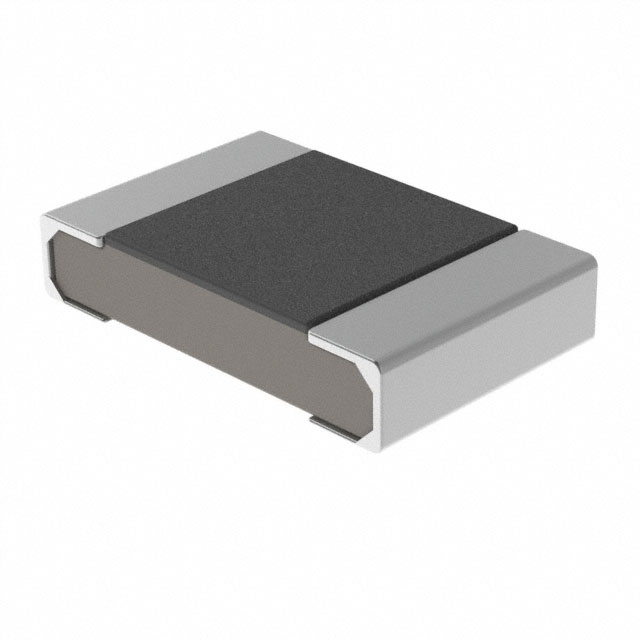

Susumu RGT2012P-3833-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	383 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT1608P-2101-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.031 in	1.6 mm	0.8 mm	0.063 "	0.063 W	0.0625 W	2.1 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in	1608 Metric	0603			AEC-Q200
Susumu RGT2012P-1742-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	17.4 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT2012P-7152-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	71.5 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT2012P-8452-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	84.5 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT1608P-560-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.031 in	1.6 mm	0.8 mm	0.063 "	0.063 W	0.0625 W	56 Ohms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in	1608 Metric	0603			AEC-Q200
Susumu RGT2012P-5762-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	57.6 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT2012P-1372-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	13700 Ohms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805	AEC-Q200
Susumu RGT2012P-4751-B-T5	Thin Film	175 °C	-55 C	2	0.1 %	0.049 "	2 mm		0.079 in	0.1 W	0.1 W	4.75 kOhms	Anti-Sulfur Automotive AEC-Q200	25 ppm/°C	0.55 mm	0.022 in		0805	1.25 mm	0805
