9412-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

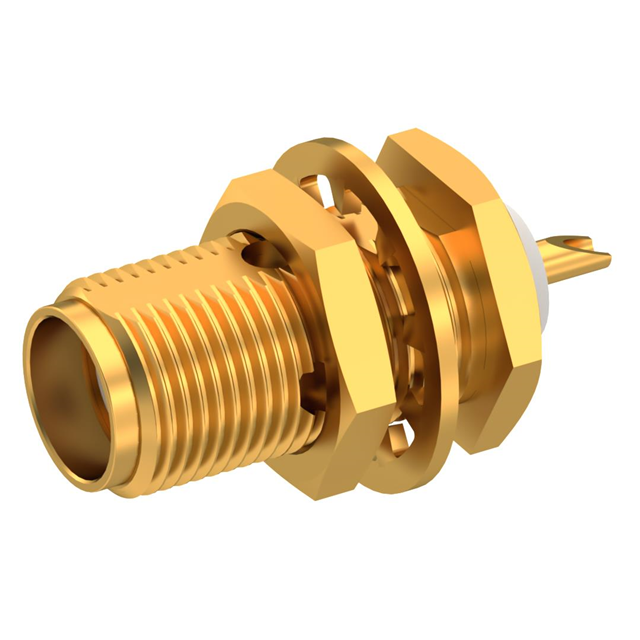

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Center Contact Plating | Number of Ports | Connector Type | Impedance | Mounting Feature | Housing Color | Contact Termination | Center Contact Material | Shield Termination | Connector Style | Features | Fastening Type | Frequency - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | Female Socket Jack | 50 Ohms | Bulkhead - Front Side Nut | Gold | Solder Cup | Beryllium Copper | Solder | SMA | Extended Insulation | Threaded | 18 GHz | Panel Mount |
